Technical Specifications
|
MOTHERBOARD |
|
|---|---|
| Form Factor | MicroATX |
| Processor Options |
Intel® Core™ i7-6700 Quad Core Intel® Core™ i5-6500 Quad Core Intel® Core™ i3-6100 Dual Core Intel® Pentium® G4400 Dual Core |
| Processor Socket | LGA 1151 |
| Chipset | Intel® Q170 Express Chipset |
| Memory |
Four 288-pin DDR4 SDRAM DIMM sockets DDR4 2133 MHz supported Minimum of 4 GB system memory; upgradeable to 16GB |
| Graphics |
Integrated graphics support for processors with Intel® Graphics Technology: •1 x DVI-I (Up to 1920 x 1200 @60Hz) •2 x HDMI (Up to 4096 x 2160 @24Hz) |
| Audio |
Intel® High Definition Audio: Realtek® ALC887 6-Channel High Definition Audio CODEC |
| Peripheral Interfaces |

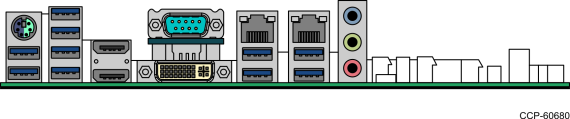

•10 USB 3.0 ports (back panel), 4 USB 2.0 ports (2 front panel and 2 optional expansion) •6 Serial ATA (6Gbps) interfaces • 1 serial port |
|
LAN Support |
2 x RJ45 10/100/1000 Mbits/s LAN subsystems |
|
Expansion |
One PCI Express x16 connector One PCI Express x4 connector One PCI Express x1 connector One conventional PCI connector |
|
Serial ATA RAID |
Board supports Intel Rapid Storage Technology which provides the following RAID levels: •RAID 0 – data striping •RAID 1 – data mirroring |
|
SYSTEM OPTIONS |
|
|---|---|
| Floppy | Not available |
| Optical Drive | CD-RW/DVD-RW Combo SATA |
| Storage
|
Std 500GB or 2TB 7200rpm SATA hard drive; optional 2nd HD available Up to four removable hard drives available in the MT only |
|
Std 120GB SATA SSD available; optional 2nd SSD available |
|
| Modems |
PCIe 56K controller based Faxmodem (Optional) |
| Serial and Parallel Card Expansion |
Options for 2 port or 4 portl serial add in cards (Optional) Option for 1 DB-25 female IEEE 1284 parallel port (Optional) |
|
OPERATING SYSTEMS |
|
|---|---|
| Windows 7 Professional (32 and 64 bit) | |
|
Windows Server 2012 R2 Standard (64 bit only) Windows Server 2008 R2 Standard (64 bit only) Windows Server 2012 R2 Foundation (64 bit only) Windows 10 |
|
|
CASE |
|
|---|---|
| Case dimension (D x W x H) | (SF) mm: 140 x 410 x 330 |
| (SF) Inch: 5.5" x 16.1" x 13" | |
| Drive configuration | 1 - CD-RW / DVD-RW combo drive (3 – External 5.25” bays) |
| (SF) 2 - 3.5" HDD (1 standard, 1 optional) | |
|
System cooling fans |
(SF) 2 x 60 mm ball bearing fans ( rear-mounted ) |
|
Front panel control |
Power switch, Power LED, HDD LED |
|
Kensington Lock |
Not supported |
|
Color |
Black |
|
Power Supply |
(SF) 300W Power Supply supporting Full Range and Active PFC |
|
SYSTEM |
|
|---|---|
| Weight | (SF) 14 lbs / 6.35 Kg |
| Storage Temp | 0º C – 70º C; 32º F – 158º F |
| Storage Requirements | Must be in original pack material in humidity controlled environment |
| Operating Temp | 0º C – 40º C; 32º F – 104º F |
| Startup Temp | 10º C – 35º C; 50º F – 95º F System components must be at room temp so condensation does not form |
| Humidity | 5% - 85% non-condensing |
|
Safety Certifications |
TUV |
|
EMI Certifications |
FCC Class A, CE, RCM |
|
Environmental Certifications |
RoHS compliant, WEEE |
