Mounting

The S500 unit can be easily mounted on a countertop with no additional hardware required, given that proper clearance, indicated previously, is followed. However, optional mounting brackets are available to free up counter space.

Optional Mounting Bracket

The S500-SF unit has an optional Under Counter Mounting Bracket kit (UCMB, part number 1670-K006). To mount the S500-SF to the mounting bracket, follow these steps:

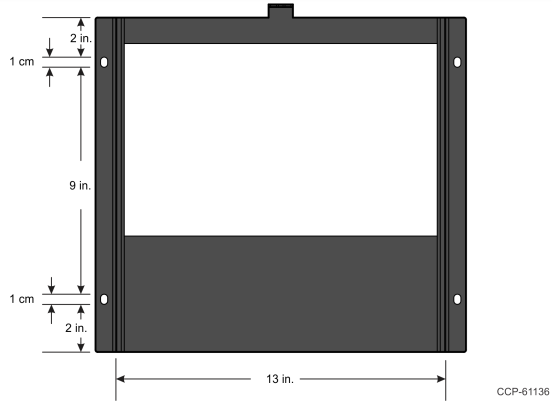

1.Install the Mounting Bracket under the counter.

Note:  The anchors are not shipped with the rack mount and must be obtained locally.

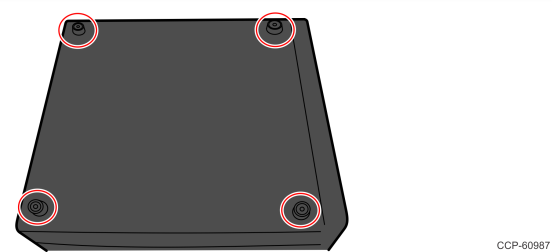

2.Remove the 4 rubber footings from the unit.

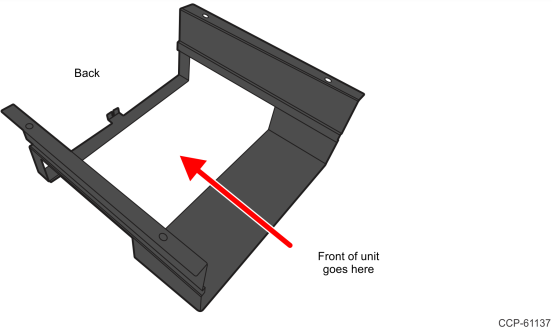

3.Slide in the S500-SF unit to the rack mount in the direction indicated below.
