Connecting the Display

The following images show connectivity options for NCR KT2200 Kitchen Touch Display configurations.

DVI Models

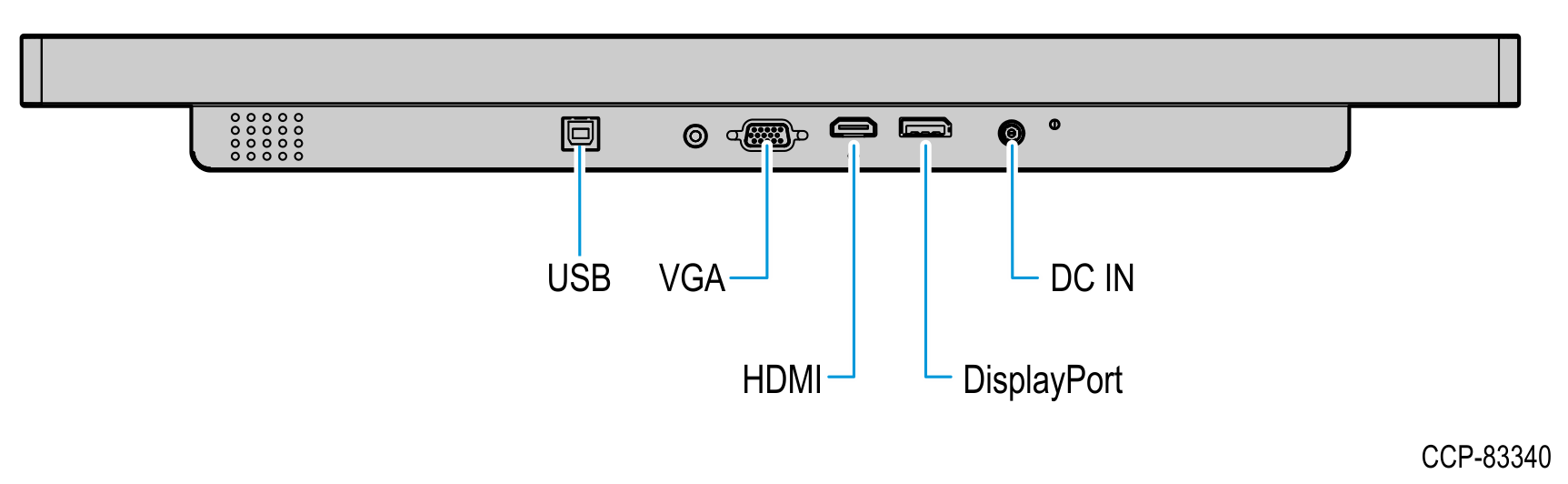

DP Models

To connect the NCR KT2200 to the NCR Kitchen Controller, do the following:

1.Turn off the Kitchen Controller and the Display.

2.Depending on the preferred input signal, connect one end of the input signal cable (DVI, VGA, HDMI, or DisplayPort) to the input signal connector on the Display, and then connect the other end to the input signal connector of the Kitchen Controller.

3.Connect one end of the USB cable to the USB port of the Display and the other end to the USB port of the Kitchen Controller.

4.Connect the power supply to the DC IN connector on the Display.

5.Connect to a wall outlet.

•For International installations, connect one end of the AC power cord to the AC connector on the power supply and the other end to a wall outlet.

•For US installations, connect the Power Transformer directly to a wall outlet.
