SpacePole with Expansion

Introduction

This kit provides the components to install an Expansion VESA Bracket.

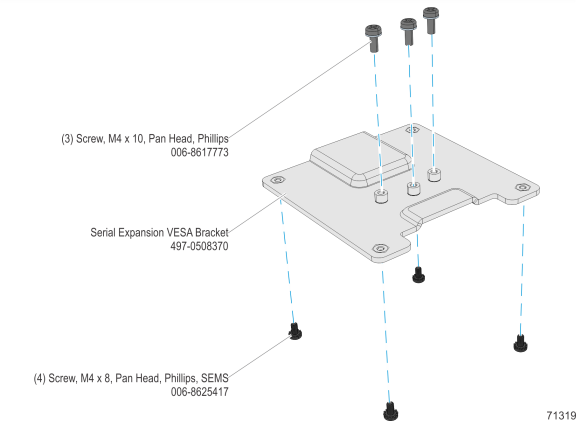

Kit Content





Installation Procedure

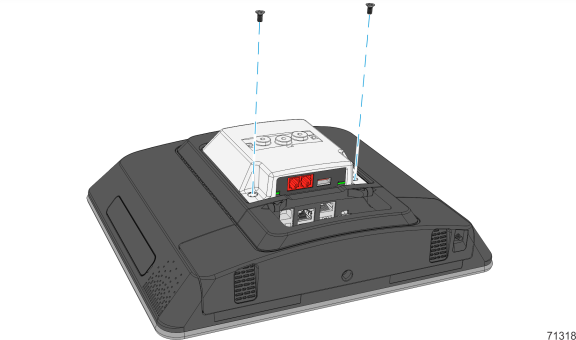

1.Remove the screws (2) that secure the expansion cover.

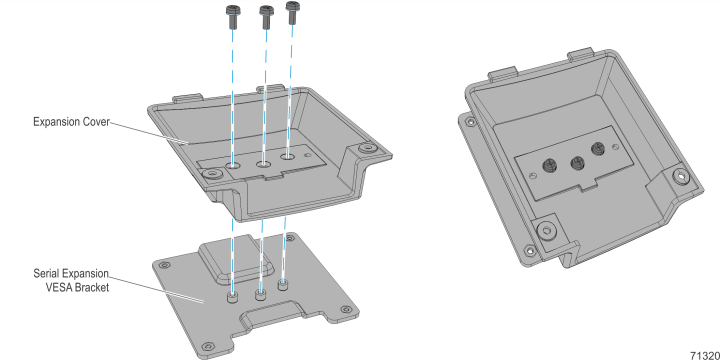

2.Mount the Expansion Cover on the Expansion VESA Bracket. Secure with M4 x10 screws (3).

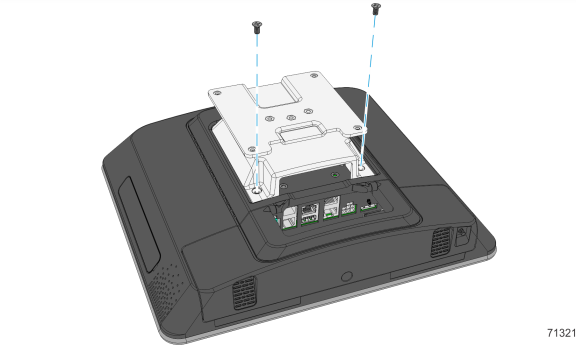

3.Install the Expansion assembly on the back of the P–Series POS display. Secure with screws (2).

4.Attach SpacePole mount with standard flat mounting plate to P–Series POS display with Expansion assembly. Secure with M4 x 8 screws (4).
