SpacePole Display Mount

Introduction

This kit provides the components to install a SpacePole Display Mount.

Kit Contents

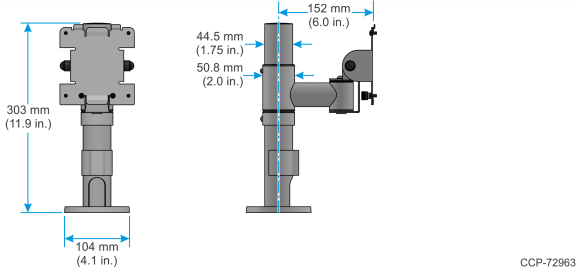

Dimensions

Installation Procedure

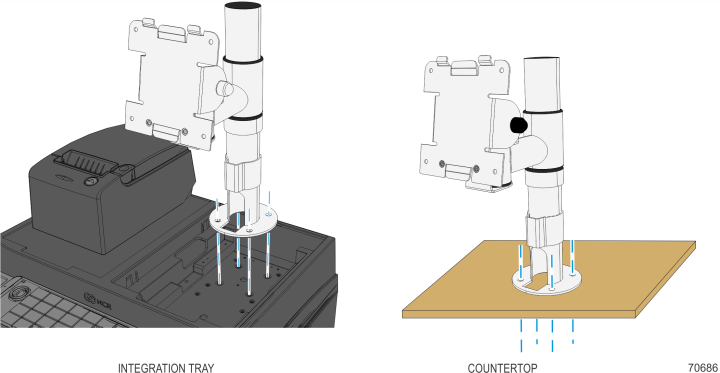

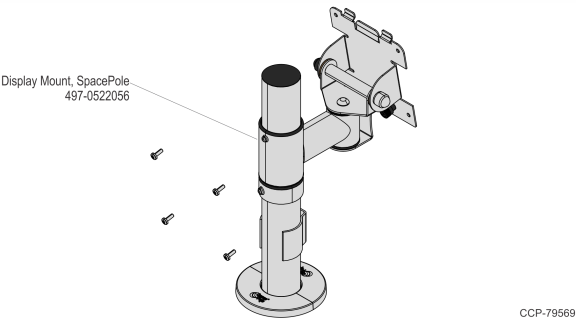

1.For countertop installation, drill four holes for the mounting bolts in the desired location. Use the SpacePole Mount base as a template for locating the holes. Install the SpacePole Display Mount and secure with screws (4) or bolts (4) included in the hardware pack or with your preferred fasteners.

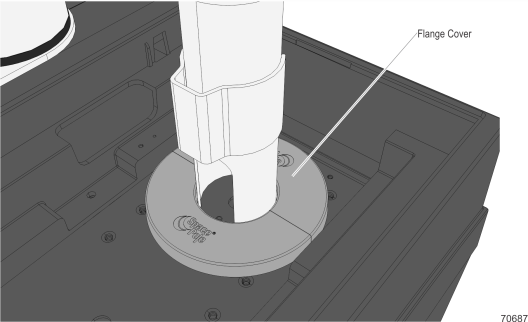

2.Install the Flange Cover.

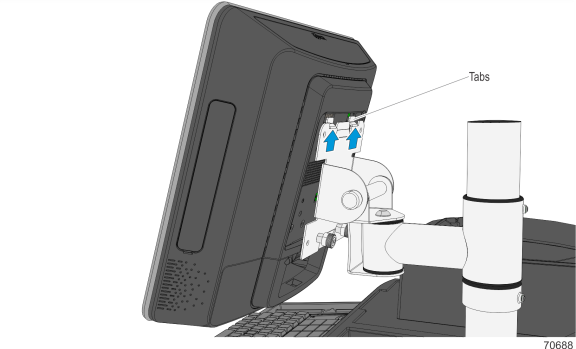

3.Attach the POS display to the SpacePole arm by sliding the bracket tabs into the head slots.

Note:  For XL Displays, connect the cables to the back of the display before mounting the display on the bracket.

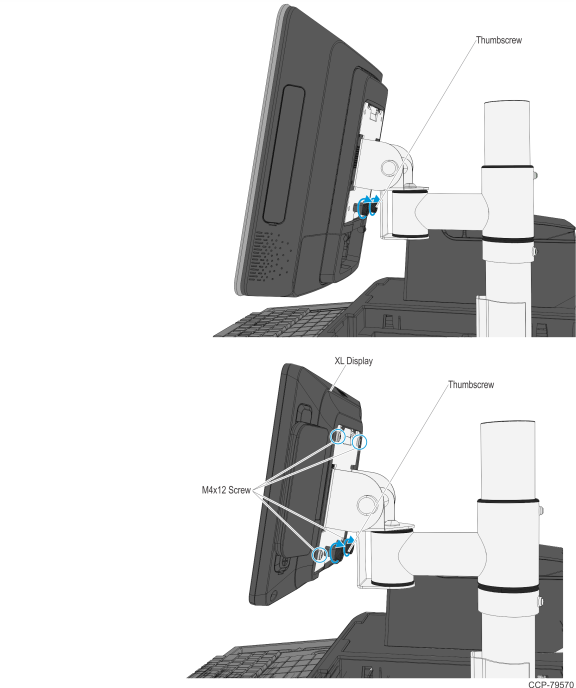

4.Tighten the (2) thumbscrews at the bottom of the bracket to secure the display. For XL Displays, tighten the (2) thumbscrews and install (4) M4x12 screws to secure the display.

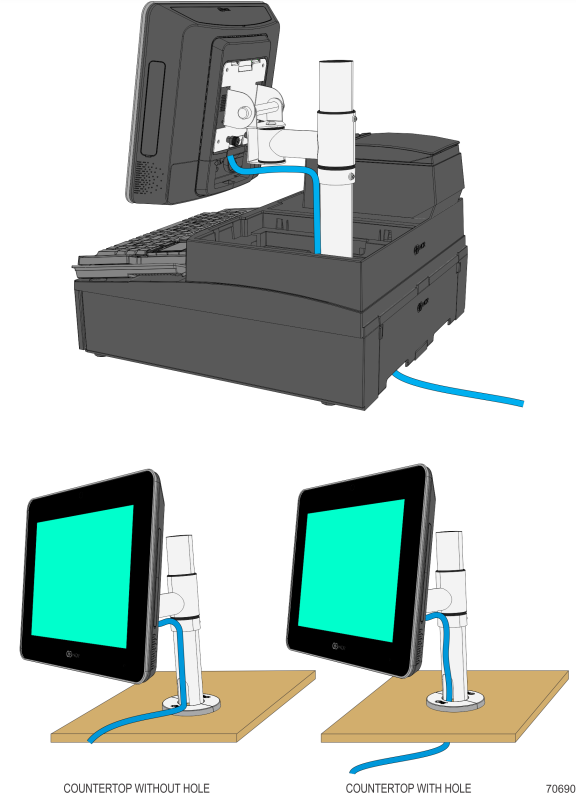

5.Route the cables from the display down the SpacePole Mount and out of the integration tray or the countertop.

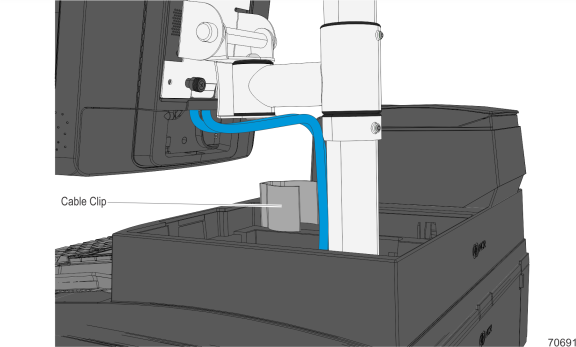

6.Install the Cable Clip to secure the cables.

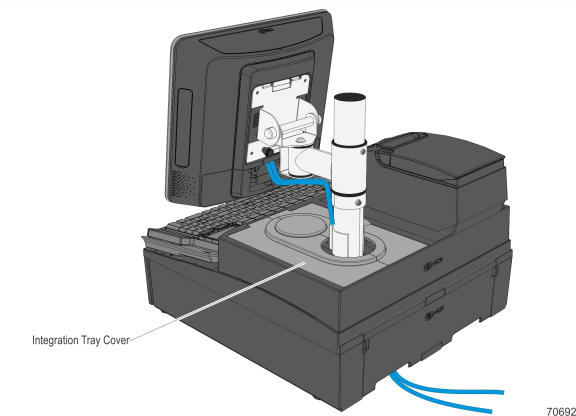

7.Add the integration tray cover.
