2D Scanner with Top Blank

Introduction

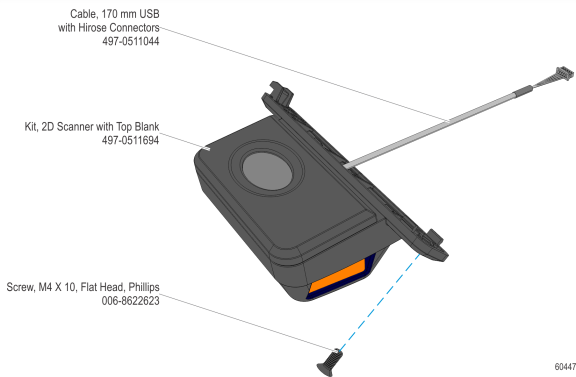

This kit provides the components to add a 2D Scanner with Top Blank.



Installation Procedure

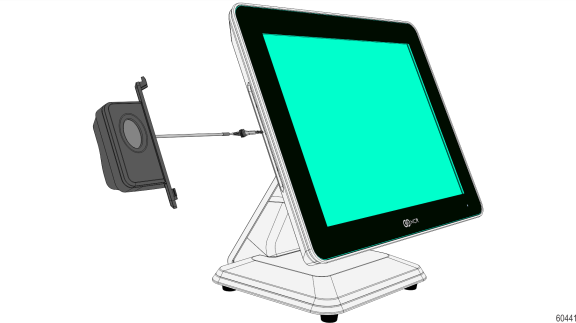

1.Remove the Blank Plate from the back housing.

2.Plug in 2D scanner cable into extension cable (1). Gently push cables into rear housing.

3.Hook the 2D scanner module into housing and snap into place.

4.Secure module with screw (1).
