24V PUSB + Dual RJ12 Expansion

Introduction

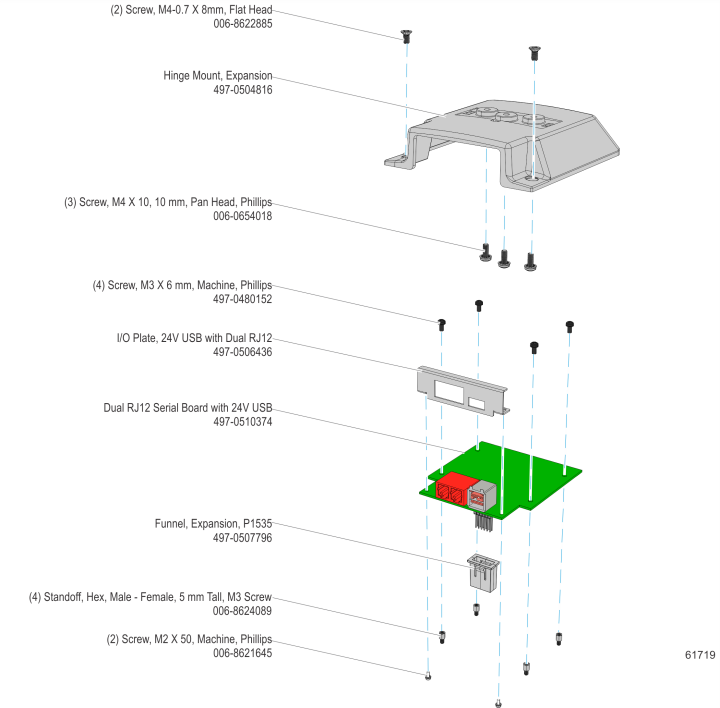

This kit provides the components to add a 24V PUSB + Dual RJ12 Expansion.

Installation Procedure

1.Install the Expansion Funnel and Standoffs (4) into the rear of the Ebox.

Caution:  Always use a soft material (cloth, foam) to protect the display screen when placing the terminal face down.

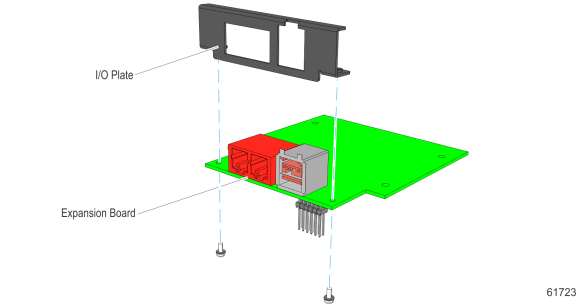

2.Install the I/O Plate to the Expansion Board and secure with screws (2).

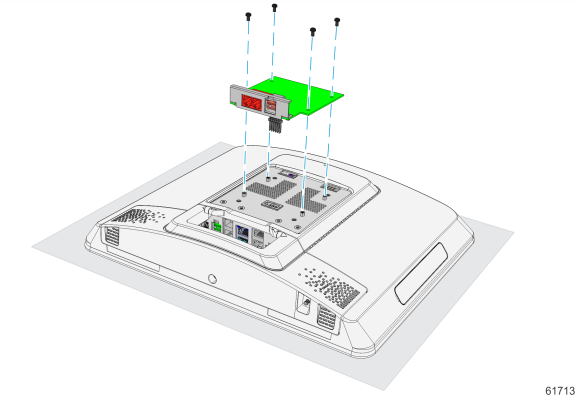

3.Install the Expansion Board assembly into the funnel and secure to standoffs with screws (4).

4.Secure the Hinge Mount to the hinge of the stand and secure with screws (3).

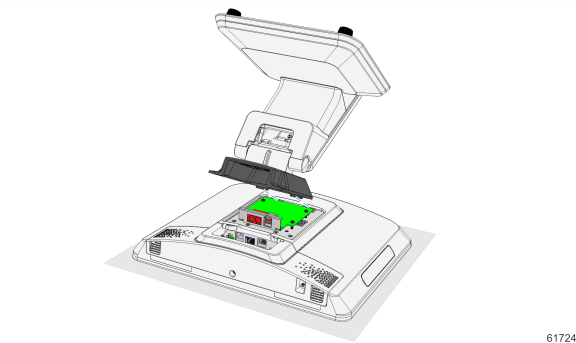

5.Install the Hinge Mount over the Expansion Board assembly.

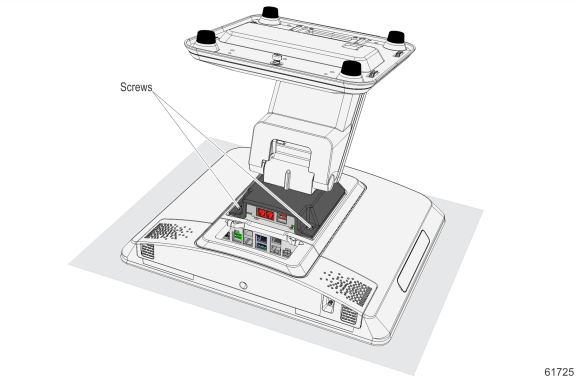

6.Secure to rear housing with screws (2).
