40GB/60GB/120GB Solid State Drive
Introduction
This kit provides a 40GB/60GB/120GB, 2.5" Solid State Drive (SSD) for a P1535/P1235 POS.
Kit Content
|
Kit Number |
Part Number |
Description |
|---|---|---|
|
7761–K240 |
006–8625385 |
Apacer 2.5" SATA, 40GB, APS25AF4040G-A4MCM-NCR |
|
7761–K241 |
006–8625426 |
Apacer 2.5" SATA, 60GB, APS25AF4060G-A4MCM-NCR |
|
7761–K243 |
006–8625150 |
SSD - 2.5" Apacer, SATA, 120GB |
Installation Procedure

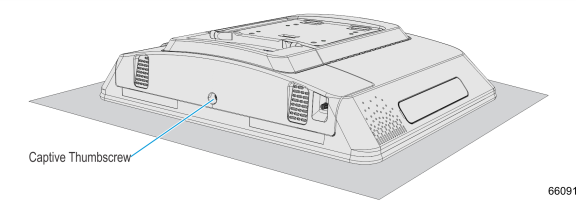

1.Loosen the captive thumbscrew (1) that secures the cable cover.

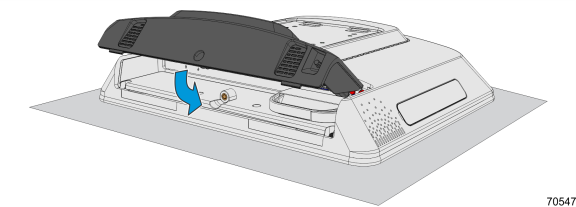

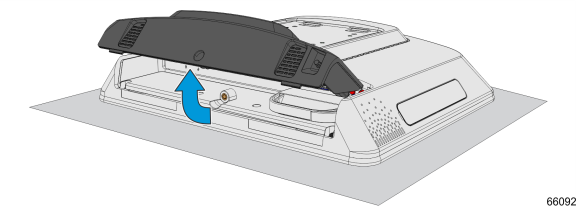

2.To open, press on the indentations in the cable cover to unlatch the cover and then pivot the cover open. Detach the cable cover.

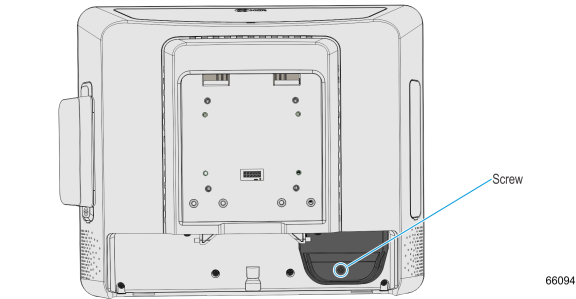

3.Remove the screw (1) that secures the Solid–State Cover.

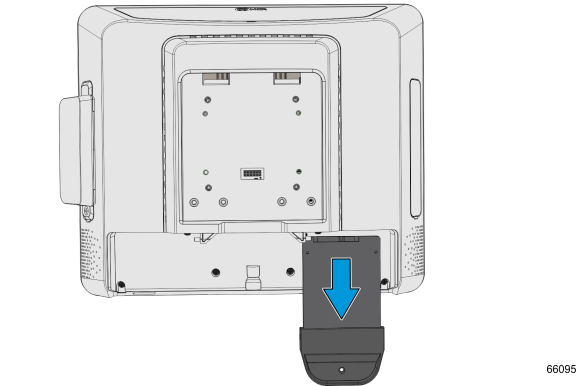

4.Remove the Solid–State Cover and SSD.

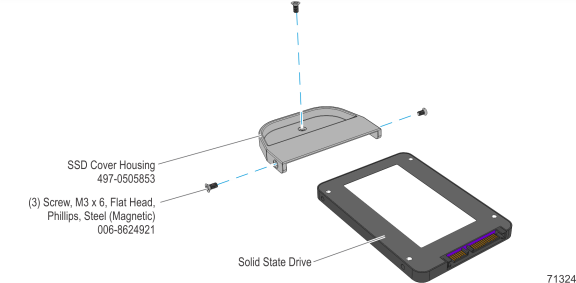

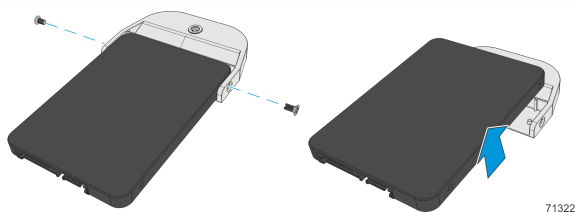

5.Remove the screws (2) that secure the SSD to the Solid–State Cover. Remove the SSD.

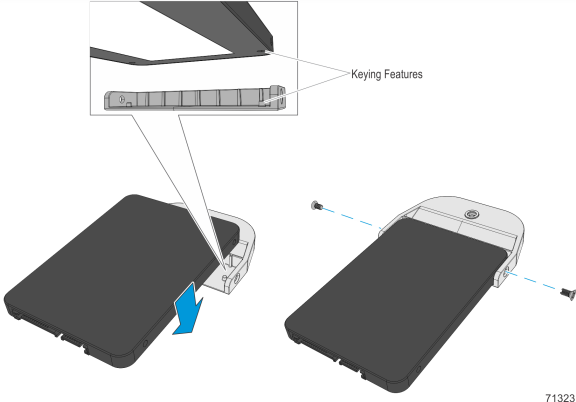

6.Mount the new 40GB/60GB/120 SSD to the Solid–State Cover through the keying features. Secure with screws (2).

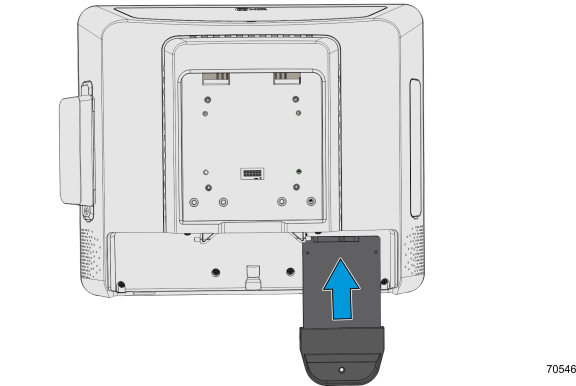

7.Install the Solid-State Cover and SSD.
8.Secure with screw (1).
9.Hook and snap back the Cable Cover.
10.Tighten the thumbscrew to secure the cover.
