Secure Countertop Bracket

Introduction

This kit provides a secure countertop bracket for a P–Series stand.

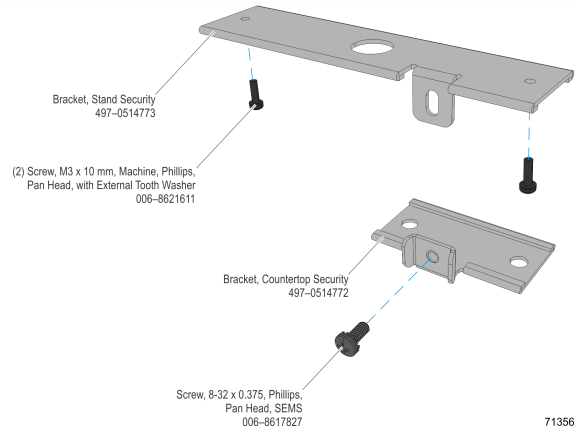

Kit Content



Installation Procedure

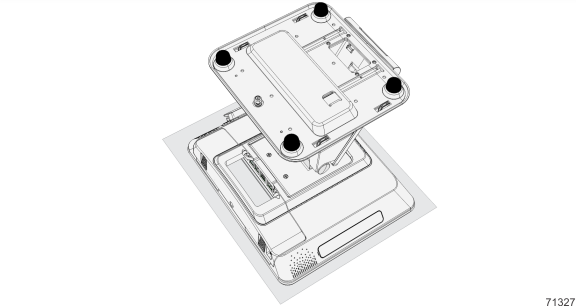

1.Lay the terminal face down on a flat surface.

Caution:  Always use a soft material (cloth, foam) to protect the display screen when placing the terminal face down.

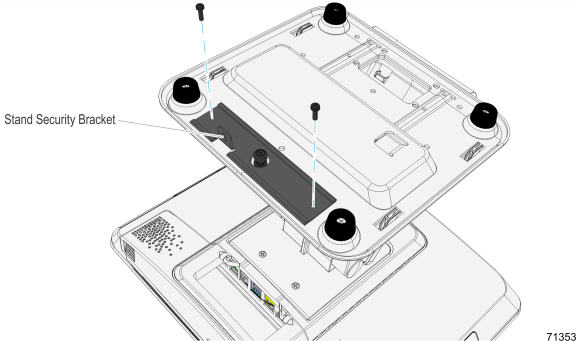

2.Mount the Stand Security Bracket on the base of the P–Series Stand. Secure with M3 x 10 screws (2).

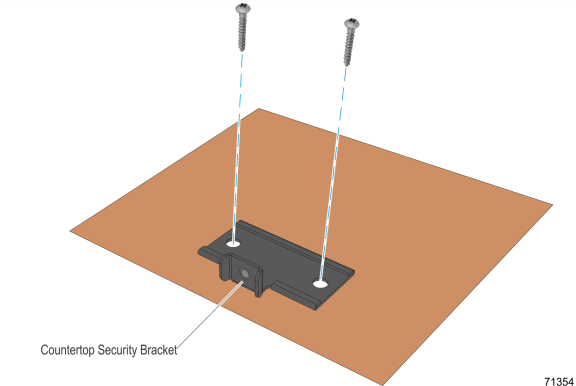

3.Install the Countertop Security Bracket to the countertop and secure with screws (2).

Note:  The screws are not included in the kit.

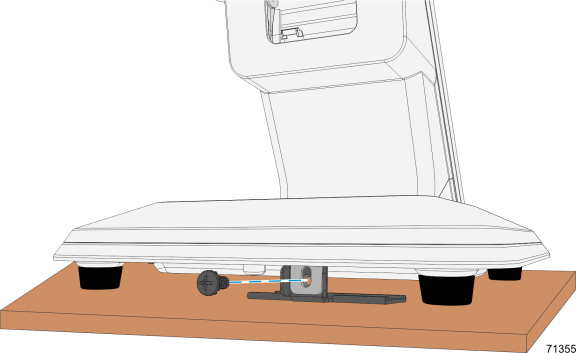

4.Mount the installed Stand Security Bracket to the Countertop Security Bracket and secure with screw.
