P–Series Stand Mount Scanner with Magnet

Introduction

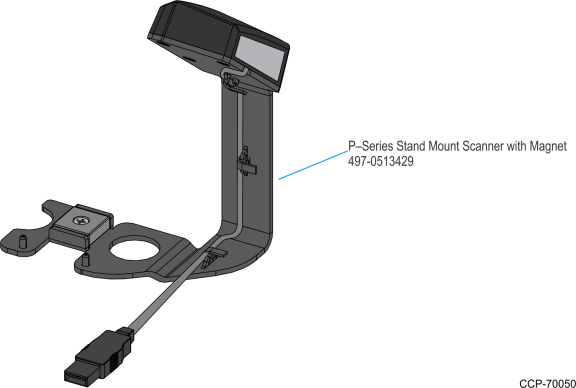

This kit provides a P–Series Stand Mount Scanner with magnet for the NCR P1535/P1235 POS.

Installation Procedure

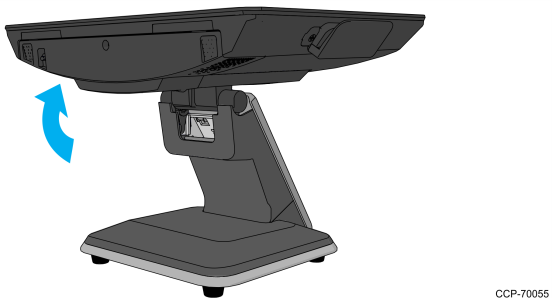

1.Pivot the display back.

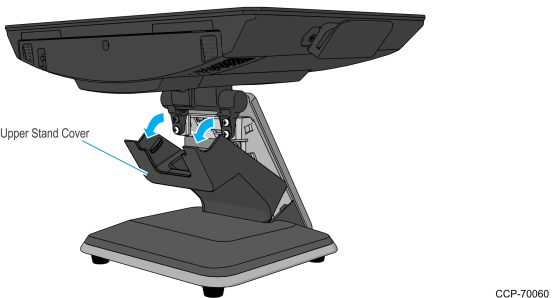

2.Remove the Upper Stand Cover by pivoting it away from the stand. The cover has a simple snap fit connection at the top.

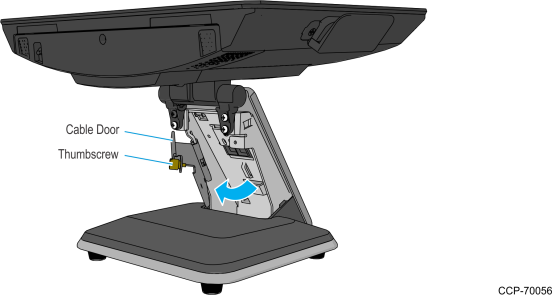

3.Loosen the thumbscrew to open the Cable Door.

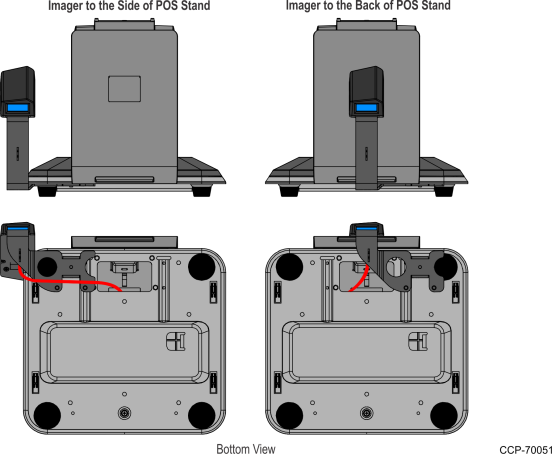

4.The Imager can be positioned to the side or to the back of the stand. Route the USB Cable up through the stand and mount the assembly in the desired position.

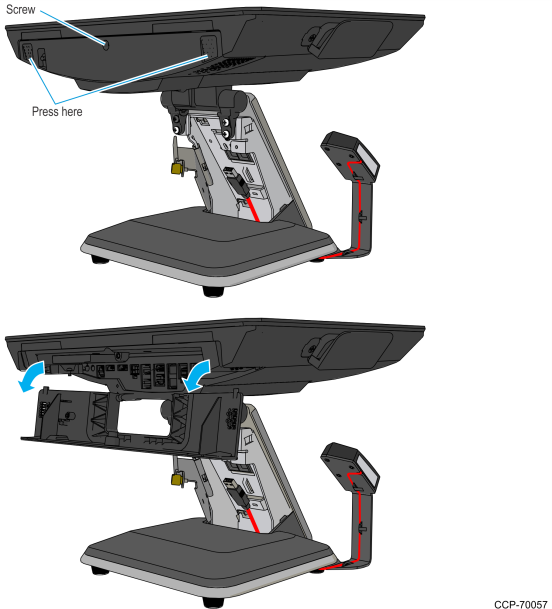

5.Loosen the screw on the Terminal Cable Cover. To open, press on the indentations in the Cable Cover to unlatch the cover and then pivot the cover open.

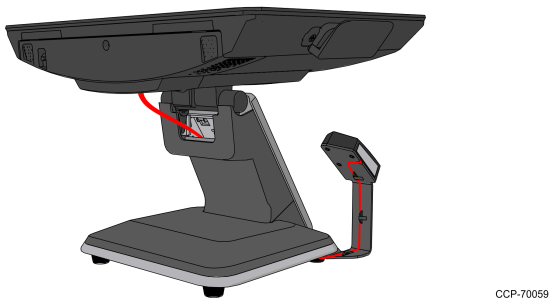

6.Route the cable up through the P-Series Stand and connect it to any available USB Port. Close and secure the Cable Door.

7.Re-install the Upper Stand Cover.

8.Close and secure the Cable Cover.
