2x20 Customer Display Integrated

Introduction

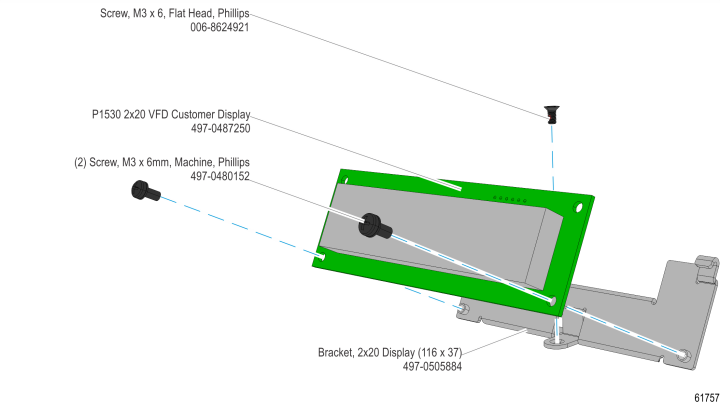

This kit provides the components to add a 2x20 Customer Display integrated to the P-Series Stand.



Installation Procedure

1.Open the Head Assembly.

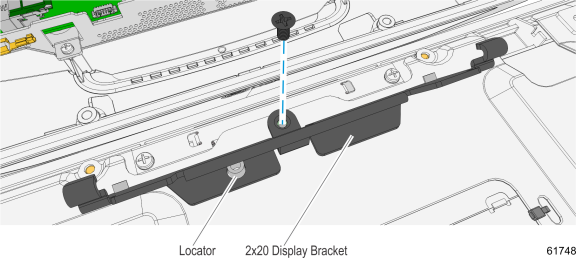

2.Secure the 2x20 Display Bracket to the sled with a screw.

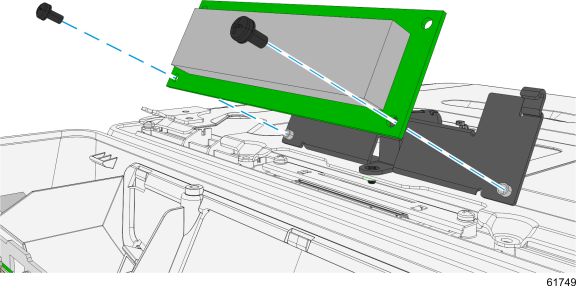

3.Secure the 2x20 Customer Display into the display bracket with screws (2).

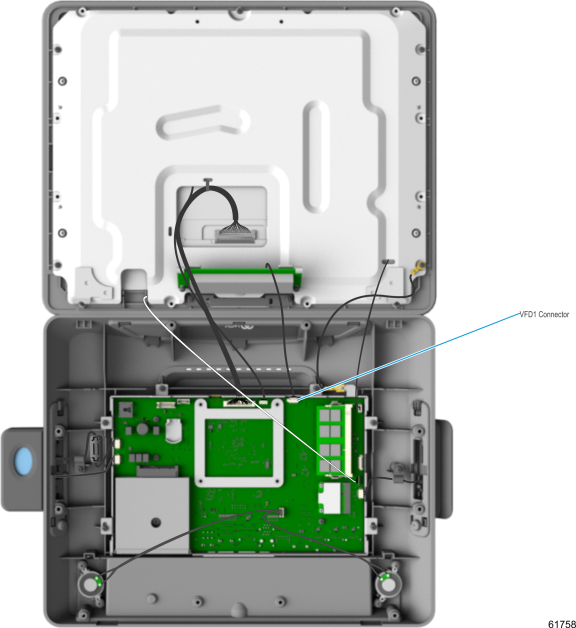

4.Connect the 2x20 Customer Display cable to the VFD1 connector on the motherboard.
