2x20 Customer Display on Arm Extension Mount

Introduction

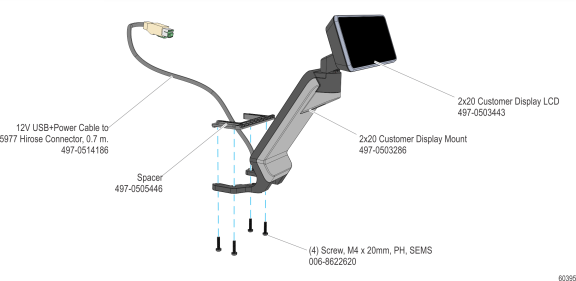

This kit provides the components to add a 2x20 customer display. The display is mounted on an Arm Extension connected to the back of the P-Series Stand.

Installation Procedure

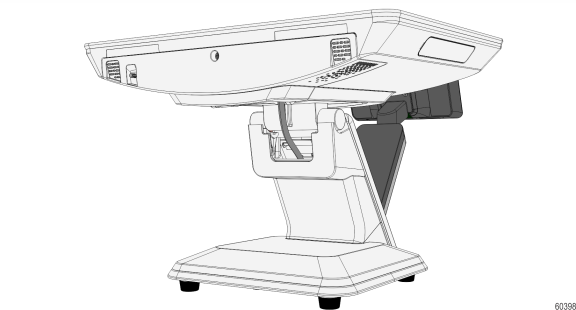

1.Pivot the display back.

2.Remove the Upper Stand Cover by pivoting it away from the stand. The cover has a simple snap fit connection at the top.

3.Loosen the thumbscrew to open the Cable Door.

4.Route the USB Cable up through the stand and install the Spacer and 2x20 Customer Display Assembly onto the bottom of the stand and secure with screws (4).

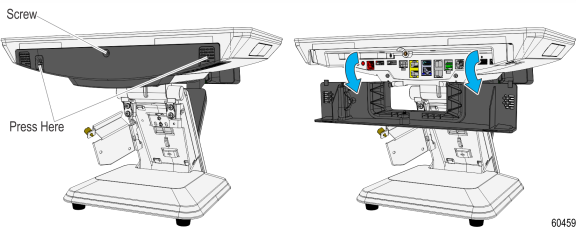

5.Loosen the screw on the Terminal Cable Cover. To open, press on the indentations in the Cable Cover to unlatch the cover and then pivot the cover open.

6.Route the cable up through the P-Series Stand and connect it to the 12V USB + Power connector. Close the Cable Door and tighten the thumbscrew to secure the cables.

7.Close and secure the Terminal Cable Cover.

8.Install the Upper Stand Cover.
