Bracket for Customer Display Integrated to P-Series Stand

Introduction

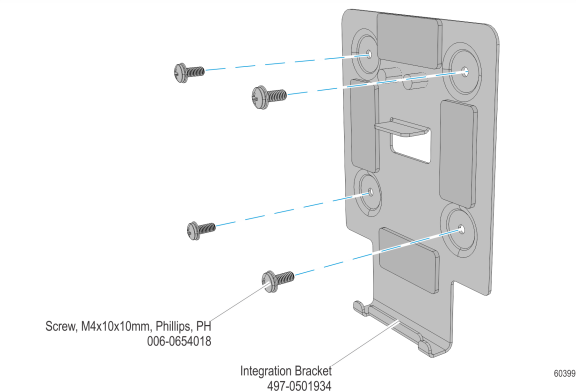

This kit provides a bracket for a customer display integrated to the P-Series Stand.



Installation Procedure

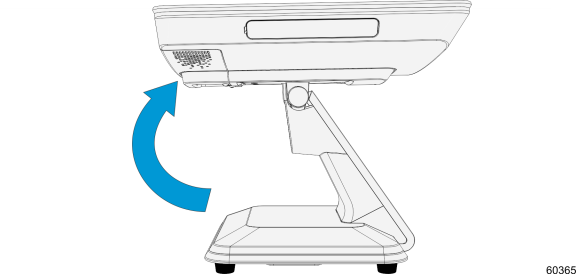

1.Pivot the terminal back.

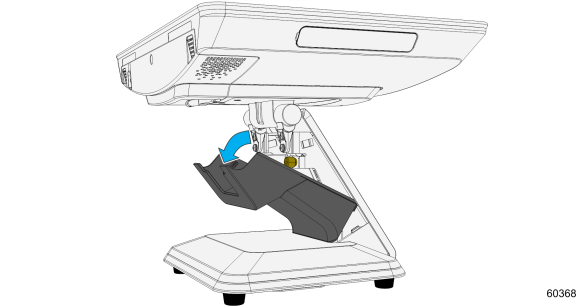

2.Remove the Upper Stand Cover by pivoting it away from the stand. The cover has a simple snap fit connection at the top.

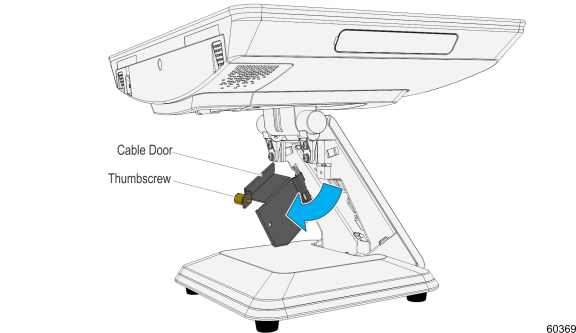

3.Loosen the thumbscrew to open the Cable Door.

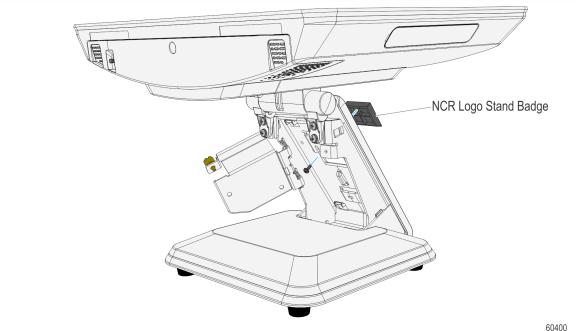

4.Remove the screw that secures the NCR Logo Stand Badge. Remove the badge.

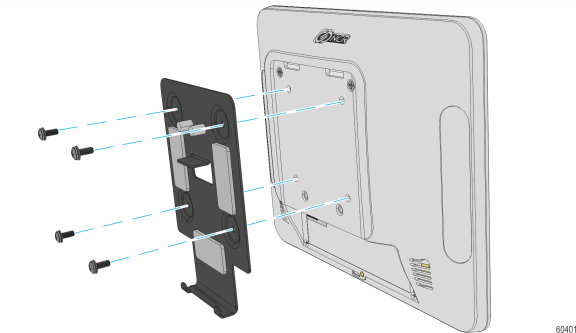

5.Install the Bracket onto the back of the customer display.

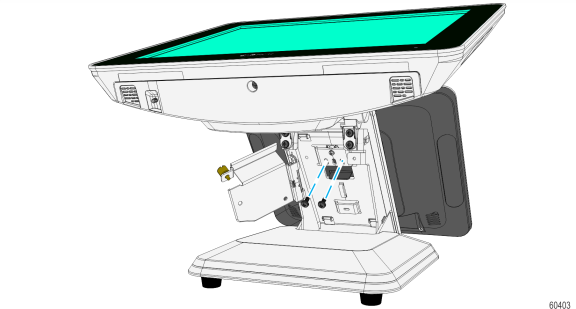

6.Install the customer display and bracket onto the back of the P-Series Stand.

a.Hook the bottom of the customer display bracket under the P-Series Stand.

b.Pivot the assembly into position on the P-Series Stand and secure it from the inside with screws (2).

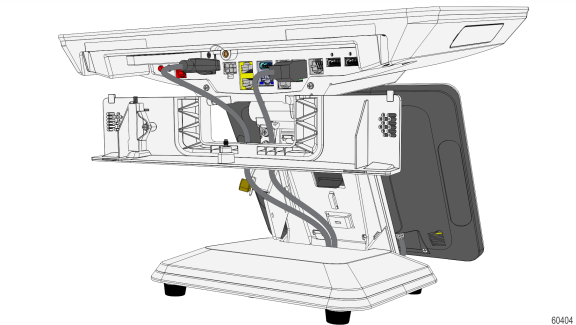

7.Connect the cables to the display and route the cables up through the P-Series Stand. Close and secure the Cable Door with the thumbscrew.

8.Connect the cables to the corresponding connector on the terminal.

9.Reinstall the Upper Stand Cover.
