Spacer for Customer Display Arm Extension

Introduction

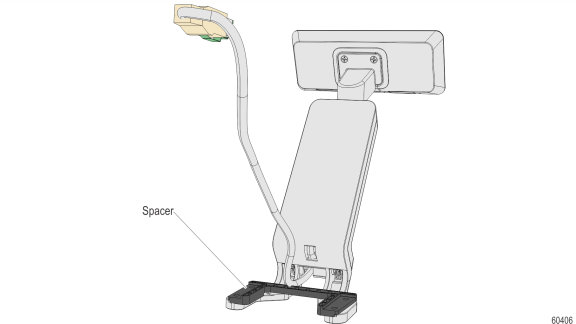

This kit provides the components to add a spacer to the arm extension mount when integrating an external customer display on the P1535/P1235 POS.

The spacer can be used on several kits and the procedure below discusses how to add it to the 7761-K460 kit as an example.



Installation Procedure

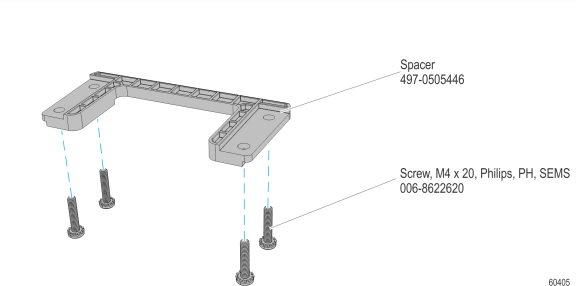

1.Place the spacer on top of the base of the customer display stand.

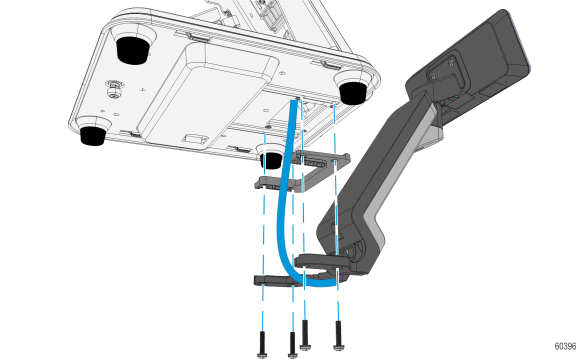

2.Route the cable from the customer display up through the P-Series stand and install the Spacer and customer display onto the bottom of the stand. Secure with screws (4).
