Biometrics with Bottom Blank

Introduction

This kit provides the components to add a Biometrics with Bottom Blank.





Installation Procedure

1.Remove the Blank Plate from the back housing.

2.Remove the Bottom Blank.

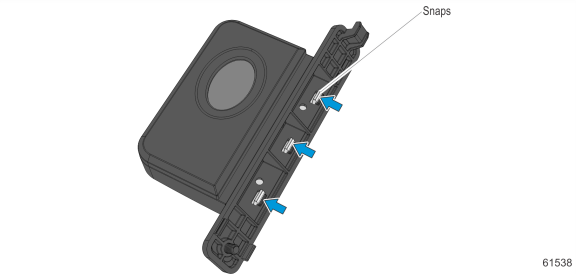

a.Disengage the snaps.

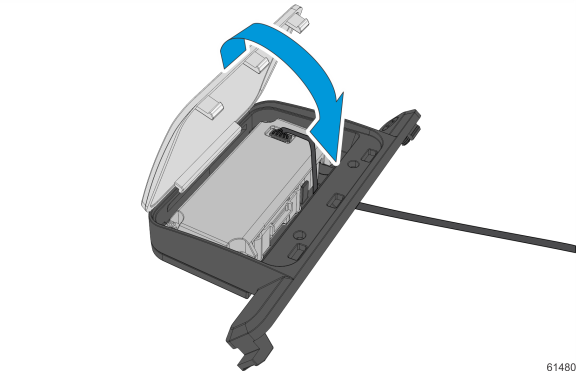

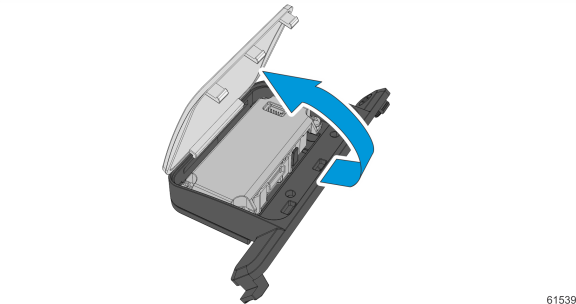

b.Rotate the Bottom Blank until it gets detached.

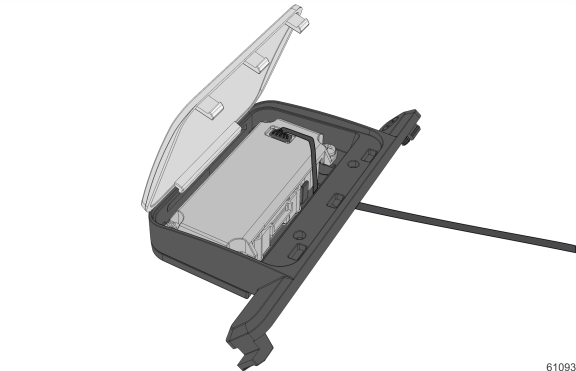

3.Route and connect the Biometrics cable through the opening in the bracket.

4.Snap the bottom blank into the bracket. Ensure the snaps are fully engaged.

5.Gently push the cable into the rear housing.

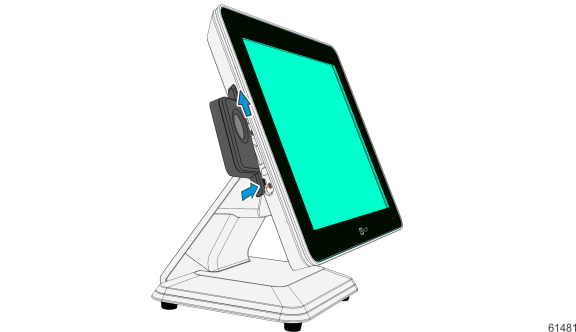

6.Hook the Biometrics module into the rear housing and snap into place.

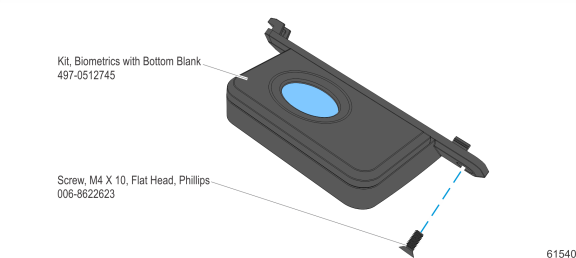

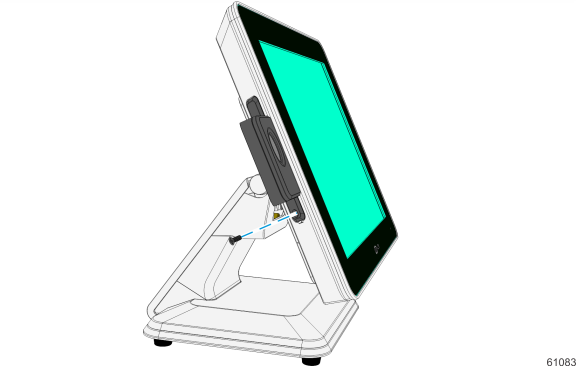

7.Secure the biometrics assembly with screw.
