Biometrics with Biokey with UV Light

Introduction

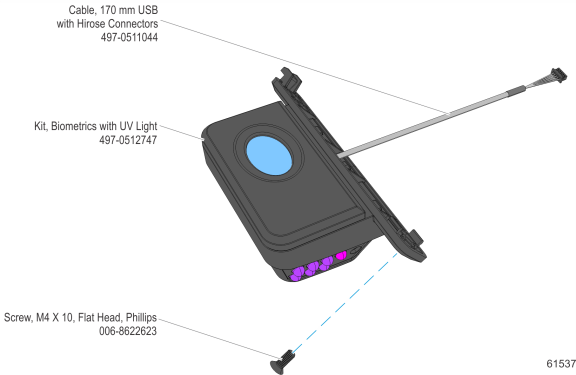

This kit provides the components to add a Biometrics with Biokey with UV Light.

Caution:  Avoid looking directly at UV lights.

Installation Procedure

1.Remove the Blank Plate, if any, from the rear housing.

2.Disengage the UV Light from the biometrics.

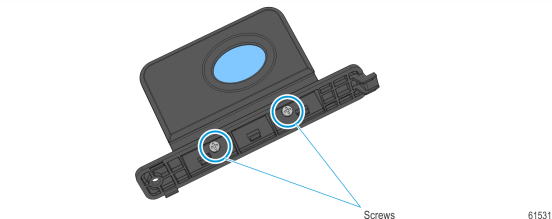

a.Remove the screws (2) that secure the UV Light.

b.Rotate the UV Light module until it is detached.

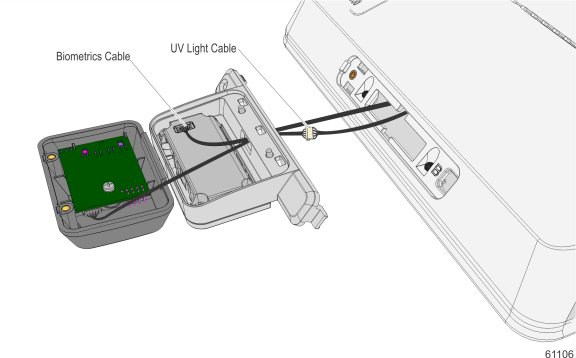

3.Route and connect the Biometrics and UV Light cables to the corresponding connectors through the opening in the bracket.

4.Snap the UV Light into the bracket. Ensure the snaps are fully engaged.

5.Secure with screws (2).

6.Gently push the biometrics and UV light cables into the rear housing.

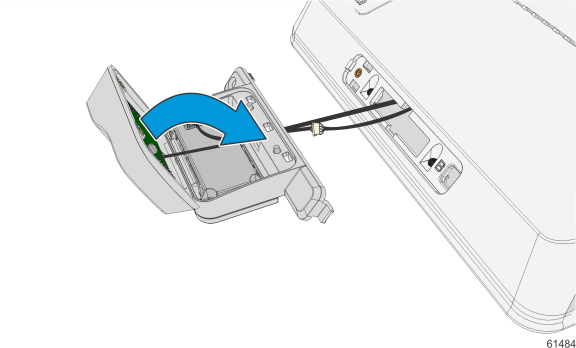

7.Hook the biometrics and UV Light assembly into rear housing and snap into place.

8.Secure with screw (1).
