Routing the Cable for MSR and Small PIN Pads

1.Route the MSR or PIN Pad cable toward the Ebox and connect it to the USB E port.

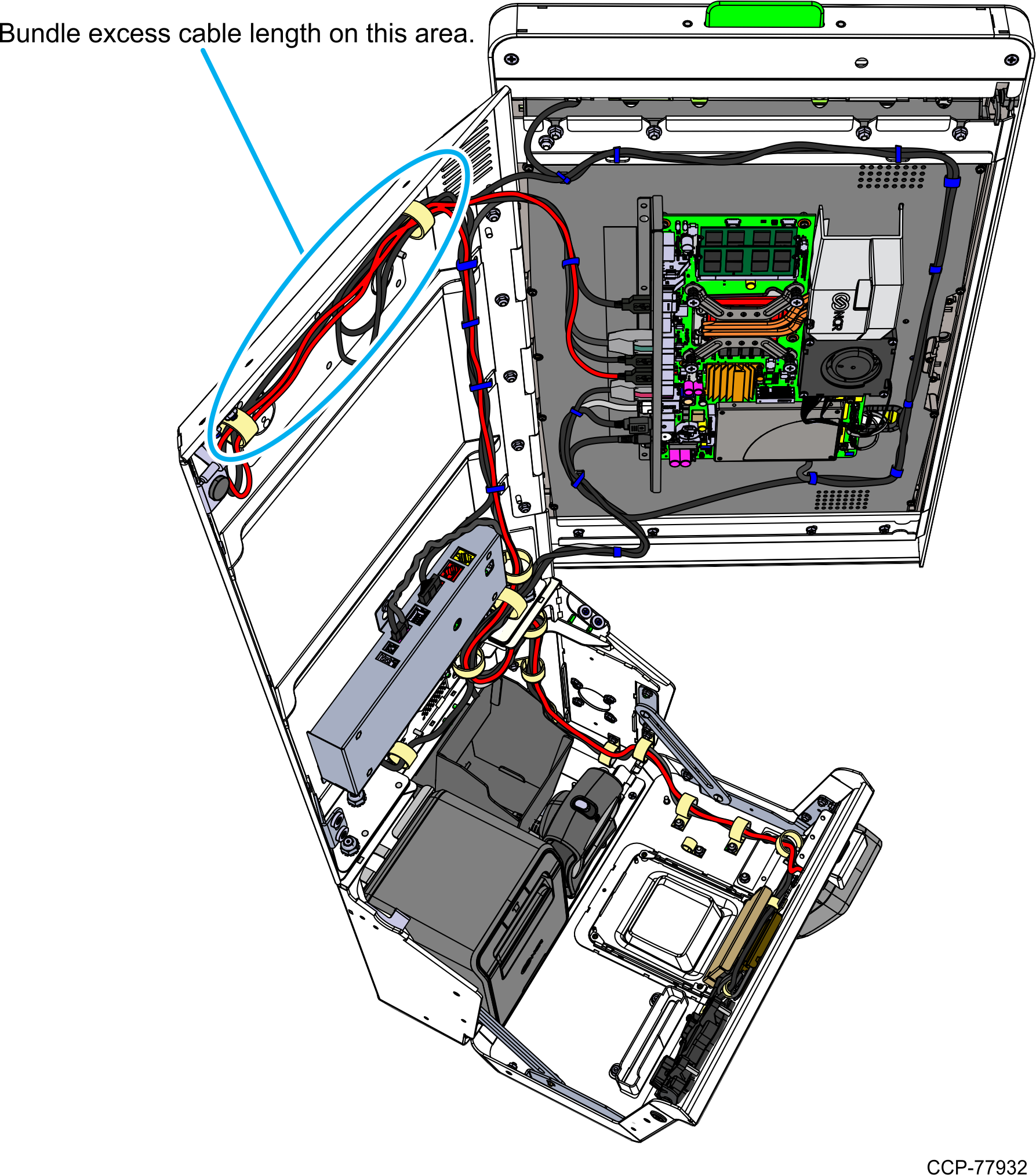

Note:  Route and bundle extra cable length on the area indicated in the following image.

2.Secure the cable with cable ties and p-loops along its route.
