Turning the Kiosk ON and OFF

Caution:  The Motherboard ON/OFF Switch is a logic switch only. The AC line voltage primaries are live at all times when the AC Power Cable is connected to a power source. Therefore, disconnect the AC Power Cable to totally remove power from the terminal.

Turning ON the Kiosk

1.Connect the AC Power Cable to an AC power source.

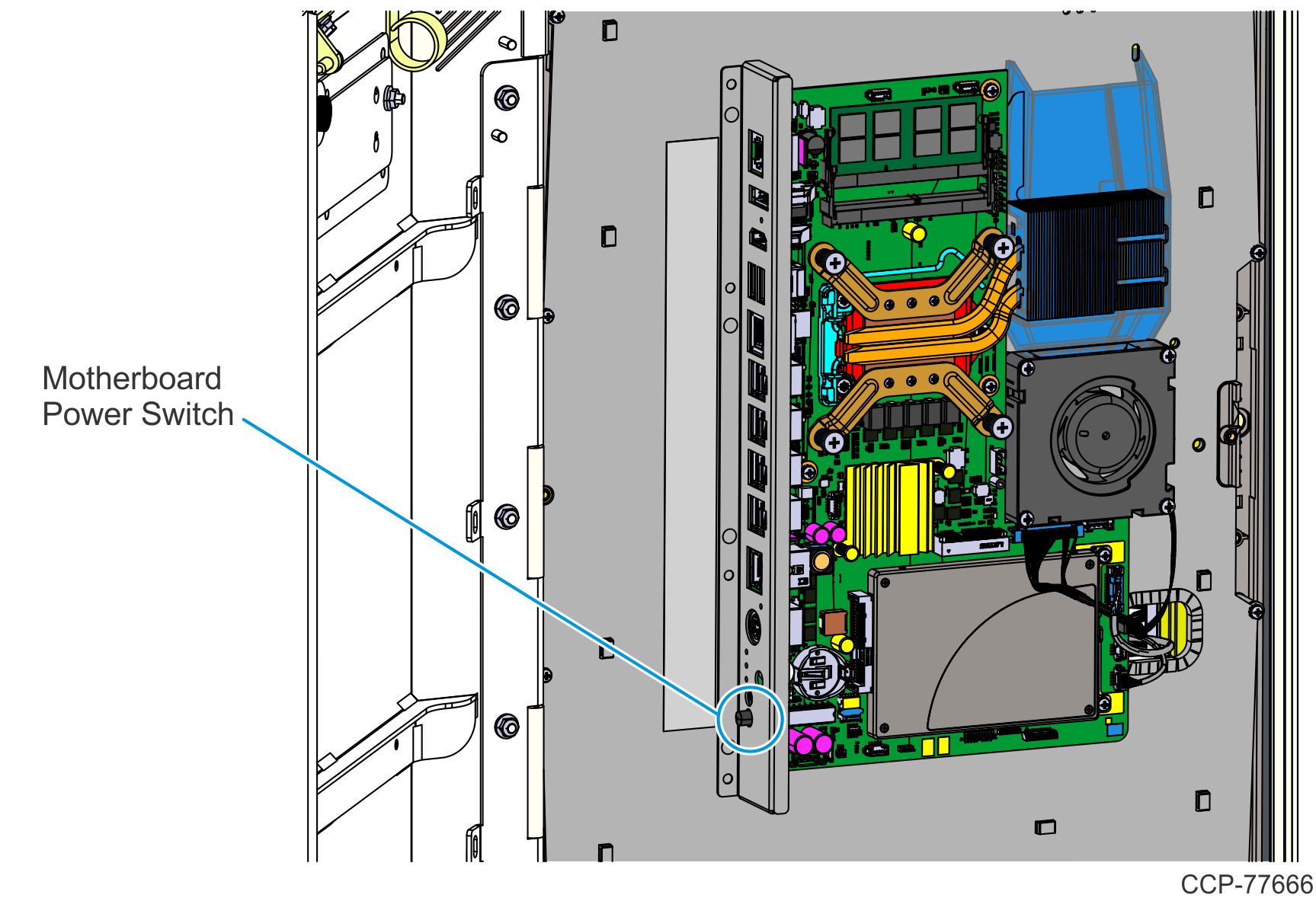

2.If the kiosk does not power up, press the Motherboard Power Switch to turn the kiosk ON.

Turning OFF the Kiosk

1.Shut down the system application.

2.Shut down the kiosk operating system. At the bottom, left–hand side,
select Start→Shut down.

3.Unplug the AC Power Cable from the AC power source.
