Mounting Dimensions

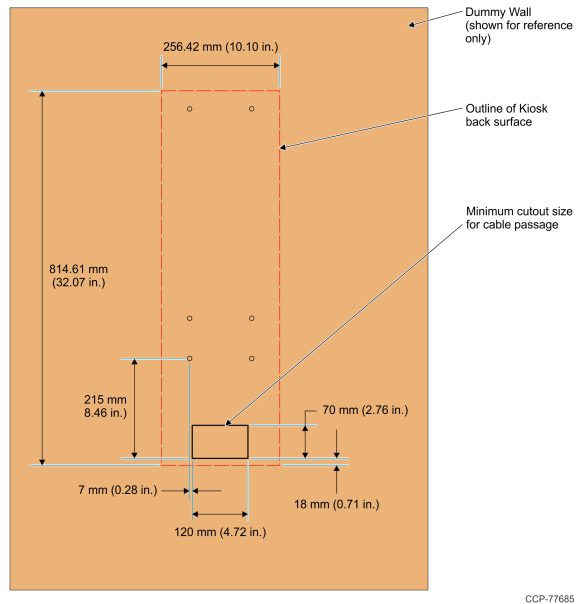

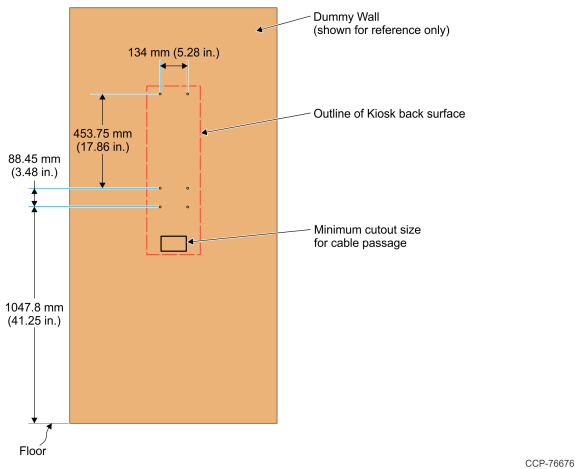

This section provides recommended dimensions for the Power/LAN cable passage cutout (if cables are routed through the cable access cutout on the wall) and recommended height from the floor to bolt holes.
