Verifone MX915

1.Inside the Door Cabinet, remove the two wing nuts that secure the PIN Pad Panel to the kiosk and then remove the panel.

2.Remove the two screws securing the PIN Pad Plate to the Fascia Panel and then remove the plate.

3.Slowly drop the PIN Pad cable through the cable access hole on the Fascia Panel.

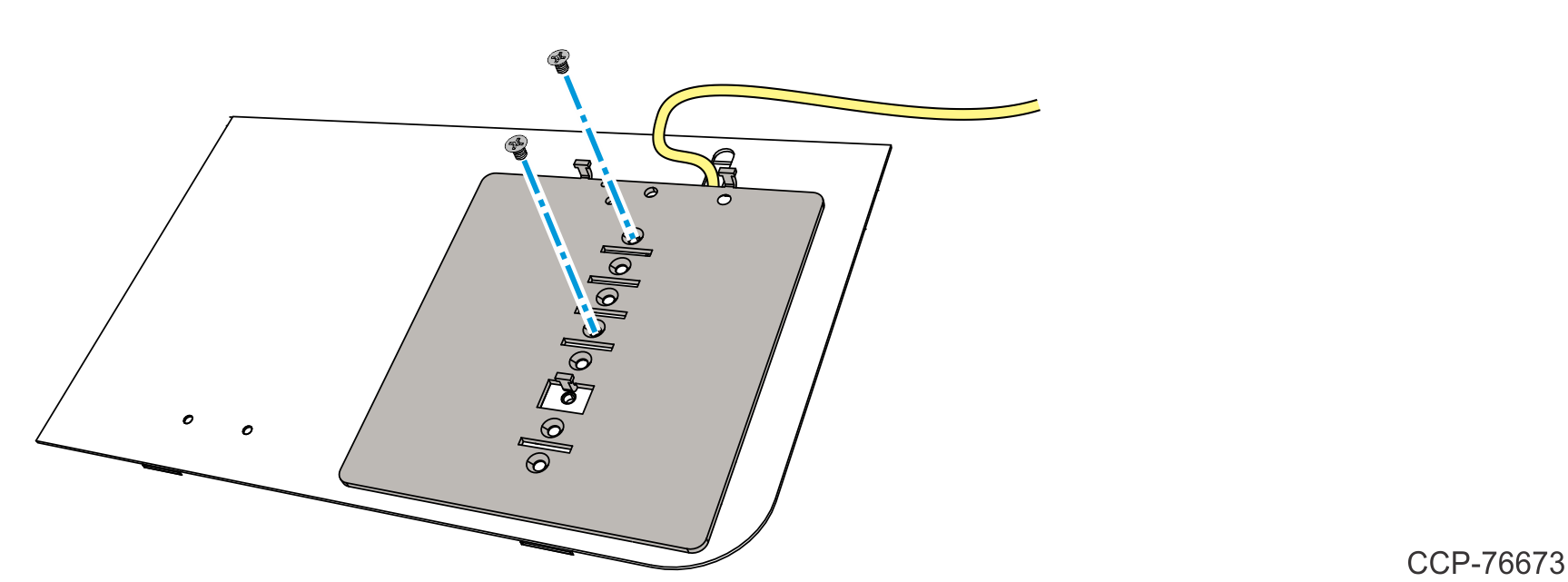

4.Insert the cable into the slot on top of the access hole and then mount and secure the PIN Pad Plate on the panel using two screws. Use the first and fourth mounting holes to secure the plate to the panel.

5.Connect the cable to the PIN Pad.

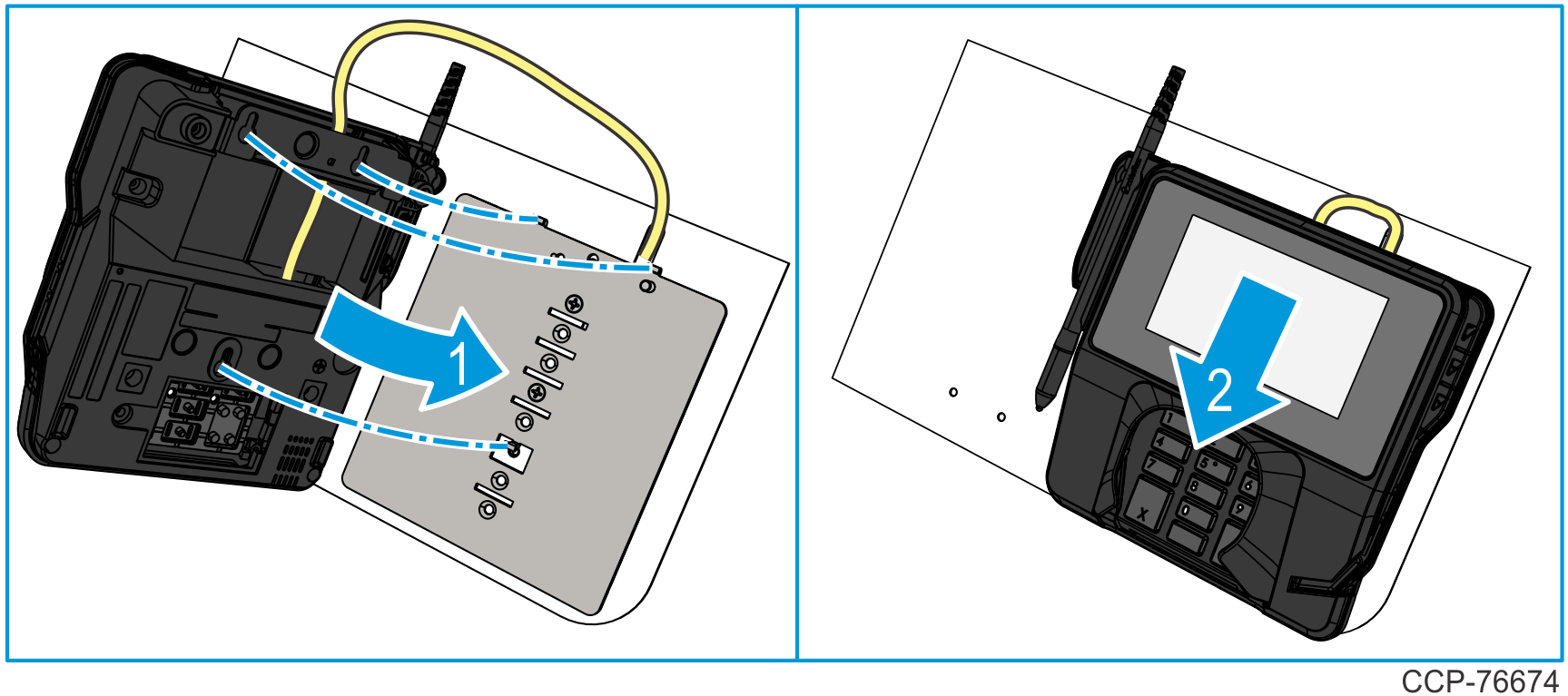

6.Mount the PIN Pad on the plate. Insert the metal hooks on the plate through the keyhole slots of the PIN Pad and then slide the PIN Pad downward.

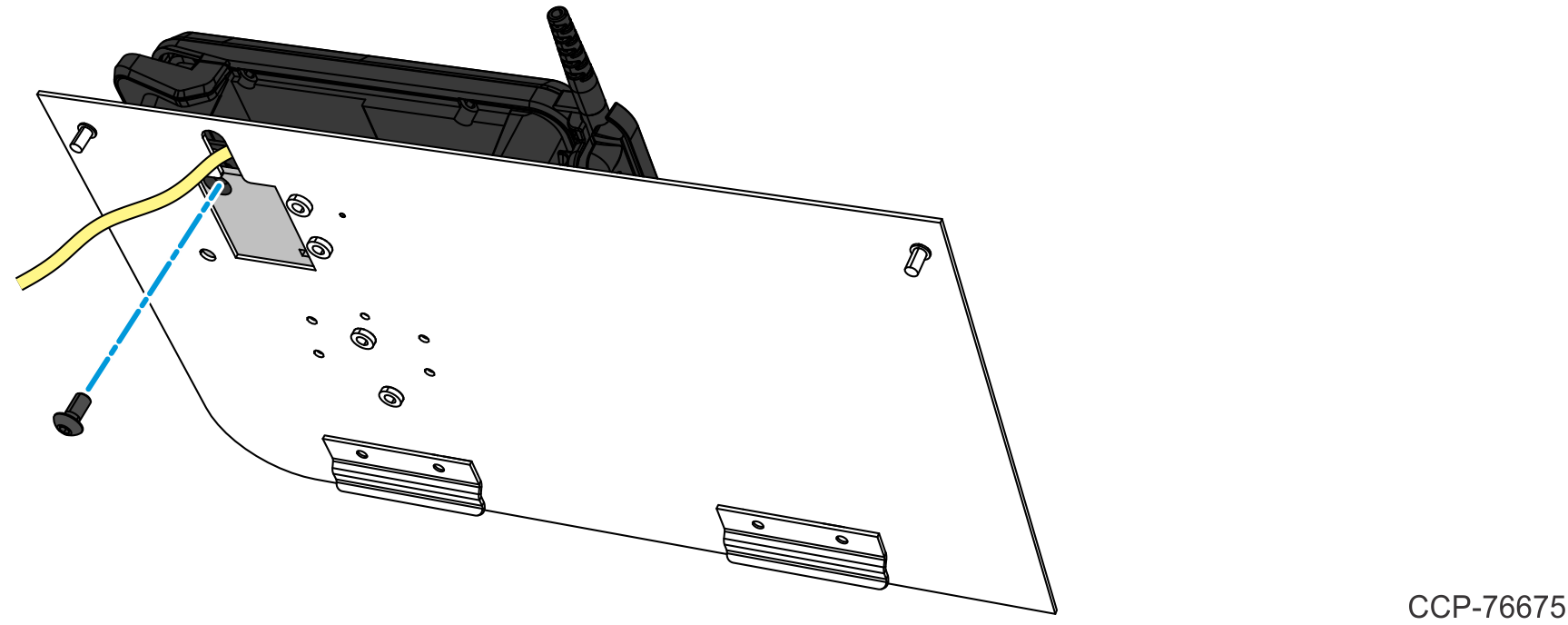

7.From the other side of the panel, lock the PIN Pad using the locking screw.

Note:  Use the locking screw packed into a small plastic bag that is taped to the front of the PIN Pad plate.

8.Inside the Door Cabinet, install the two wing nuts that secure the PIN Pad Panel to the kiosk.
