Ground Cables Secondary Routing

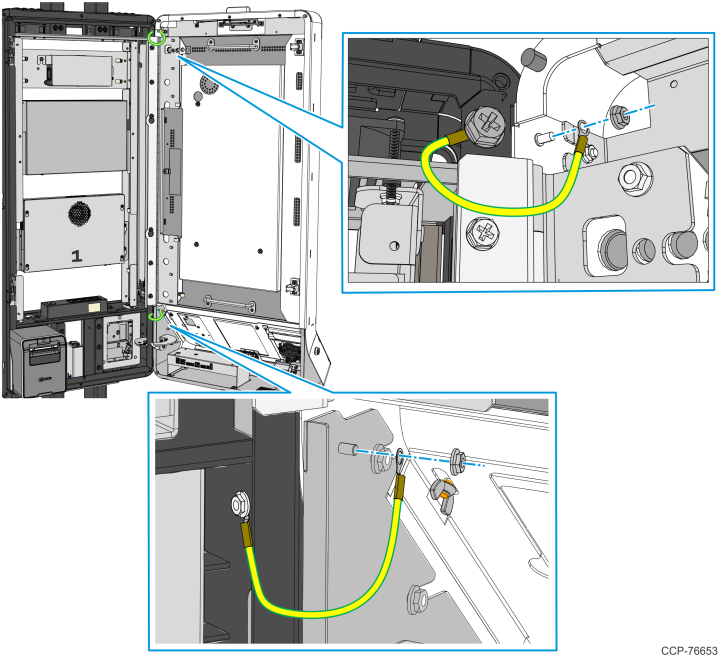

Connect the following ground cables from the Door to the Main Frame:

•Main Frame to Door Panel – top side

•Main Frame to Door Cabinet – bottom side

To connect the ground cables to the Main Frame, follow these steps:

1.Insert the terminal ring of the grounding cable into the grounding stud.

2.Secure the grounding cable with a nut.
