KIO Cable Secondary Routing

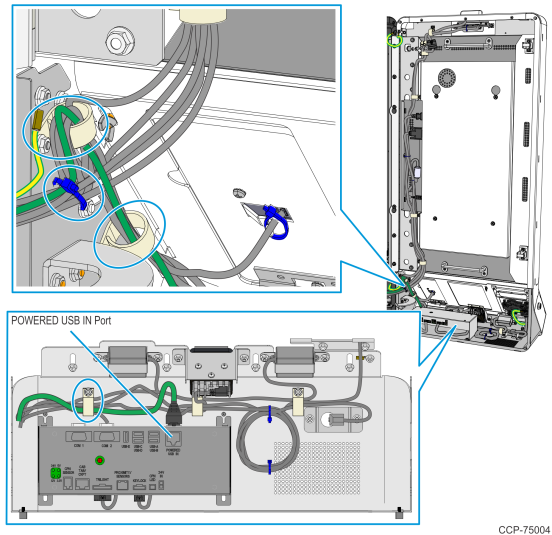

1.Connect the cable to the Powered USB IN port on the rear side of the KIO Board. For more information, see Port Assignments.

2.Route the Speakers cable through the p-loops and the cable tie on the left-hand side of the Cabinet Door. Secure the cable using p-loops along its route.

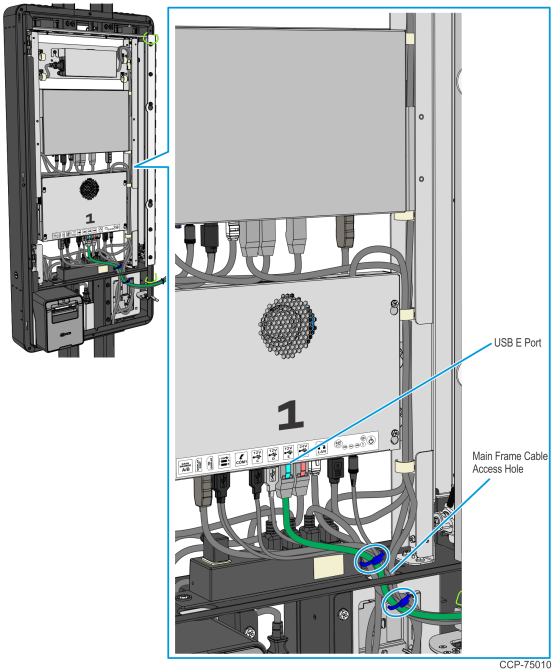

3.Insert the KIO Cable upward through the cable access hole in the Main Frame. Secure the cable using cable ties along its route to the EBox.

4.Connect the cable to the USB E port of the bottom EBox IO Panel. For more information, see Port Assignments.
