Securing Cables

After routing the internal cables, secure the cables with a plastic spiral wrap and cable ties. This is to prevent cables from dangling and from being pinched inside the kiosk.

To secure the internal cables, follow these steps:

1.Using the white plastic spiral wrap, bundle the cables that are crossing between the Door and Main Frame.

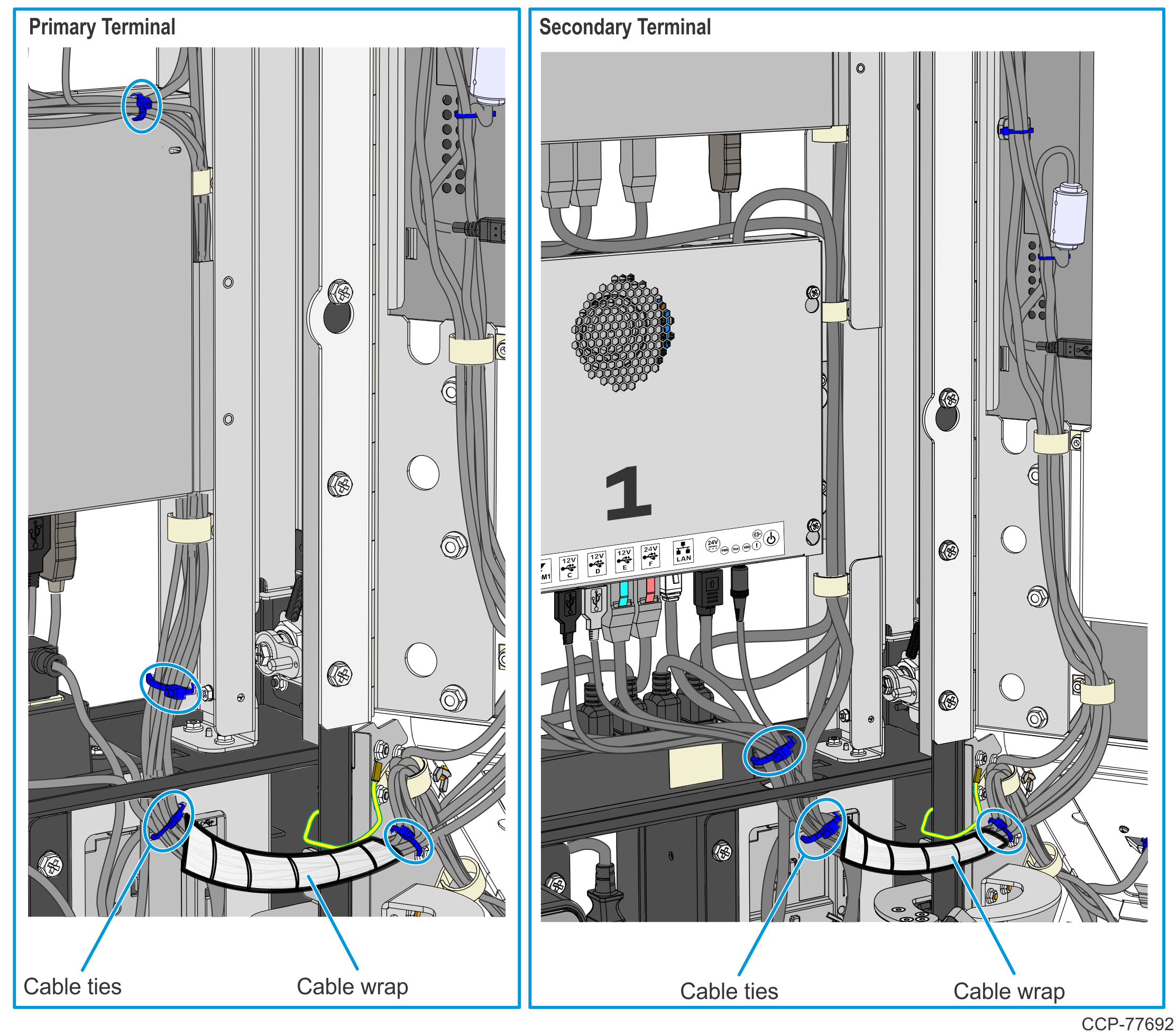

2.Bundle the cables with cable ties. The following image indicates the locations or the cable ties.
