Mount the Kitchen Controller and the Power Supplies

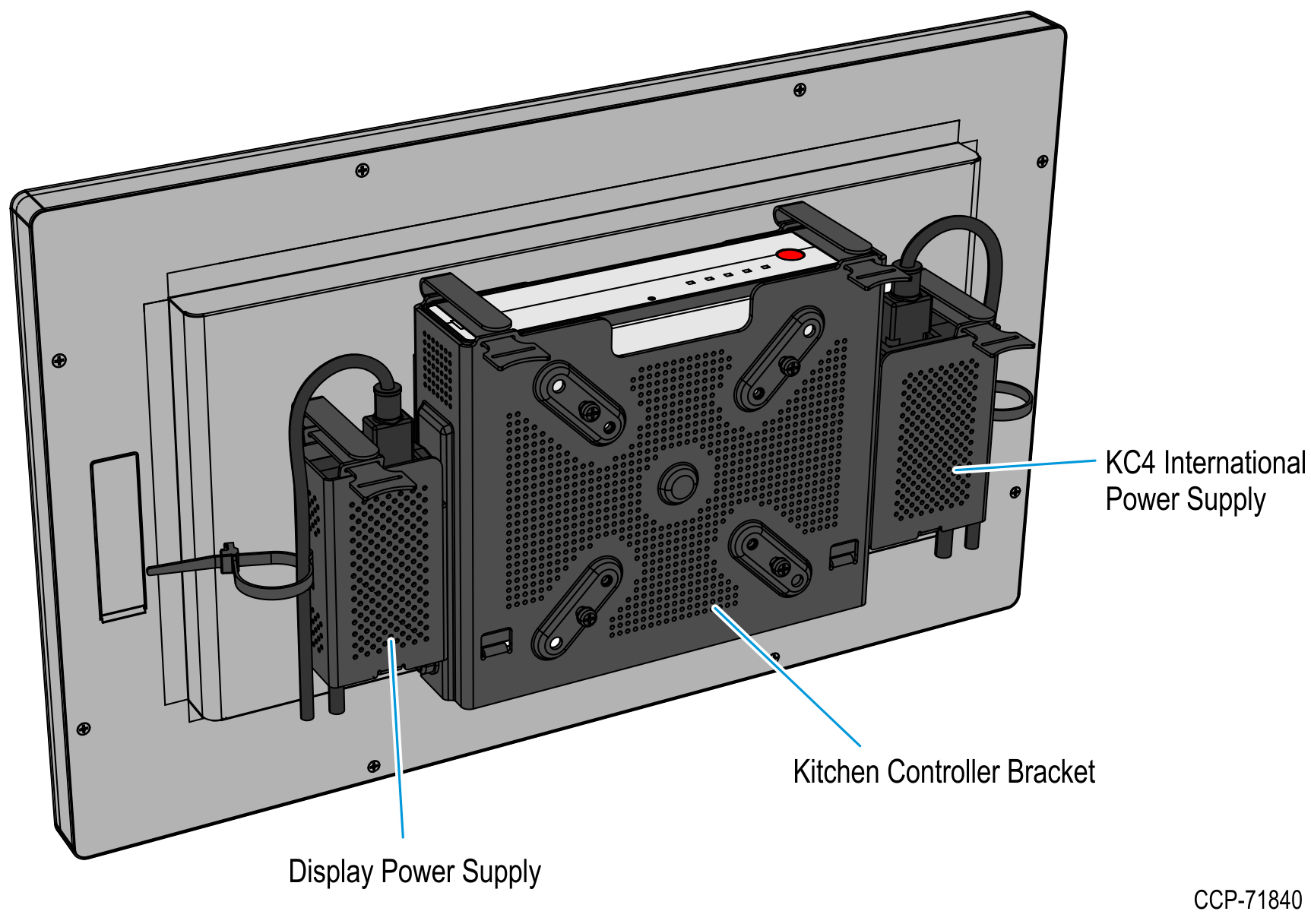

The kitchen controller, its power supply, and the display power supply have designated brackets for mounting.

Note:  The KC4 power supply used in this procedure is an International power supply.

1.Insert the kitchen controller into the KC4 bracket.

Note:  The I/O panel should be facing down to allow for easy cable routing.

2.Insert the KC4 International power supply into the right bracket.

Note:  The side with the removable AC power cord should be facing up.

3.Insert the display power supply into the left bracket.

Note:  The side with the removable AC power cord should be facing up.

4.Secure the kitchen controller and the power supplies with the restraining straps.
