Routing the PIN Pad Cable

PIN Pad Cable Primary Routing

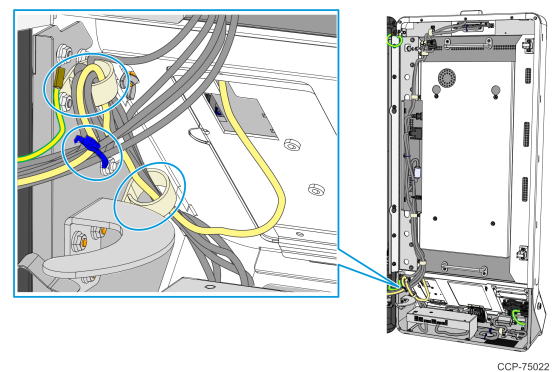

1.Route and secure the cable through the cable clamps on the left-hand side of the Door Cabinet.

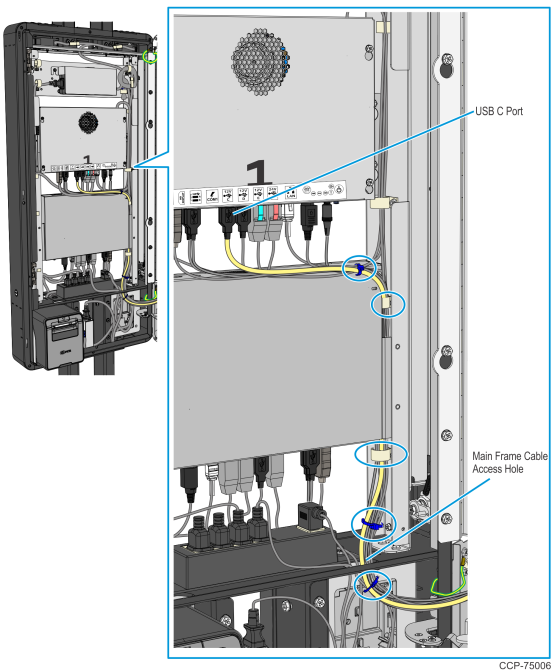

2.Insert the PIN Pad Cable upward through the cable access hole in the Main Frame and route the cable through the right-hand side of the frame towards the top EBox.

3.Connect the cable to the USB C port of the EBox IO Panel.

4.Secure the cable using the cable clamps along its route.
