Installation Procedures

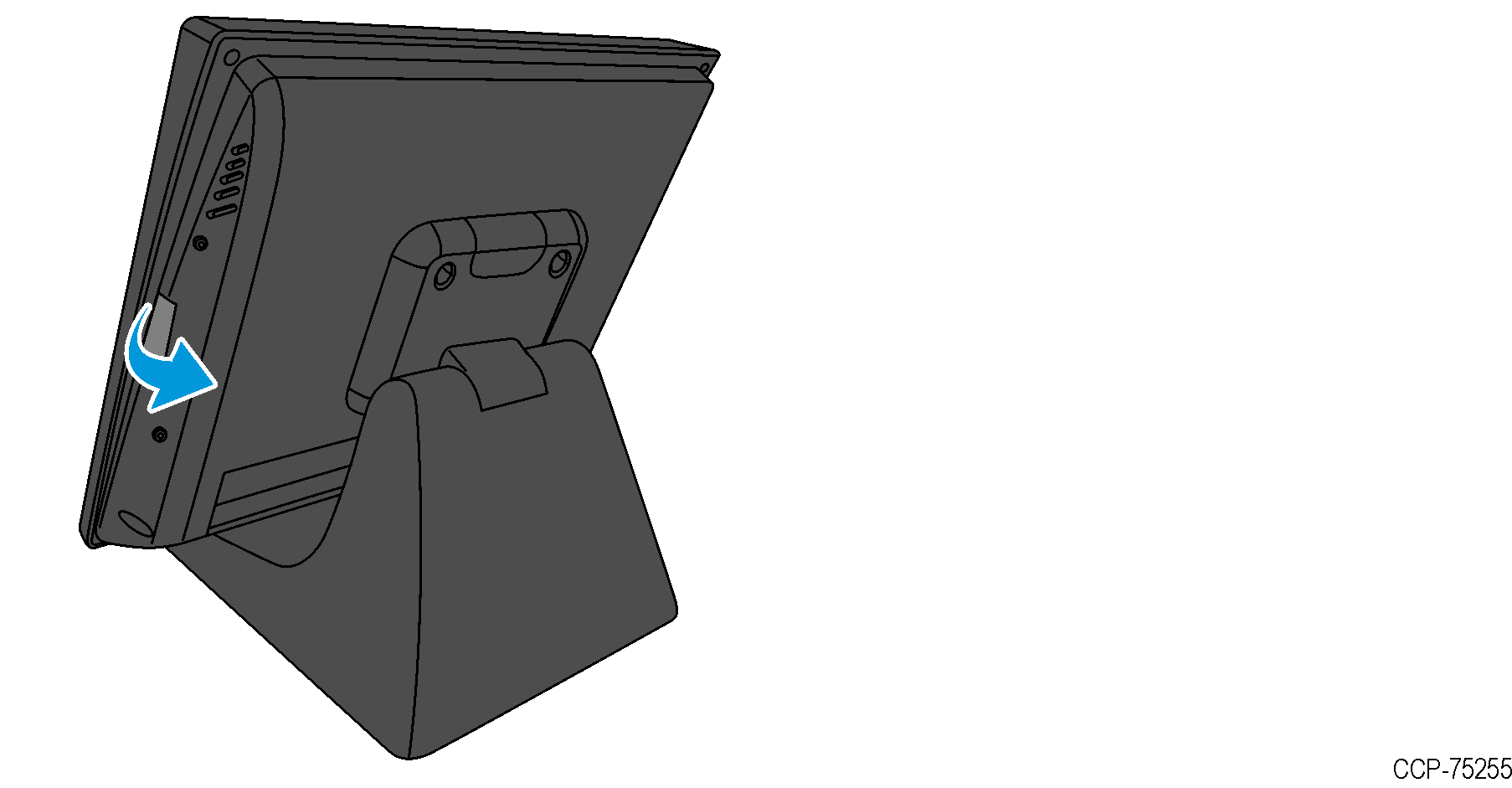

1.Remove the plastic cover located on the right side of the terminal.

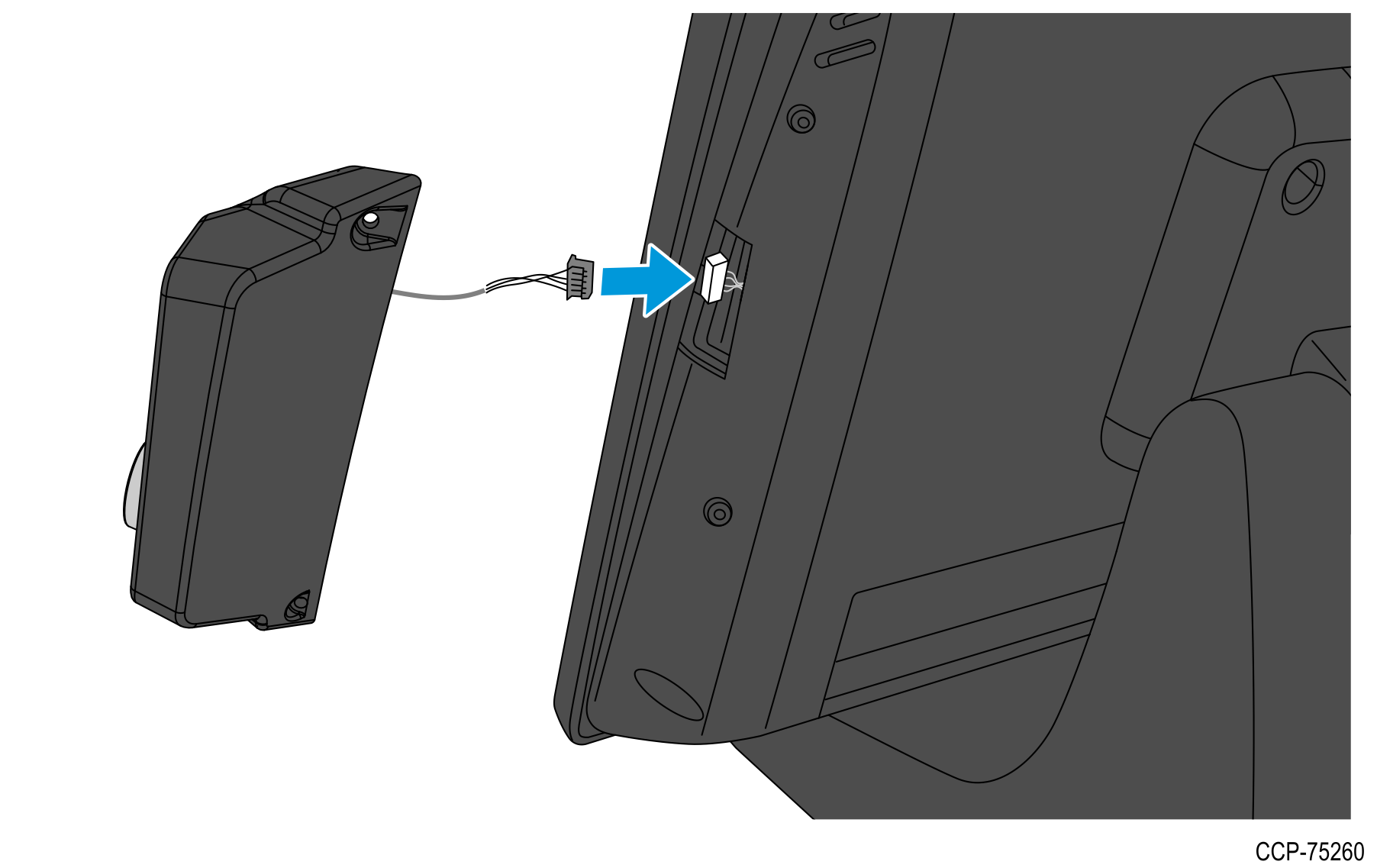

2.Connect the iButton cable to the USB connector, and then insert the cable connection through the opening.

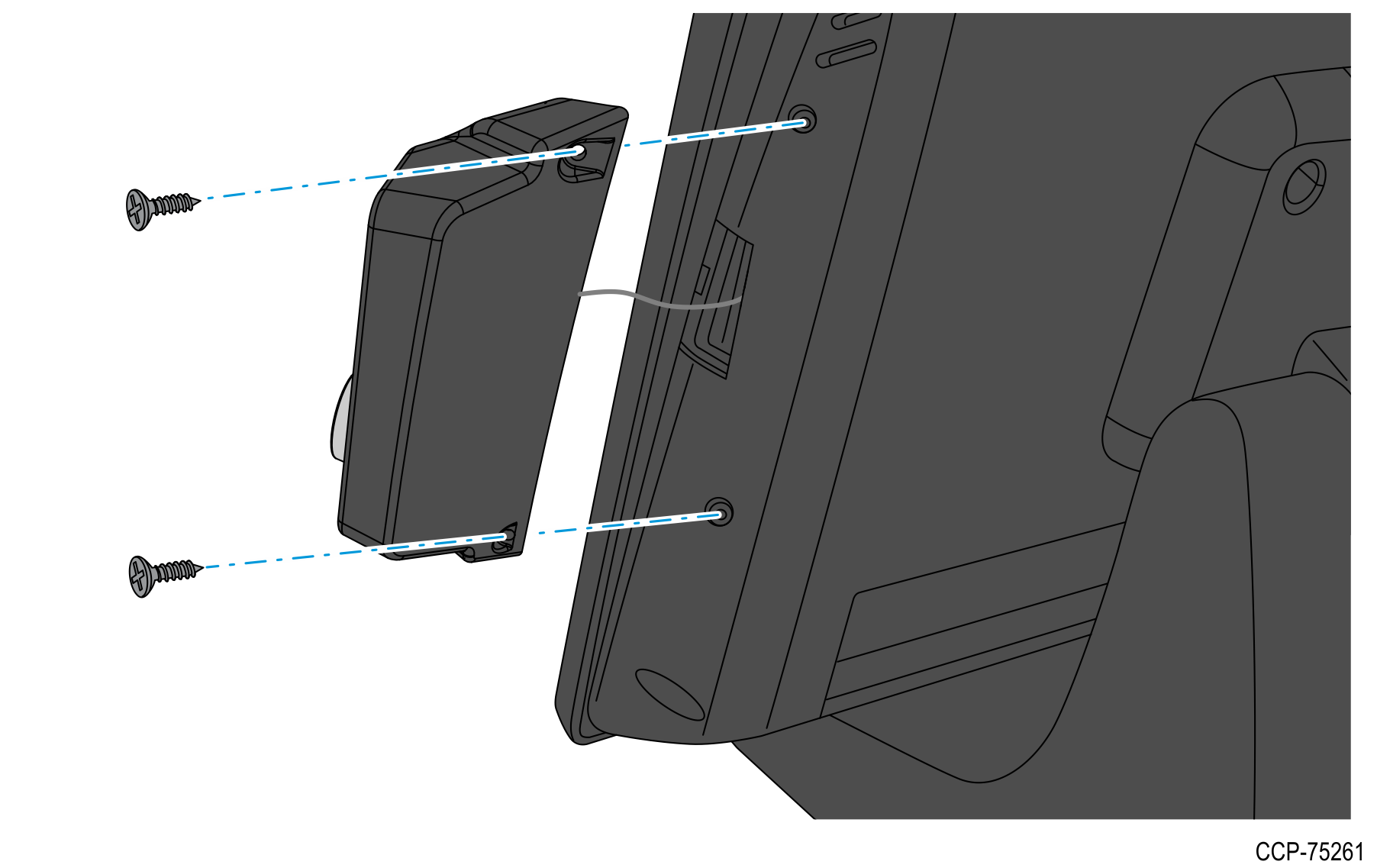

3.Position the iButton onto the right side of the terminal, and then secure it using two M3x8 screws.

Note:  Ensure that the holes on the iButton are aligned with the holes on the terminal.
