Installing Top Plate

To install the Top Plate, follow these steps:

1.Mount and secure the Top Plate to core using four (4) nuts, as shown in the image below.

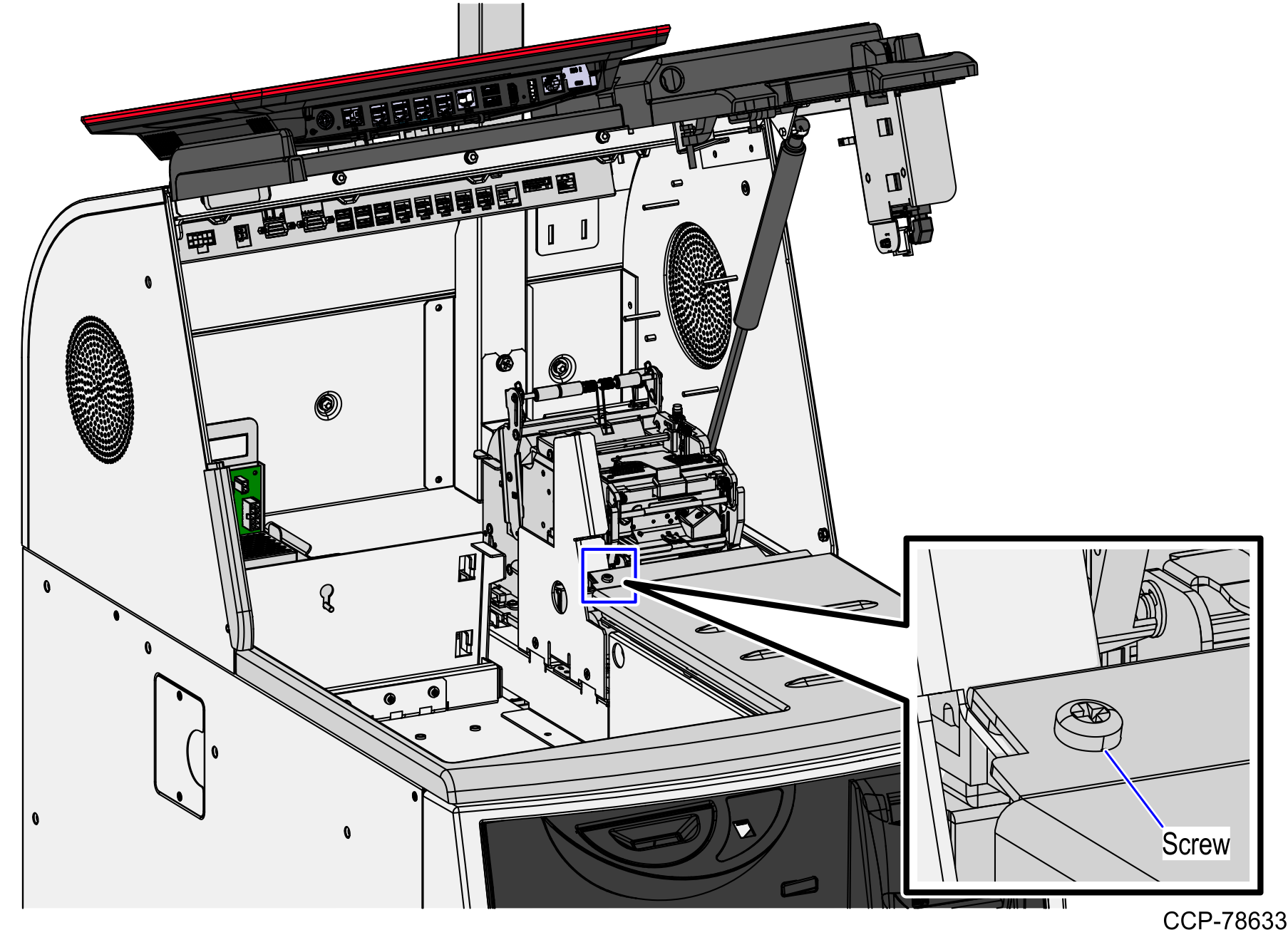

2.Depending on the SelfServ Checkout, secure the Top Plate in place using an M4 screw, as shown in the image below.

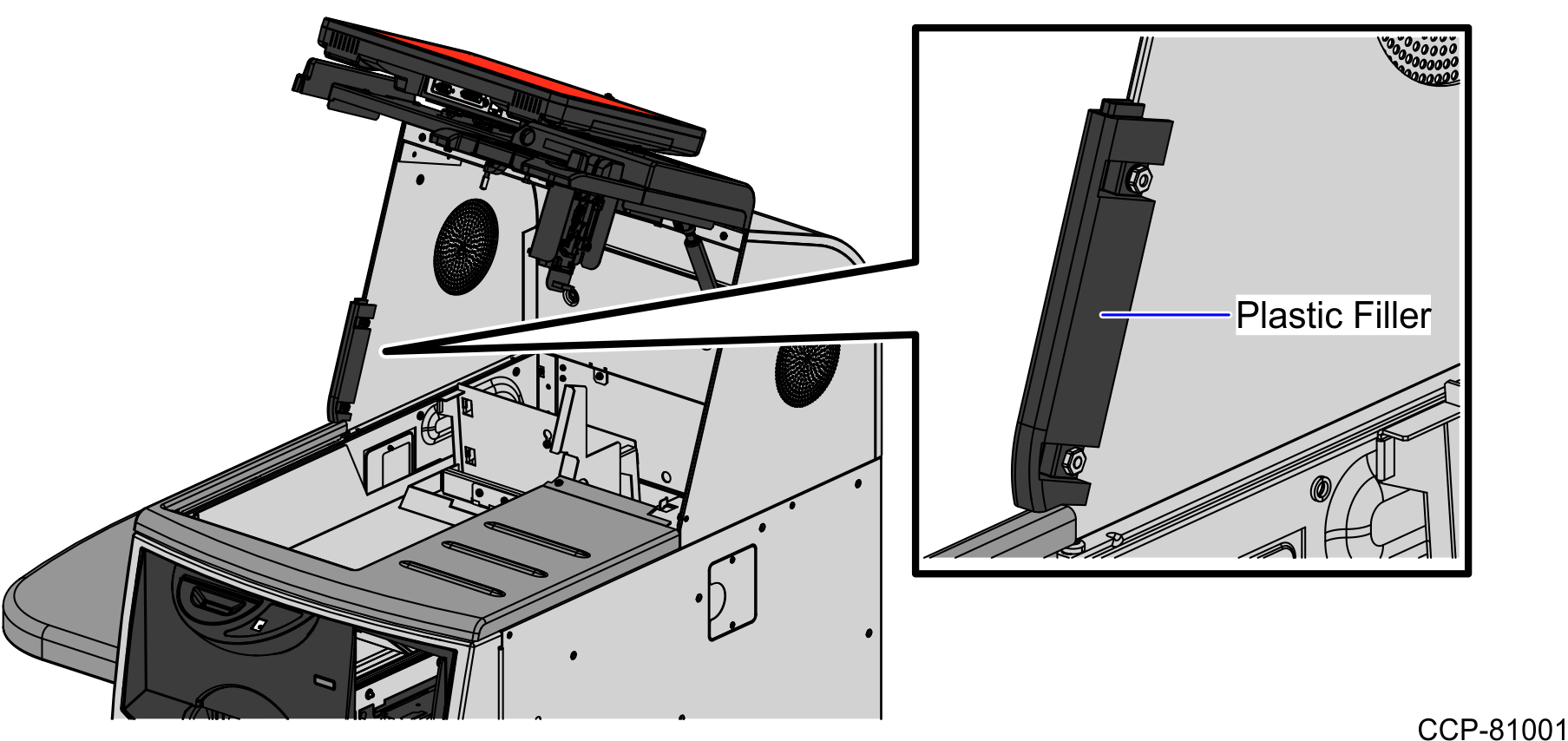

3.Secure the Plastic Filler to the side of the Core Hood using (2) nuts, as shown in the image below.
