Opening the Upper Cabinet Door

To open the Upper Cabinet Door, follow these steps:

Note:  For the purpose of illustration only, this procedure shows images using an NCR SelfServ™ Checkout (7350) R6 Lite unit. An NCR SelfServ™ Checkout (7350) R6 Lite unit uses RealScan 79e Scanner/Scale while an NCR SelfServ™ Checkout (7350) uses RealScan 78 Scanner/Scale.

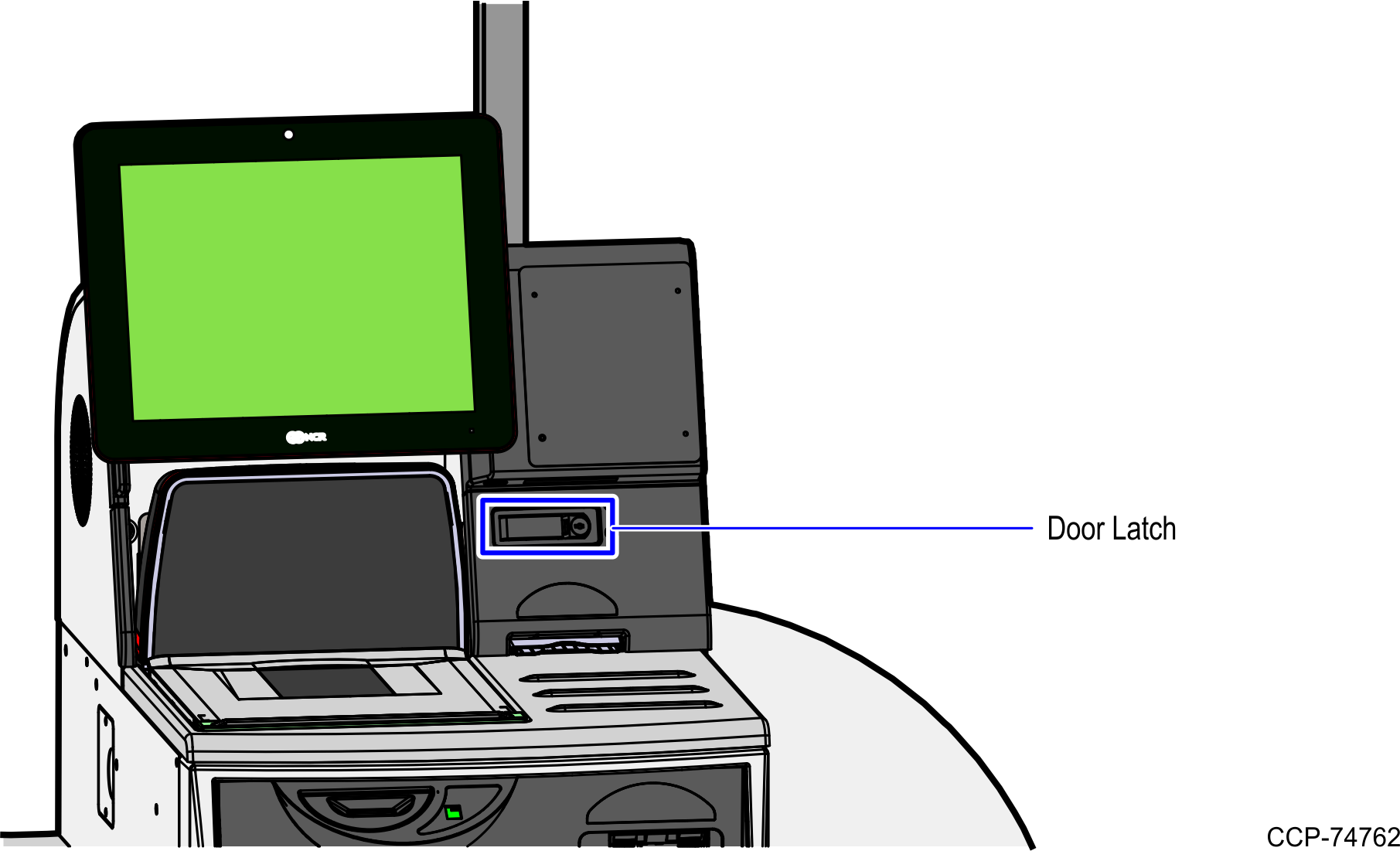

1.Insert key into lock on door latch and turn key counterclockwise.

2.Remove key and then press the keylock to unlatch the door.

Caution:  Ensure that the door is pushed down while lock is pressed because the door will automatically open.

3. Lift the door open.
