Routing Cables

To route the cables, follow these steps:

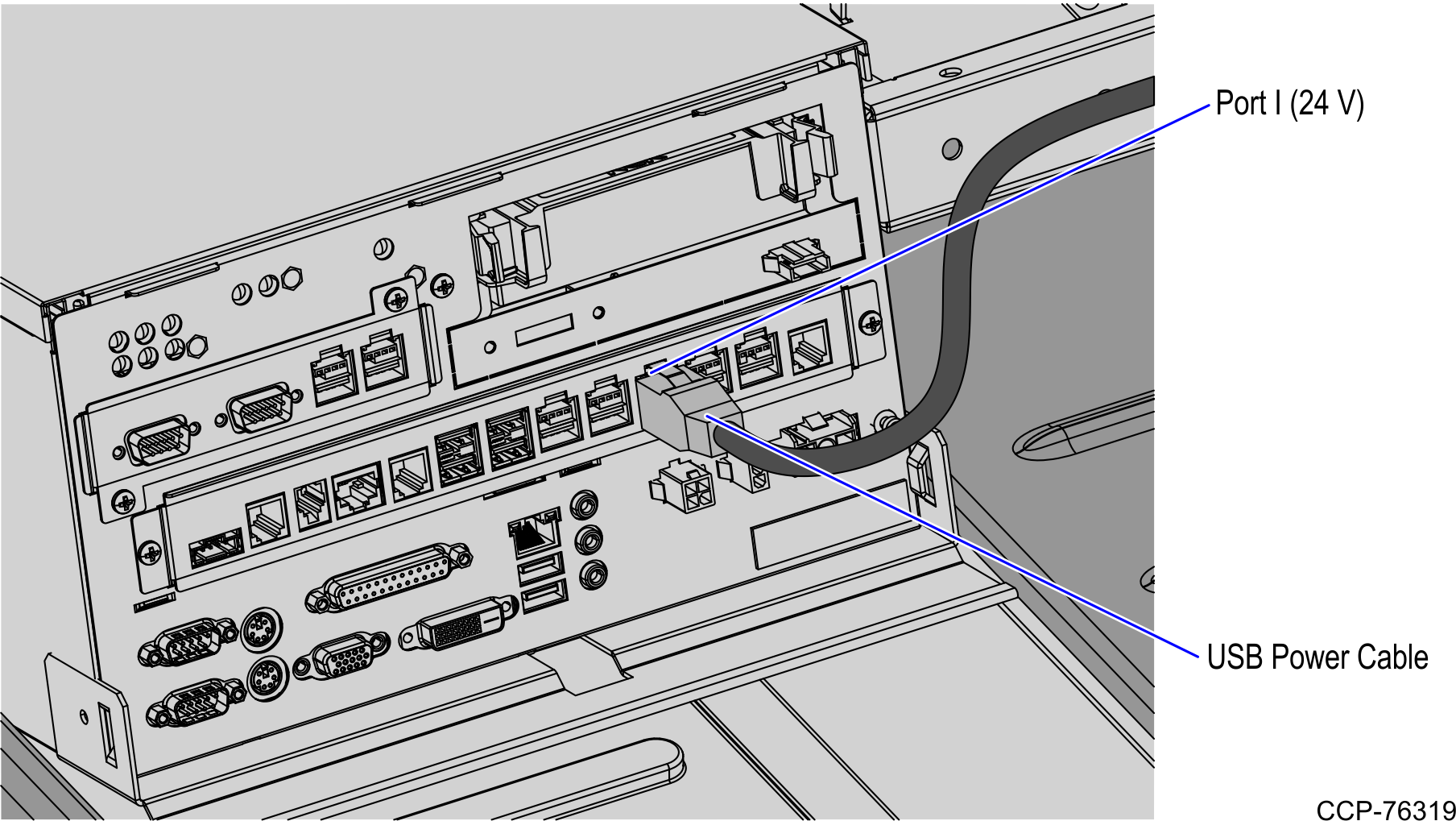

1.Connect the USB Power cable to USB I (24 V) port of E-Box.

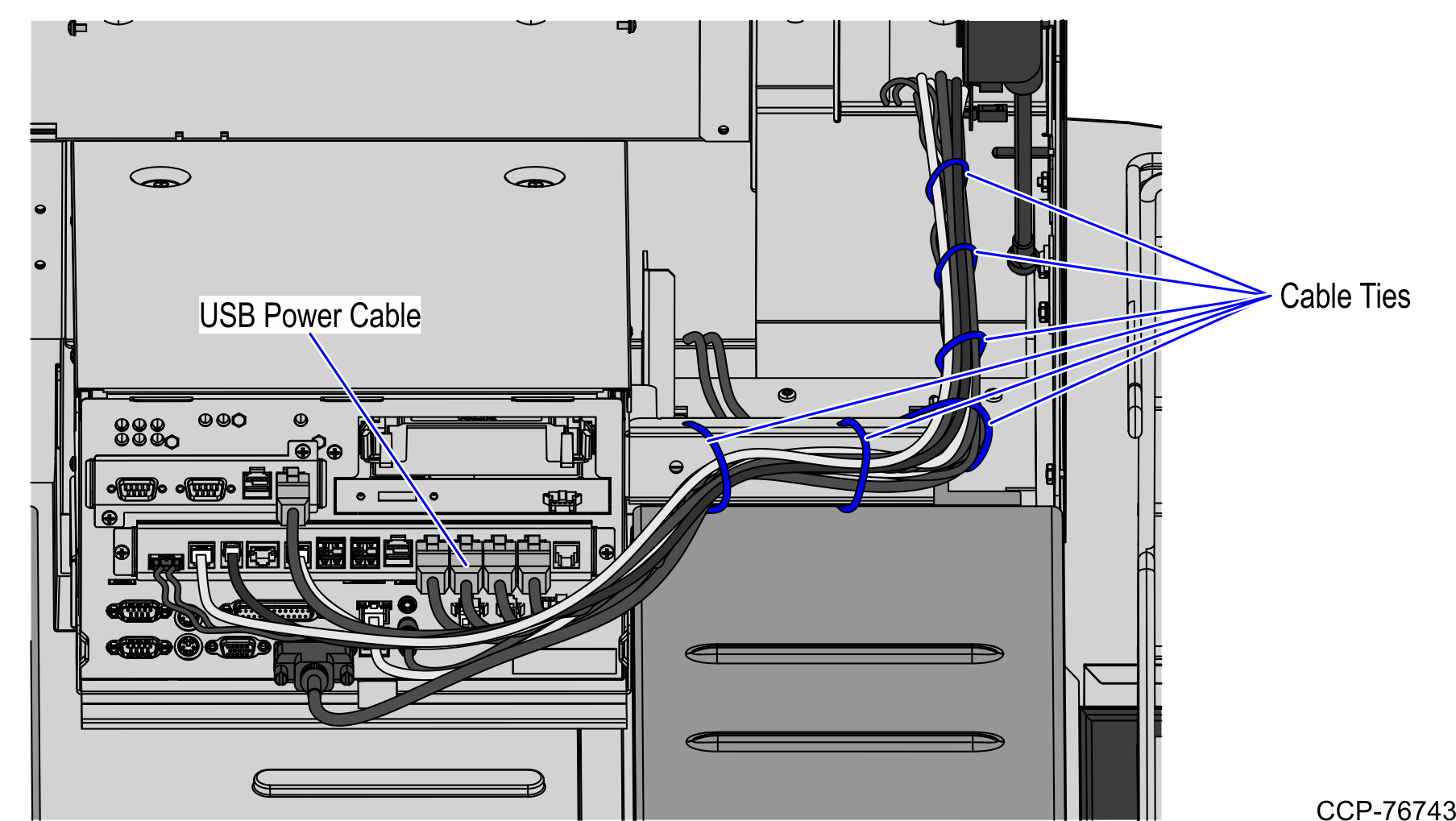

2.Using six (6) cable ties, secure the power cable to the main cable bundle, as shown in the image below.

Note:  Ensure that the cables do not get caught by the rotation of the E-Box.

3.Continue routing the cables down to the rear channel and then back up to the printer bucket area.

4.Push down all cable slack to the rear part of the Core Cabinet.
