Removing Coupon Chute and Proximity Sensor Assembly

To remove the Coupon Chute Assembly, follow these steps:

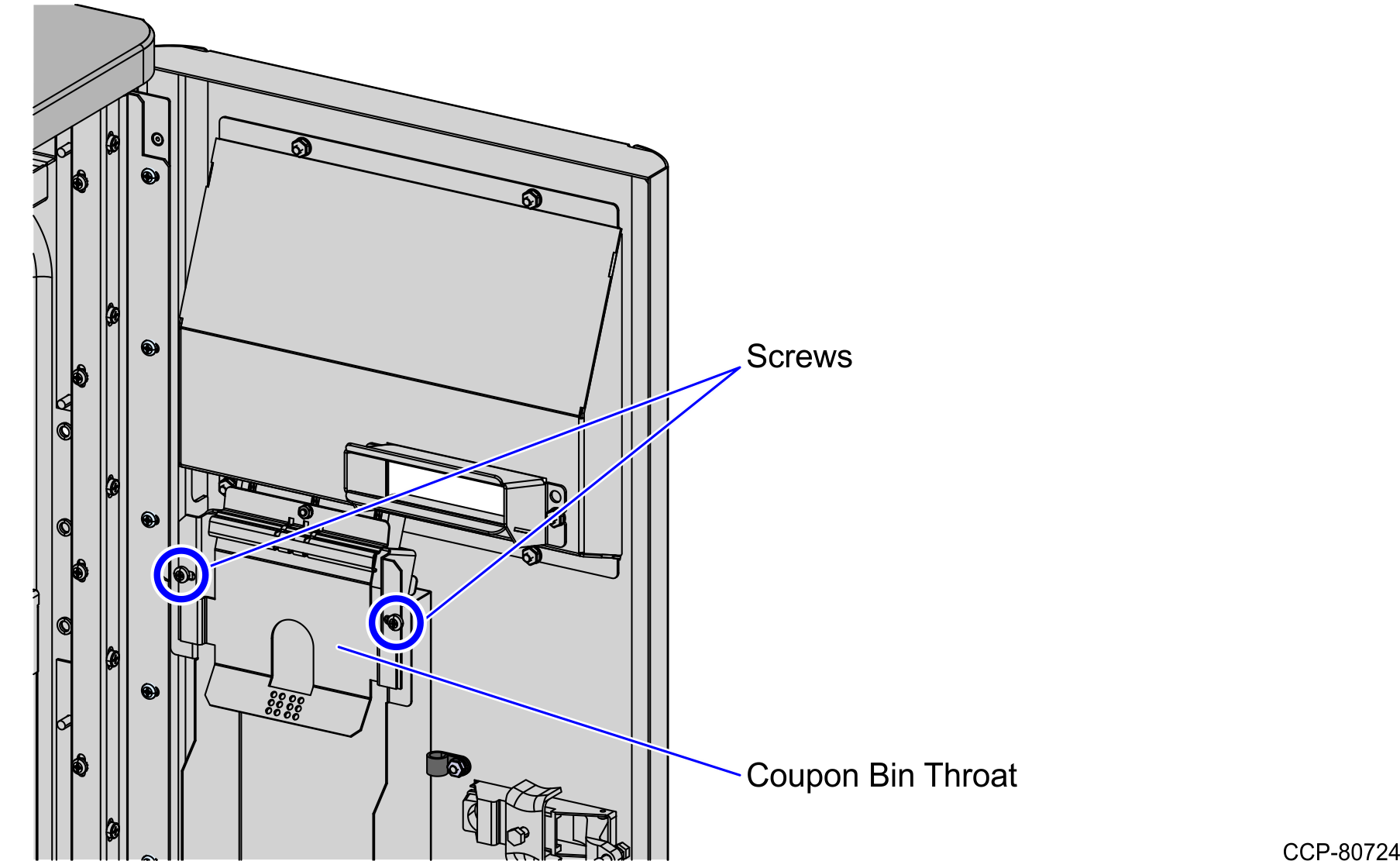

1.Detach the Coupon Bin Throat from the back of the Core Door by removing two (2) screws.

Note:  Set aside the screws for reinstallation.

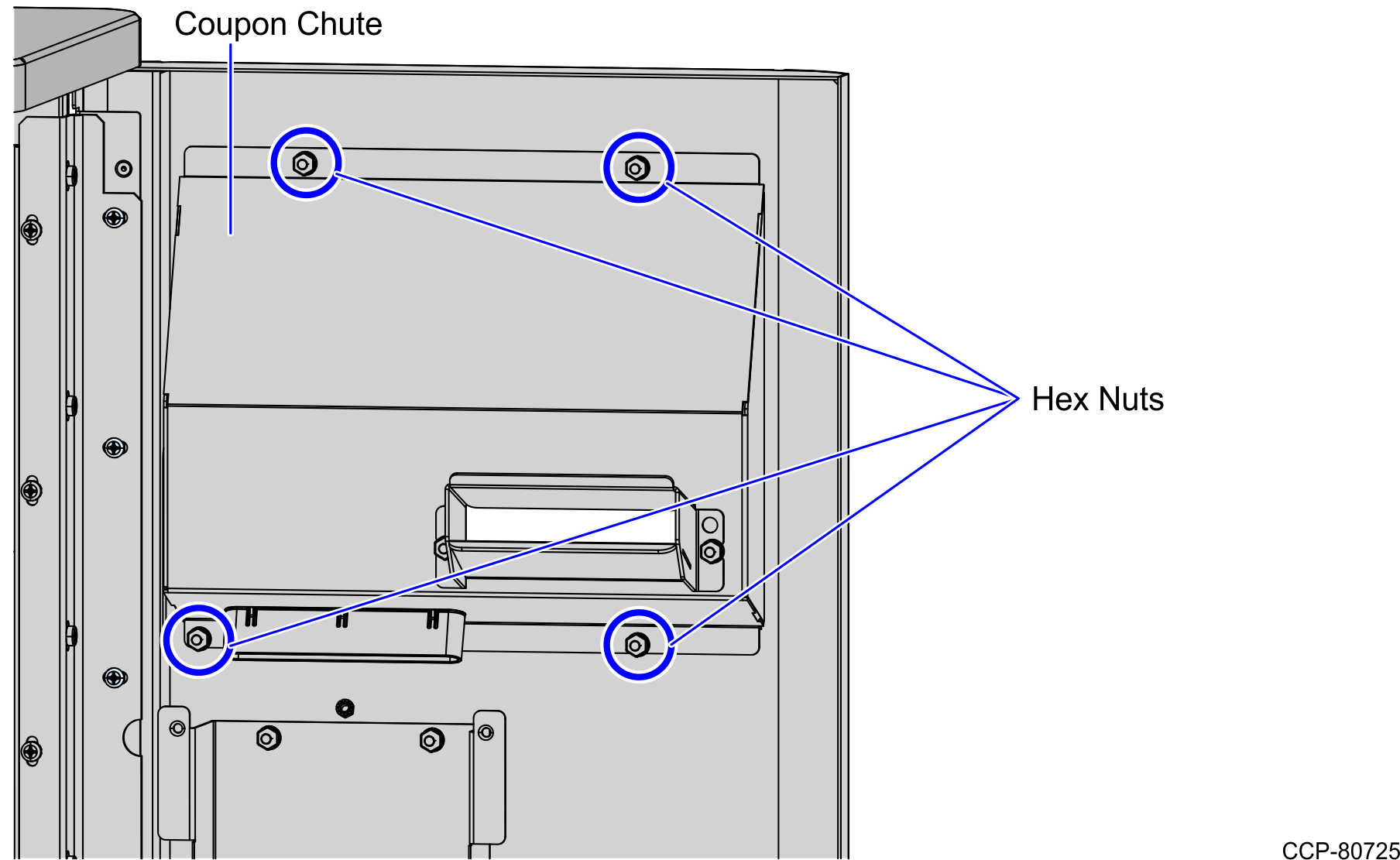

2.Detach the existing Coupon Chute from the back of the Core Door by removing four (4) hex nuts.

Note:  Set aside the screws for reinstallation.
