Removing Printer Shelf Assembly

To remove the Printer Shelf Assembly, follow these steps:

Note:  Ensure that the Receipt Printer is removed. For more information, refer to Removing Receipt Printer.

1.Remove and set aside the screw, bearing and washer from the linkage connecting the Printer Bracket to the core wall, as shown in the image below.

2.Remove the I/O Box-PSU Bracket by doing the following:

Note:  The I/O Box-PSU Bracket and the Printer Shelf Assembly are secured together inside the Core Cabinet on the right side.

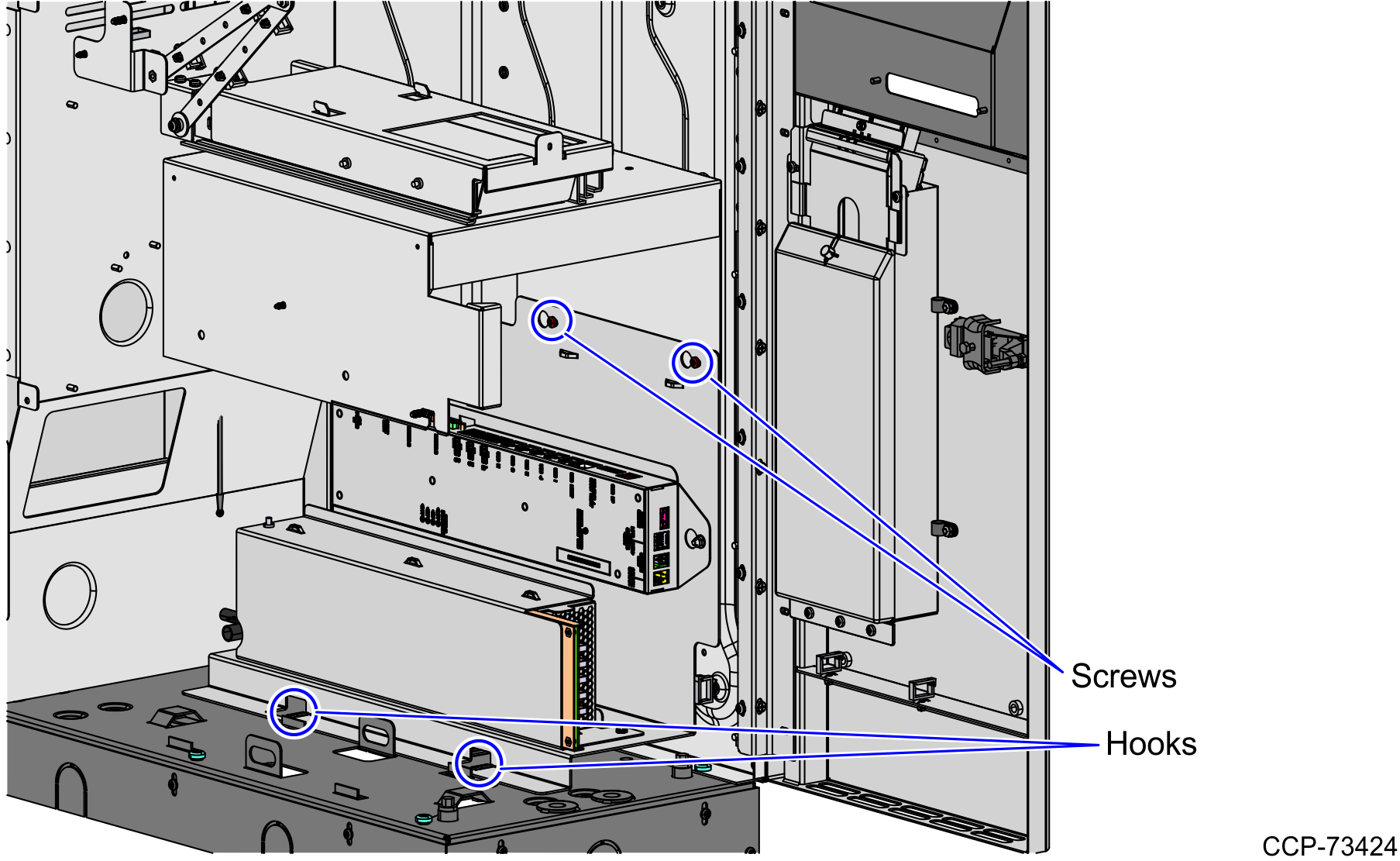

a.Loosen two (2) screws on the I/O Box-PSU Bracket.

b.Slide the I/O Box-PSU Bracket Assembly towards you to disengage the hooks from the core floor.

3.Remove and set aside four (4) screws to detach the Printer Shelf Assembly from the core wall, as shown in the image below.

Note:  Set aside the screws for reinstallation.
