Removing Lower Bumper

To remove the lower bumper from the Core Door, follow these steps:

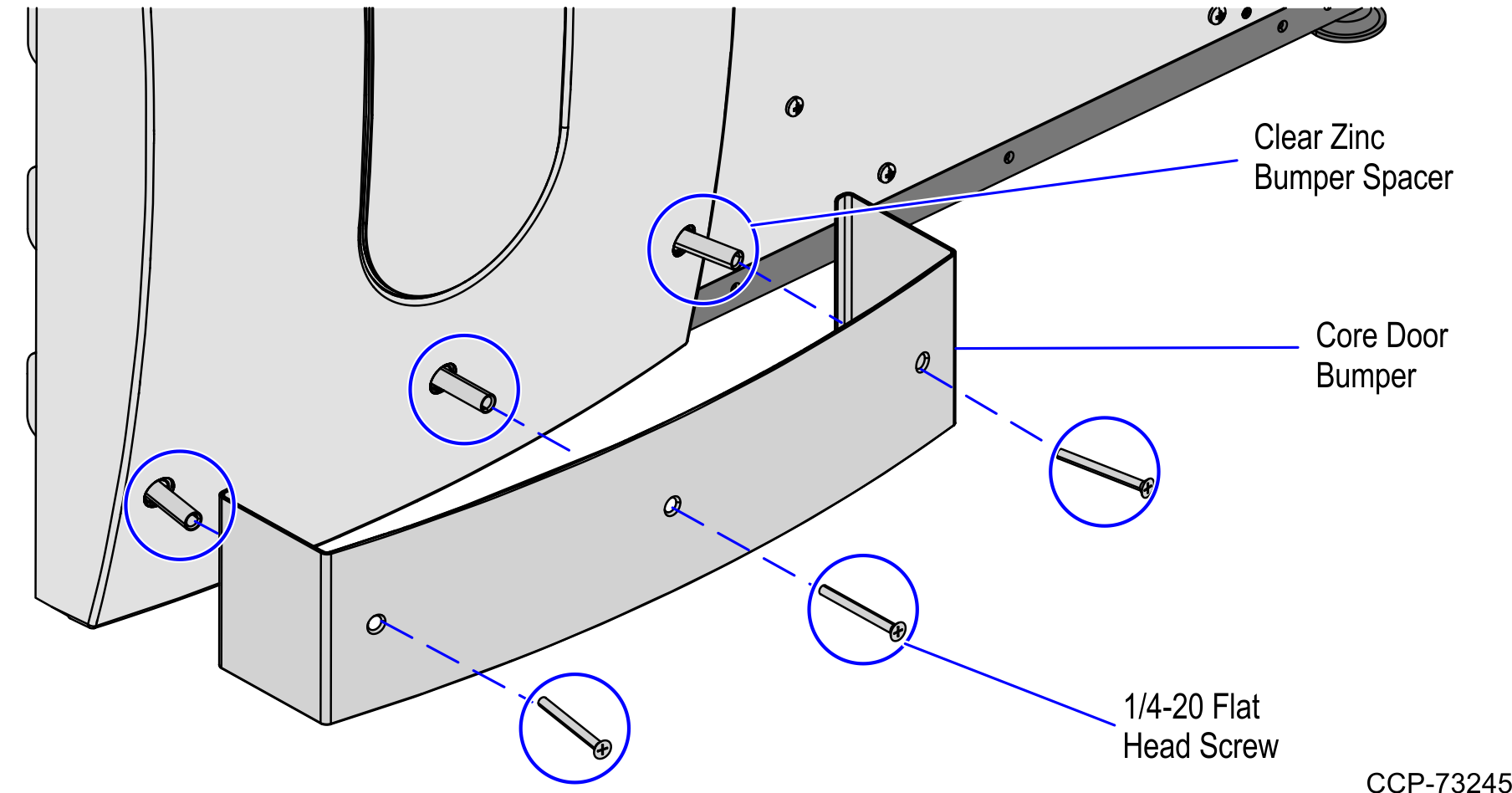

1.Remove the three (3) ⅟₄ - 20 flat head screws securing the bumper to the corresponding bumper spacers, as shown in the image below.

2.Remove the three (3) clear zinc bumper spacers from the holes on the plastic door fascia.
