Removing Upper and Lower Fixed Brackets

To remove the existing fixed brackets, follow these steps:

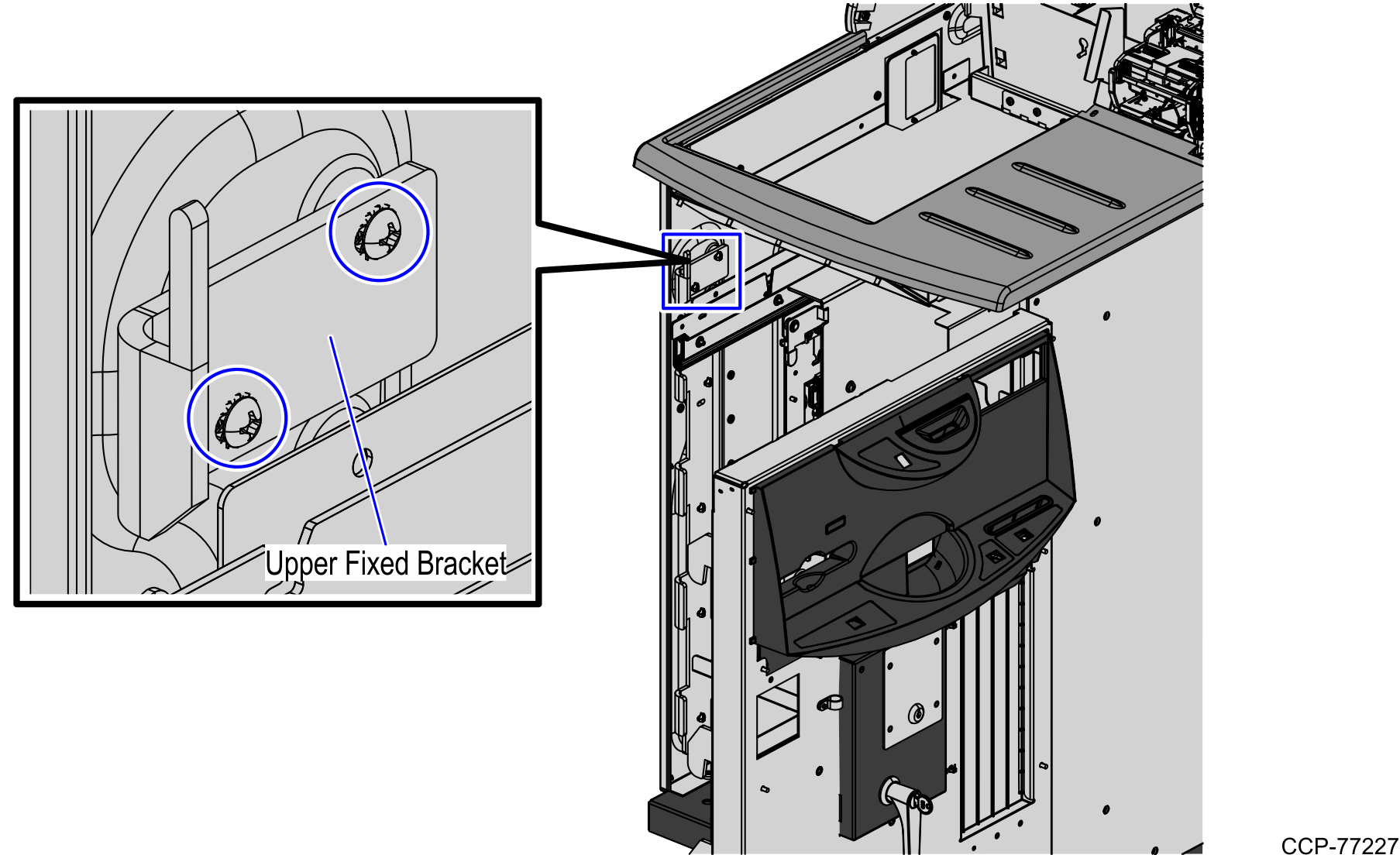

1.Remove the two (2) screws securing the upper fixed bracket to the Core Cabinet inner frame, as shown in the image below.

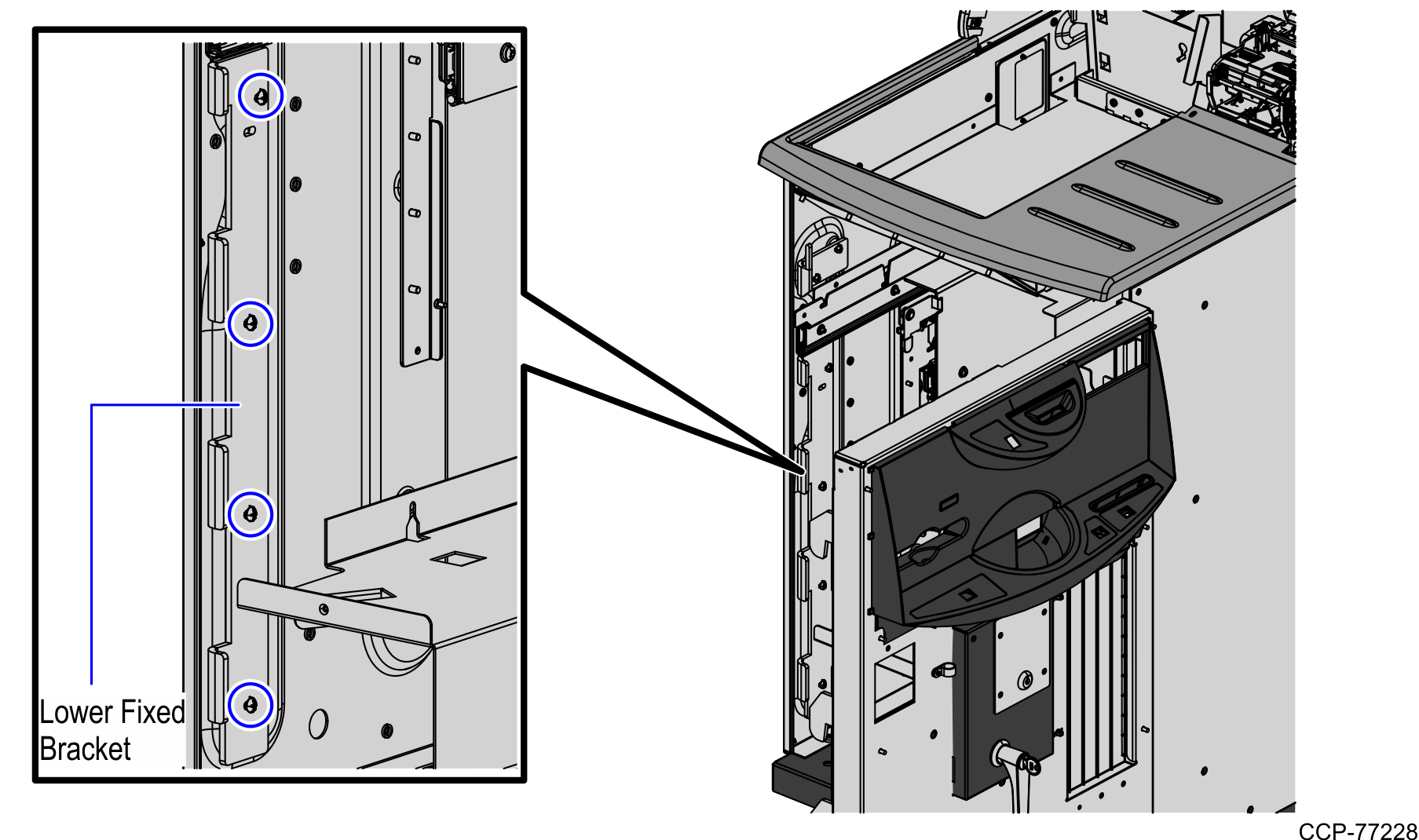

2.Remove the four (4) screws securing the lower fixed bracket to the Core Cabinet inner frame, as shown in the image below.

To install new fixed brackets, refer to Installing Upper and Lower Fixed Brackets.
