Removing Hook Bracket

To remove the existing hook bracket from the Core Door, follow these steps:

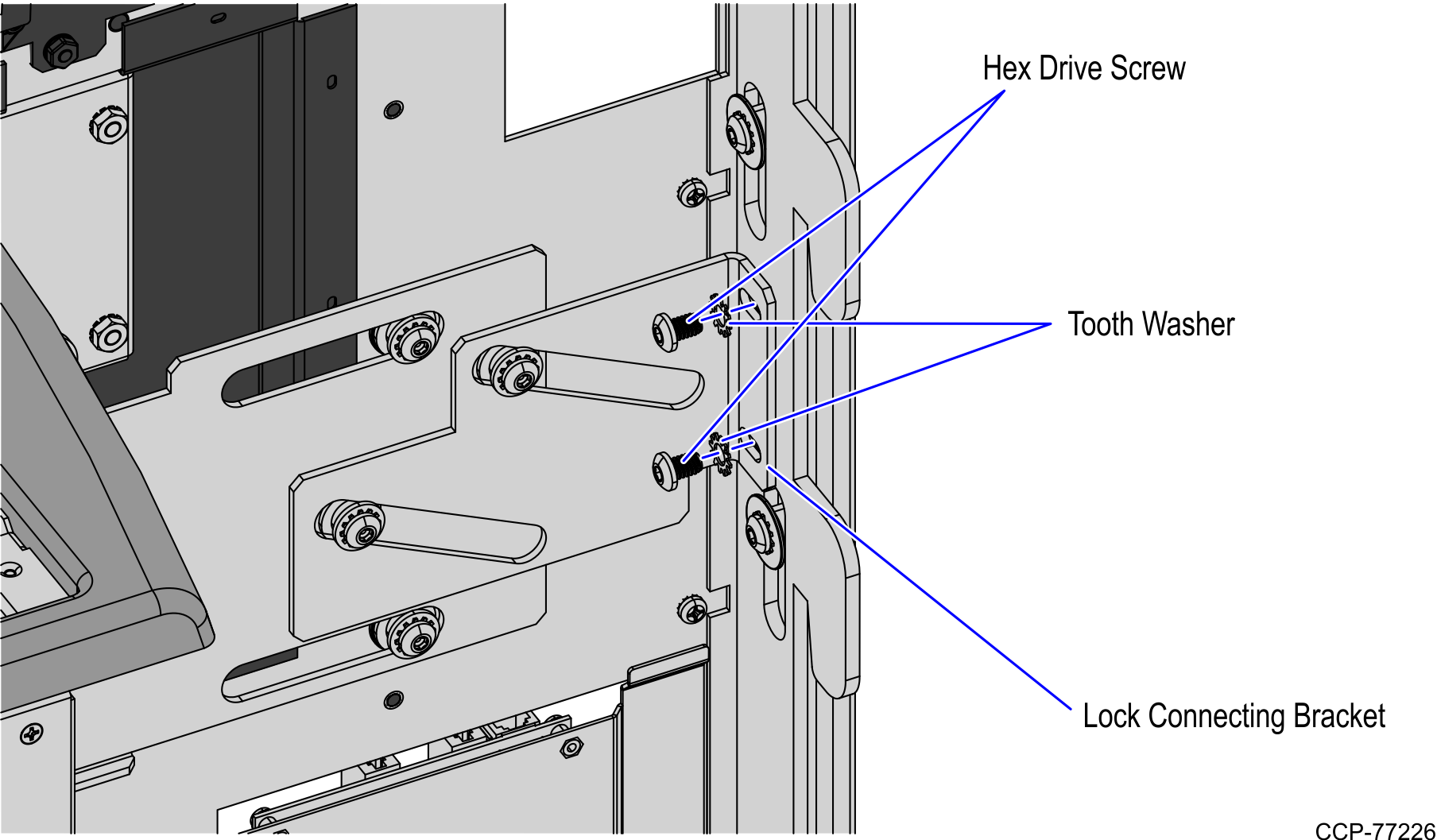

1.Remove the two (2) sets of hex drive screws and tooth washers securing the hook bracket to the lock connecting bracket.

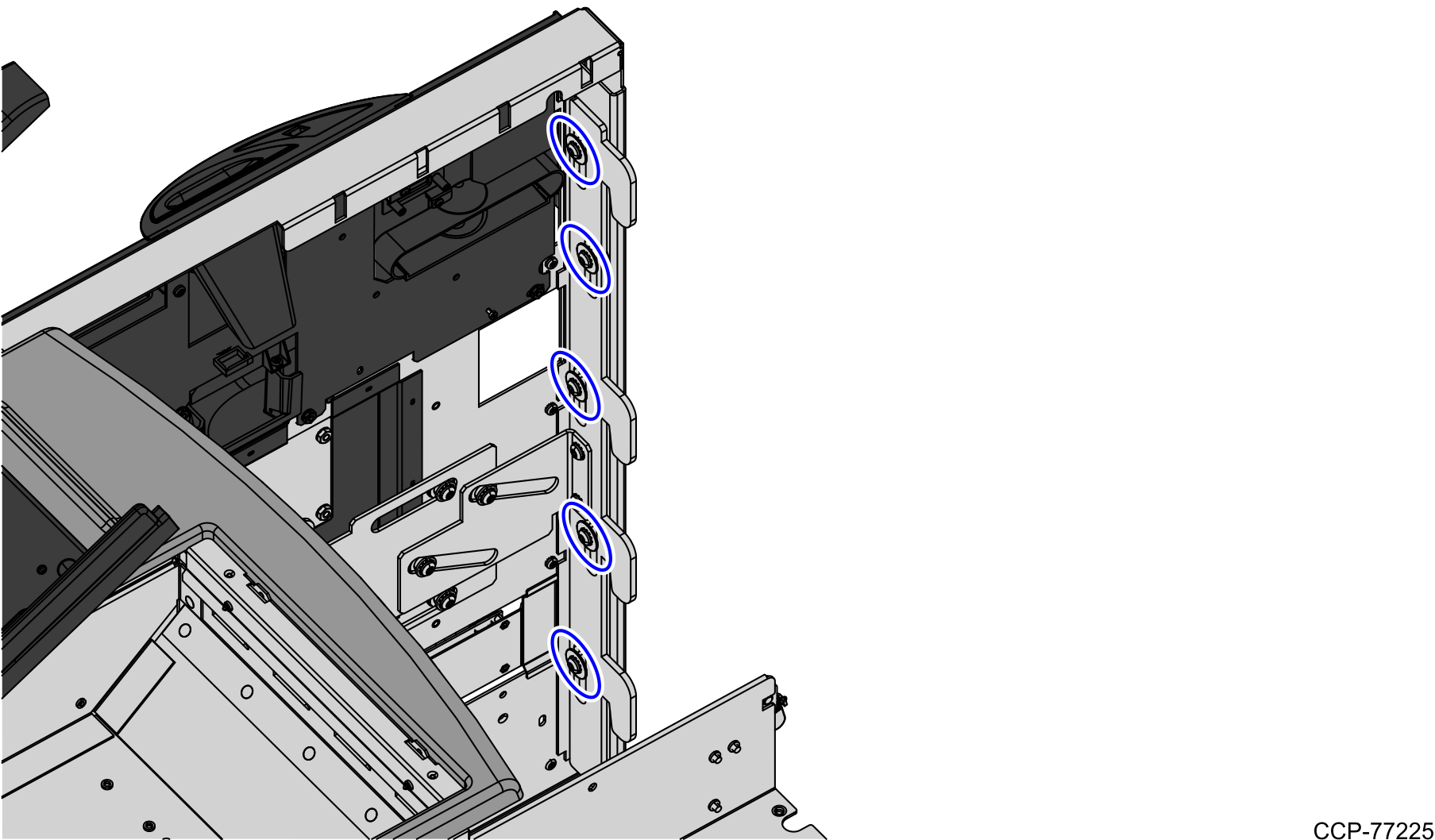

2.Remove the five (5) sets of hex drive screws, tooth washers and flat washers that secure the hook bracket to the Core Door.
