The Metal BCR (BCR 106) supports the Money Controls SR5i Coin Acceptor. To remove the Money Controls SR5i Coin Acceptor, follow these steps:

1.Unlock and open the SelfServ Checkout door.

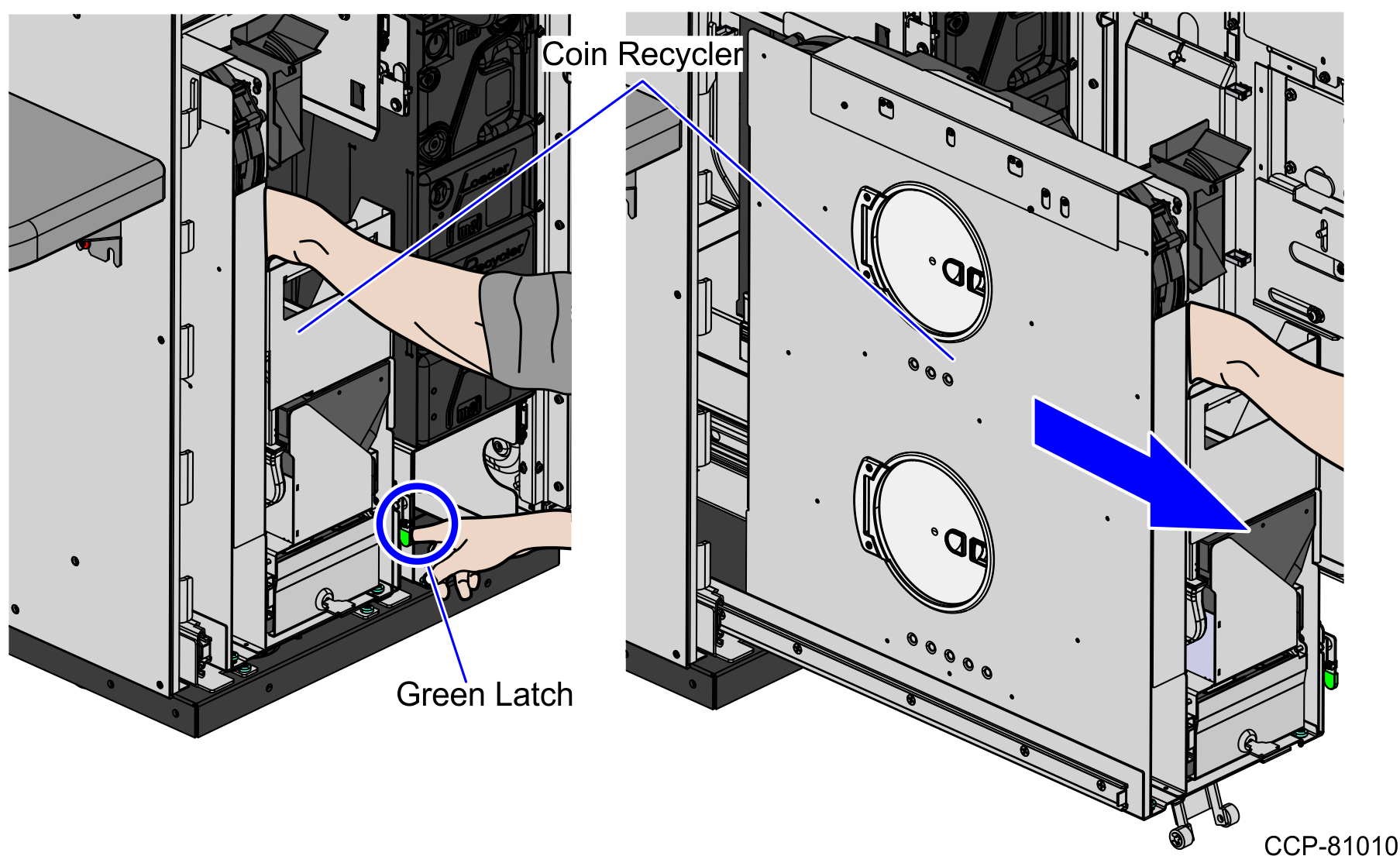

2.Lift the green latch and rack out the Bulk Coin Recycler from the unit until it is fully extended.

3.Remove the Main Cover.

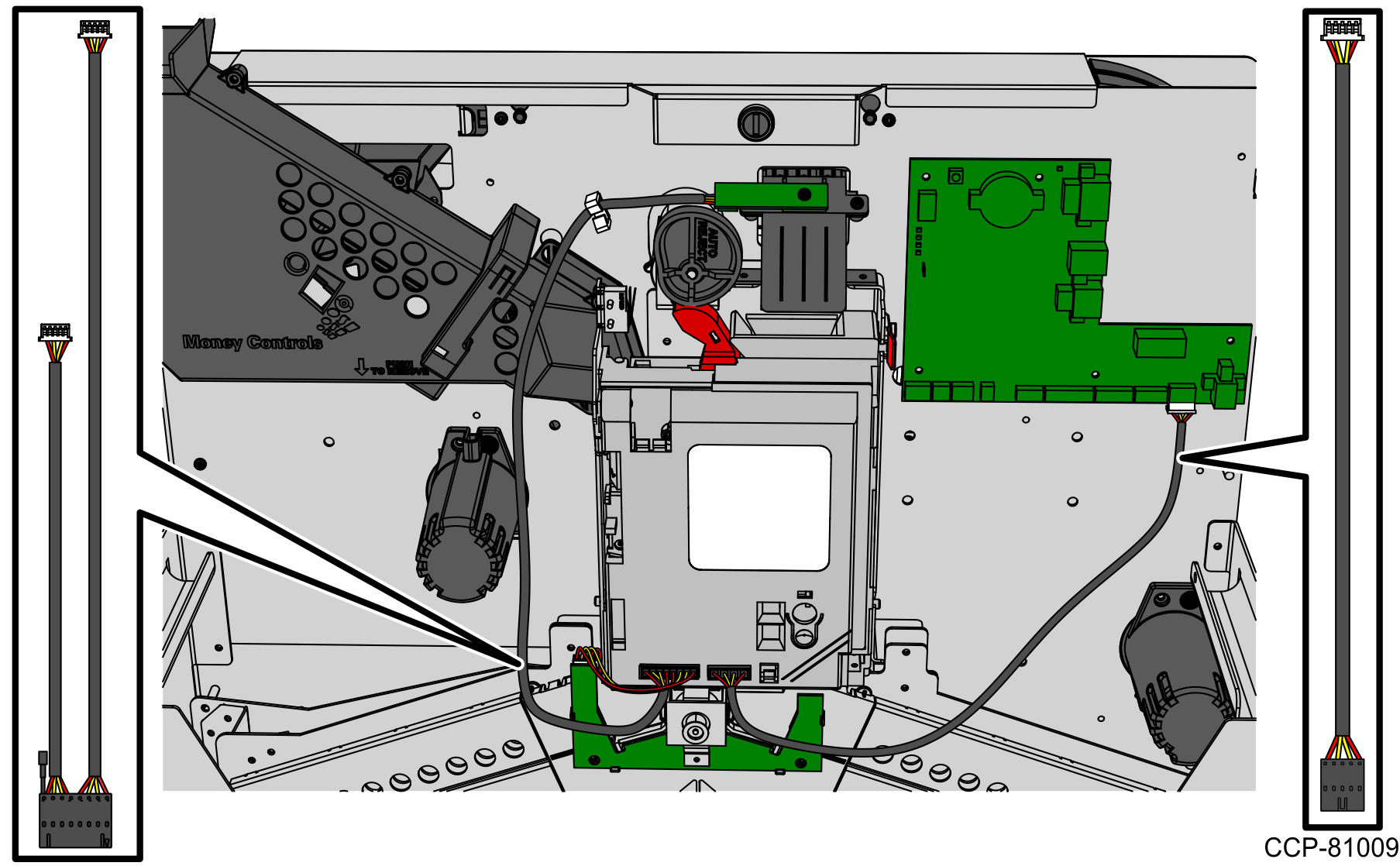

4.Disconnect the following cables from the Coin Acceptor and the Bulk Coin Recycler, as shown in the image below.

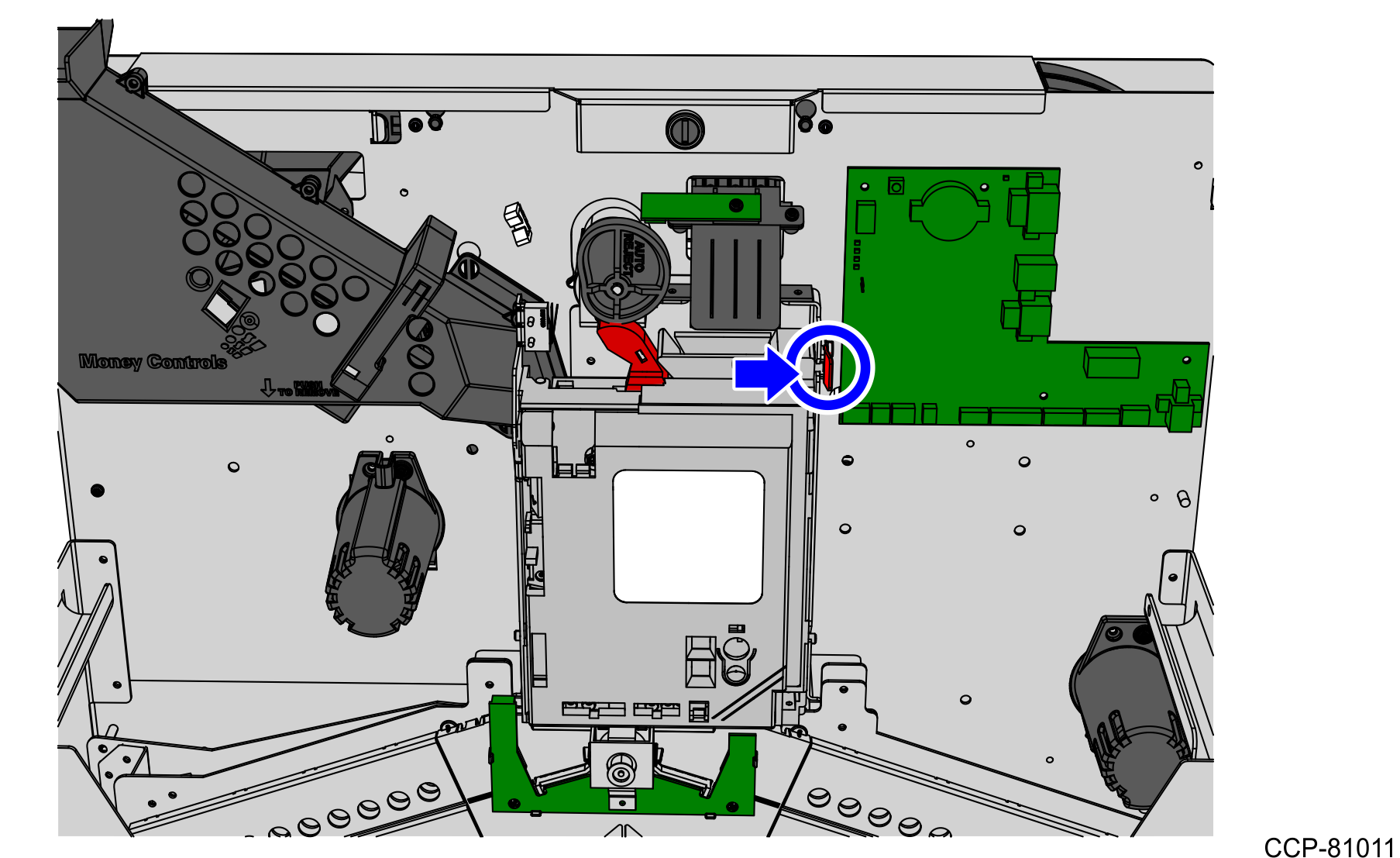

5.Release the red tab on the right side of the Coin Acceptor and pull acceptor toward you.

6.Lift the Coin Acceptor out of the Bulk Coin Recycler.

7.Remove the two cables from the Coin Acceptor (A and B). Disconnect jumper (C).

8.Attach cables to new Coin Acceptor.

9.Insert Coin Acceptor into Coin Recycler unit.
