Turning Off the Hardware System

To turn off the NCR SelfServ™ Checkout (7350) hardware system, follow these steps:

1.Shut down the NCR SelfServ™ Checkout (7350) software system. For more information, refer to Turning Off the Software System.

2.Unlock and then open the NCR SelfServ™ Checkout (7350) external door, using a key. For more information, refer to Opening the Core Door.

3.Do any of the following:

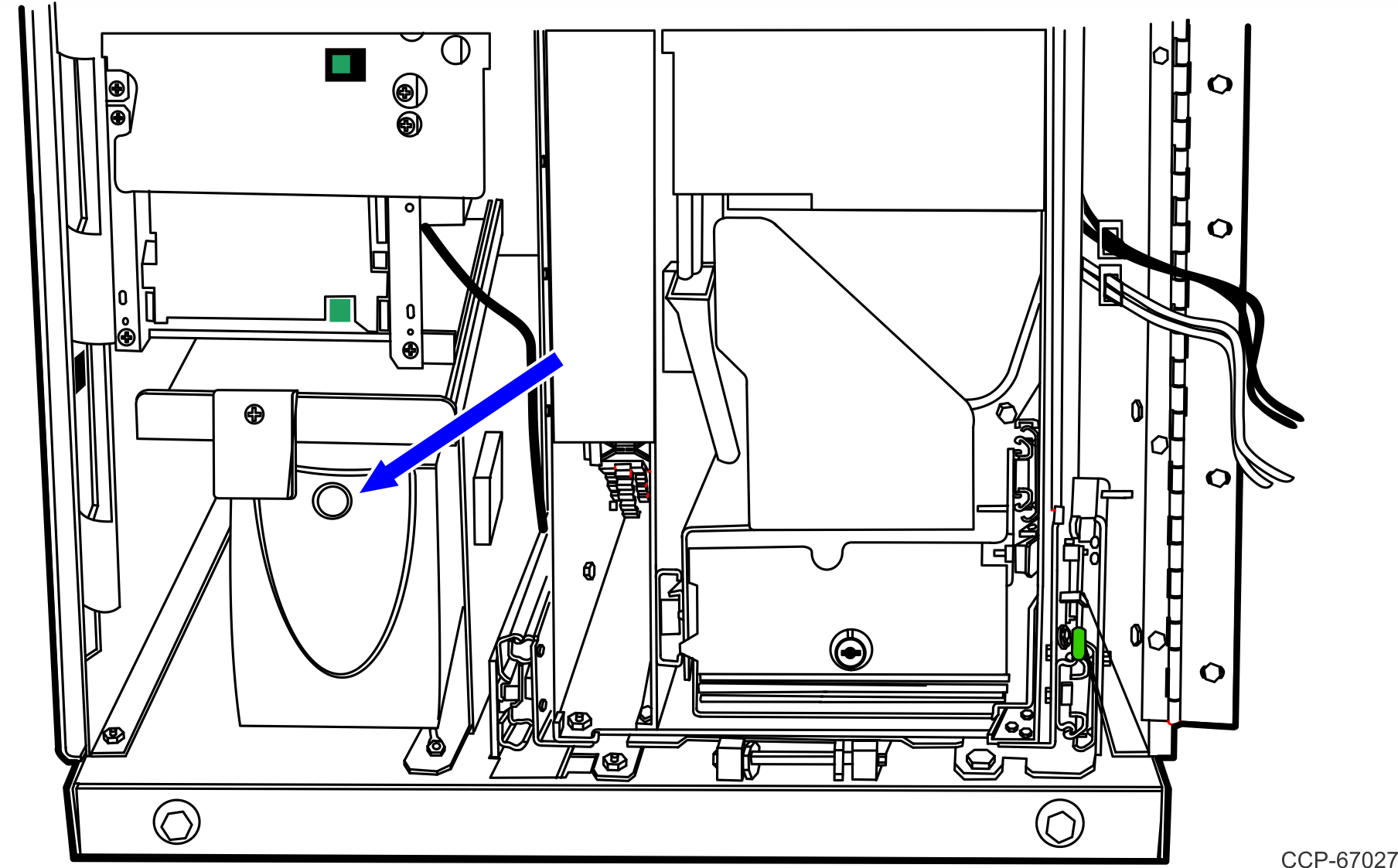

•If the unit is configured with a Universal Power Supply (UPS), turn off the UPS located under the Coin Recycler and then unplug the Power Strip from the dedicated power outlet.

•If the unit is not configured with a UPS, unplug the Power Strip from the dedicated power outlet.

Note:  The Power Strip is located under the bag well for units with bagging options. For units without bagging options, the Power Strip is located behind the back panel.
