7358-K113 3-Bag Bagwell Upgrade
This publication provides procedures for upgrading an NCR FastLane SelfServ™ Checkout (7358), either a No-Bag unit or a unit with an existing Bagwell, with a 3-Bag Bagwell.
The NCR FastLane SelfServ™ Checkout with a Bagging Area (Bagwell) Module or Large Basket (Large Basket) Module can be configured for either Left-hand (LH) orientation or Right-hand (RH) orientation, which refers to the direction customers scan and bag items.
• Left-hand (LH) orientation—Customers scan from left to right.
• Right-hand (RH) orientation—Customers scan from right to left.
Note: The orientation of the unit is determined by the position of the Lower Core (Cabinet) Module in relation to the Bagwell or Large Basket.
Example: The Left-hand (LH) unit has the Cabinet positioned on the left side of the Bagwell or Large Basket.

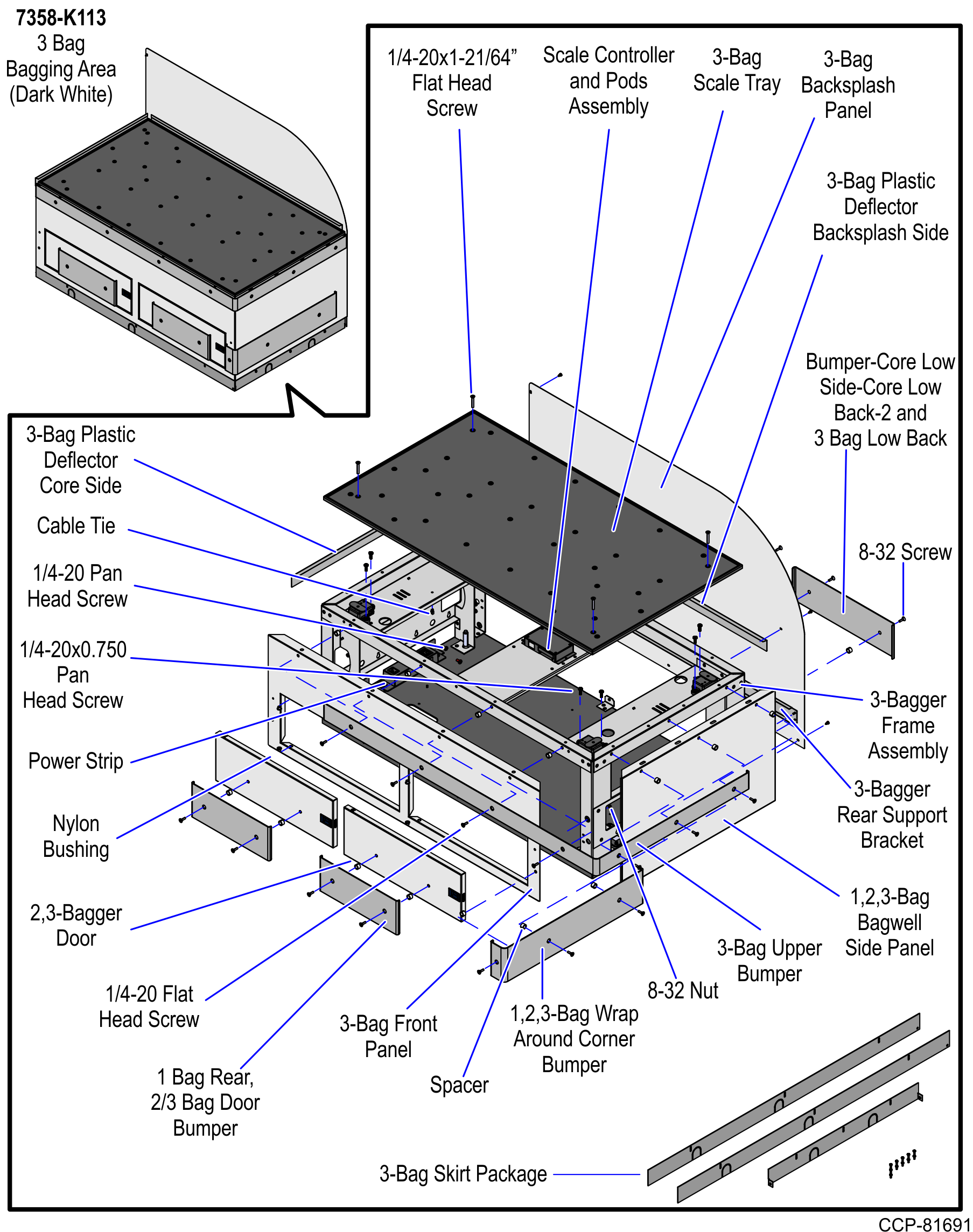

Kit Contents
|
Part Number |
Description |
|
|---|---|---|
|
497-0526494 |
7358-K113 3-Bag Bagwell Upgrade Kit (Dark White) |
|
|
|
795-0283631 |
Assembly - 2 and 3 Bagger Door (NCR Dark White) (2 pcs) |
|
|
795-0133331 |
Panel - 1/2/3 Bagwell Side (NCR Dark White) |
|
|
795-0133231 |
Panel - 3-Bag Backsplash (NCR Dark White) |
|
|
795-0133131 |
Panel - 3-Bag - Front (NCR Dark White) |
|
* |
795-0281601 |
Hole Cover Label - (NCR Dark White) |
|
|
497-0472269 |
3-Bag Scale Tray with Bag Rack Hardware |
|
|
497-0532325 |
Skirt- 3-Bag BOM Package |
|
|
497-0528670 |
Assembly - 3-Bag Frame with Leveling Feet and Casters |
|
|
497-0467814 |
Assembly - Scale Controller and Pods |
|
|
497-0457054 |
Black Nylon Spacer 15 mm OD x 10.4 mm ID x 10 mm L (18 pcs) |
|
|
497-0455522 |
Plastic deflector - Bagwell Backsplash - 3 Bagger |
|
|
497-0455519 |
Plastic Deflector - Core Side |
|
|
497-0518272 |
Bumper - 3-Bag Upper |
|
* |
497-0445077 |
Cable: (Black) 4M USB +Power (12V) to 2x4 Latch-N-Lok |
|
* |
497-0426042 |
Bag - 2 and 3.5 Bagger, LHC and RHC, Input Belt |
|
|
497-0421485 |
Power Strip, IEC 4-POS, Plastic Case |
|
|
006-8616060 |
Screw - ¼-20 x 0.75 in, Pan Head, Phillips, Zinc Plated Steel (8 pcs) |
|
|
009-0005930 |
Cable Tie-Snap in Mounting (3 pcs) |
|
|
006-8612492 |
Screw - ¼-20 x 0.750 in, Phillips Flat Head, 82 Degree, Machine Thread, Zinc-Plated Steel (18 pcs) |
|
|
006-8612446 |
Screw - 8-32 x 0.375 in Phil Pan, Self Tapping - Type F (9 pcs) |
|
|
006-8623998 |
Screw - ¼-20 x 1-21/64 in, Phillips Flat Head, 82 Degree, Machine Thread, Zinc-Plated Steel (4 pcs) |
|
|
006-8611505 |
Bushing, Nylon (4 pcs) |
|
|
006-8611143 |
Nut Keps, 8-32, Steel, Blue Zinc (9 pcs) |
|
|
006-8604541 |
Screw, ¼-20 x ½, Pan Head, Phillips (4 pcs) |
|
* |
497-0513382 |
Label - Multiple Power Sources/ Disconnect Power Caution |
|
|
007-9714414 |
Tiestrap Plain 5.60 LG (2 pcs) |
|
|
497-0455675 |
Bracket - Rear Support - 3 Bagger |
|
|
497-0518274 |
Bumper - 1 Bag Rear, 2/3 Bag Door (2 pcs) |
|
|
497-0518276 |
Bumper - Core Low Side - Core Low Back - 2 and 3 Bag Low Back (2 pcs) |
|
|
497-0518277 |
Bumper - 1, 2, 3 Bag Side, Wrap Around Corner |
|
* |
497-0423108 |
Instructions - Kit (Reference Sheet) |
* Items marked with an asterisk are not called out on the image.
