Installing Bag Racks

To install the bag racks on the Bagwells, follow these steps:

Note

The Large Basket (Basket) Module can hold up to four (4) bag racks (497-0509740) that are ordered separately. To order bag racks, contact an NCR Customer Service Representative.

  1. Ensure that the Corner Bagwell and V-Bagwell are installed. For more information, refer to the following:
  2. Clean the top cover tray with alcohol or non–residue cleaner to remove any dust or dirt and then identify the specific location where to mount the bag racks.
  3. Remove the hole plugs from the top cover tray.

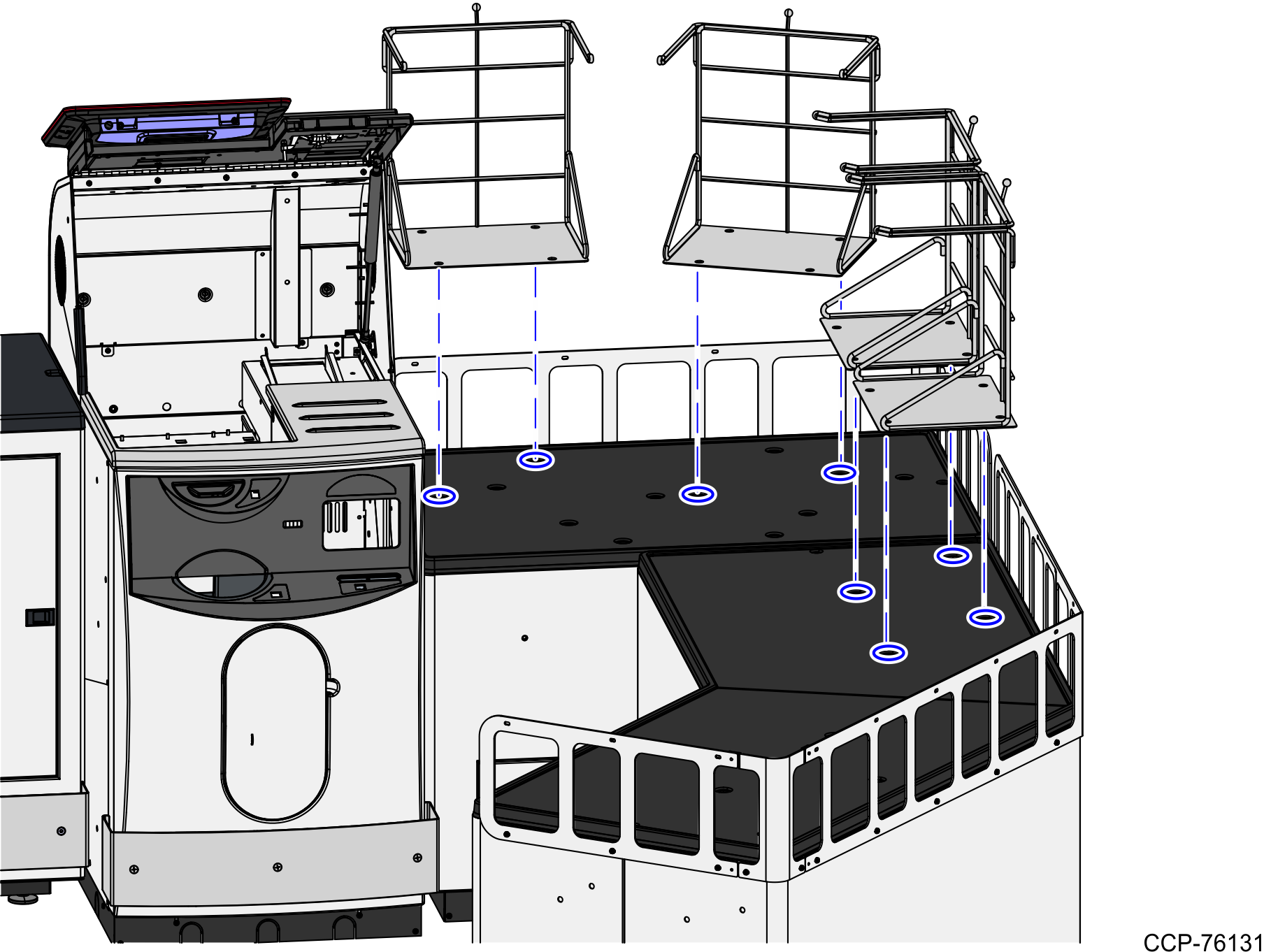

  4. Secure each bag rack to the top cover tray using two (2) screws, as shown in the image below.
    Note

    Attach the screws on opposite corners.
