Routing Cables to Power Pole

To route cables from the Core Cabinet to the Power Pole, follow these steps:

Note:  For the purpose of illustration only, this procedure shows images using a Left-hand (LH) orientation unit.

1.Bundle all cables going to the Power Pole using cable ties.

2.Route the cables to the Corner Bagwell through the side cable access hole.

3.Route the cables down to the floor through the large rectangular cutout in the Corner Bagwell floor, as shown in the image below.

Note:  For the purpose of illustration only, the image below shows one (1) cable only.

4.Do the following:

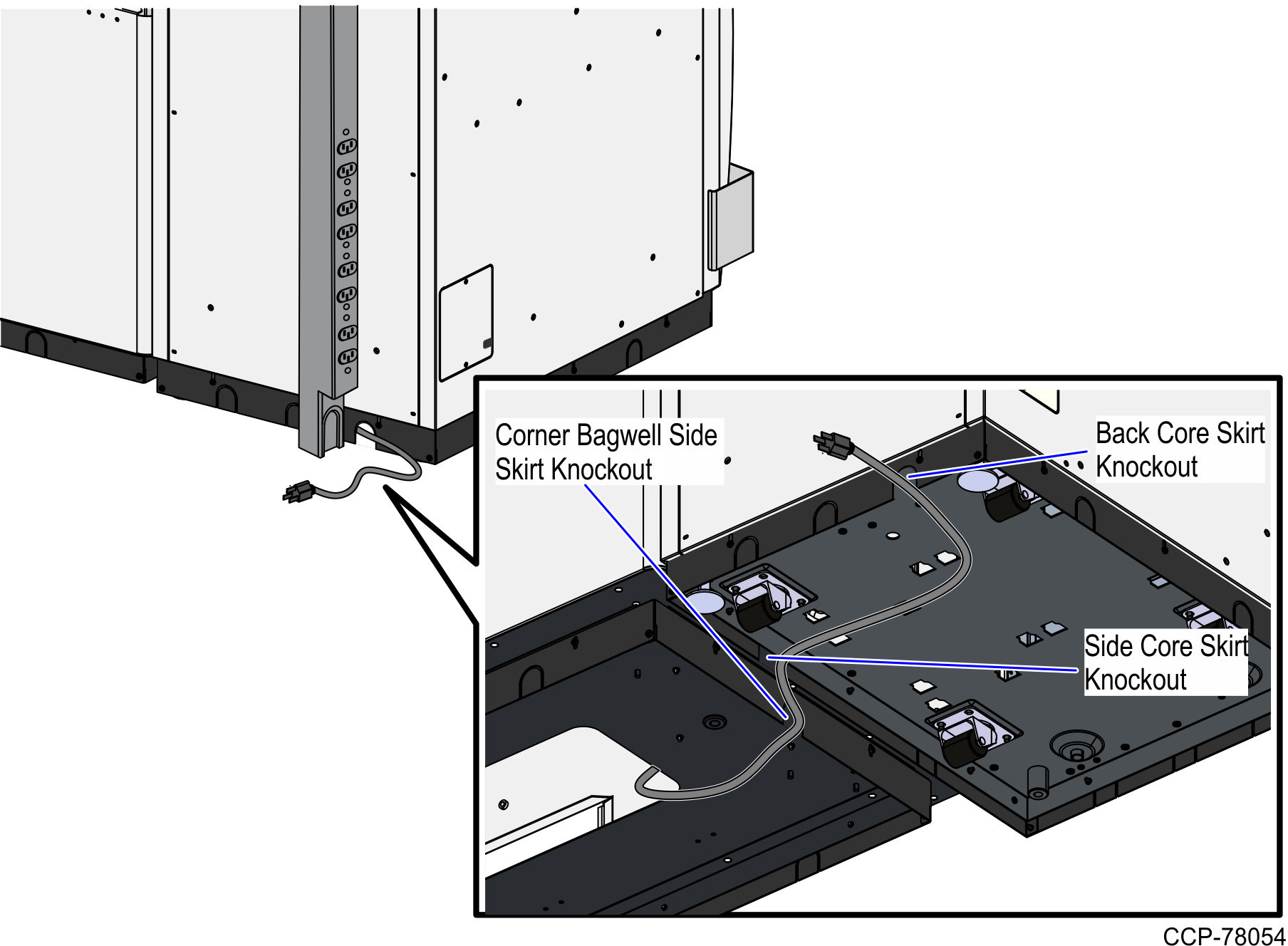

a.Route the cables through the Bagwell and Core Cabinet Side Skirt knockouts.

b.Route the cables out through the back core skirt knockout near the Power Pole, as shown in the image below.

Note:  For the purpose of illustration only, the image below shows one (1) cable only.

5.Connect the cables to the Power Pole.
