Removing Fences

To remove the fences, follow these steps:

1.Remove the fences from the V-Bagwell by doing the following:

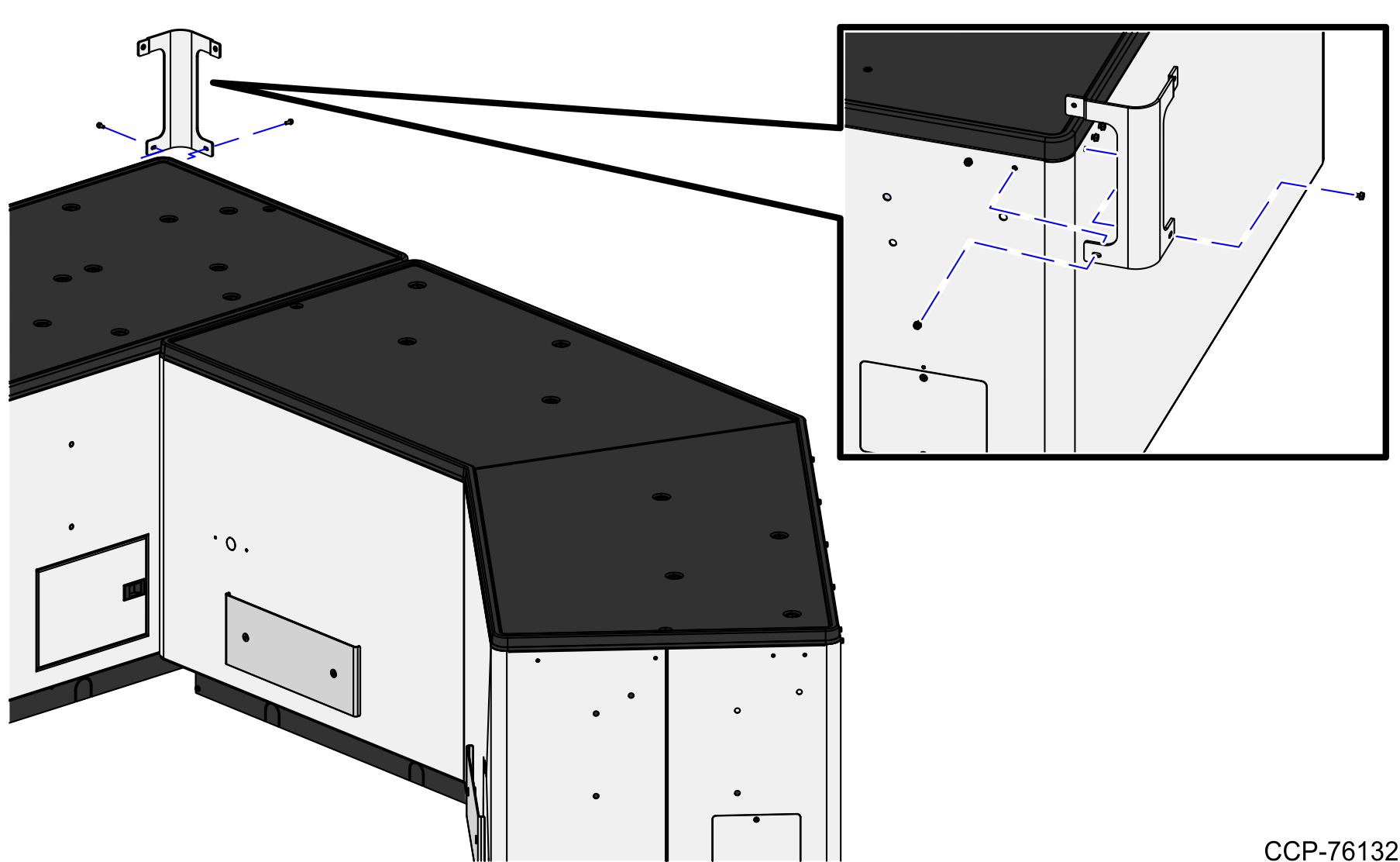

a.Remove the two (2) screws securing each side fence to the corner fence, as shown in the image below.

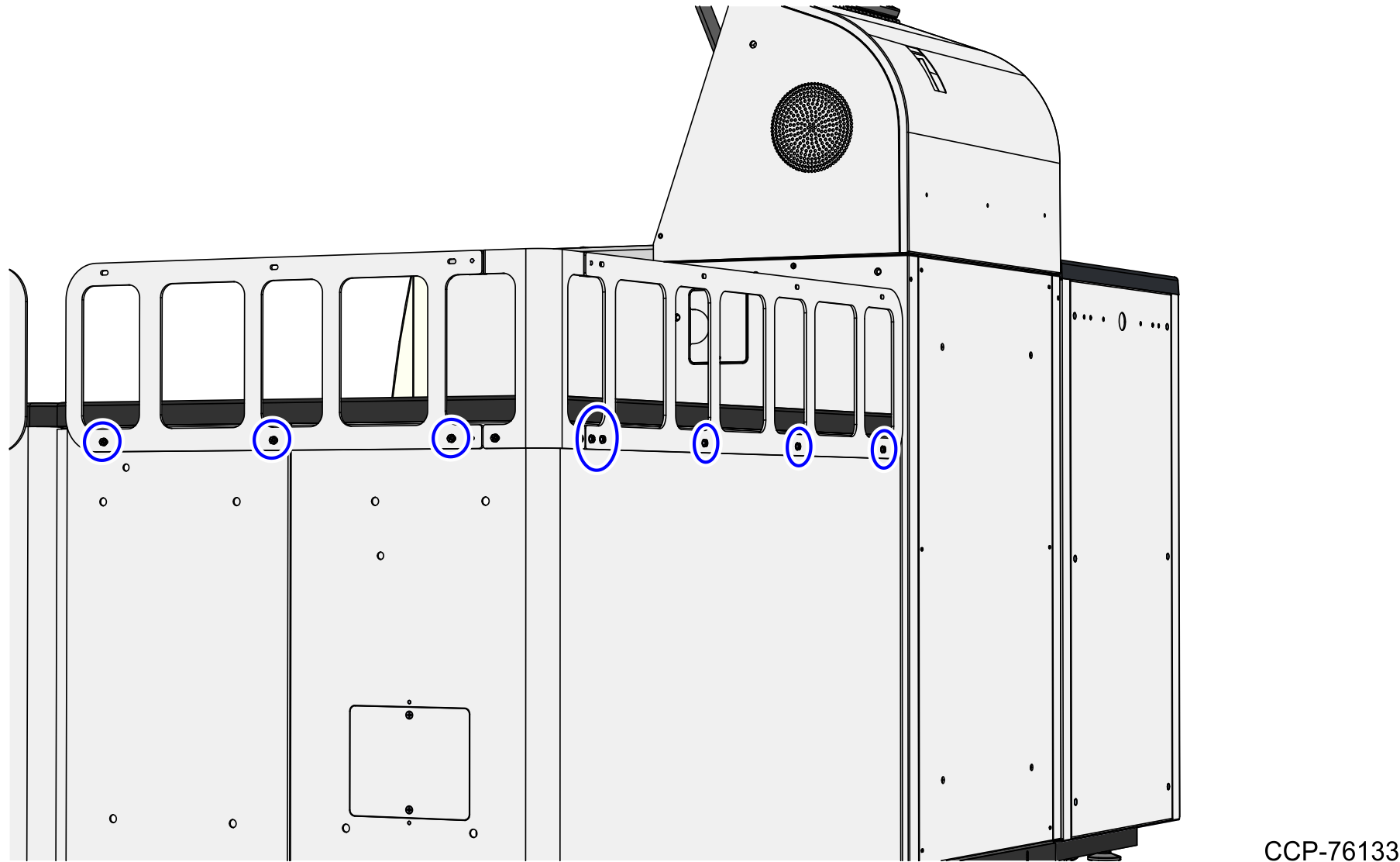

b.Remove the 13 screws securing the side fences on the V-Bagwell, as shown in the image below.

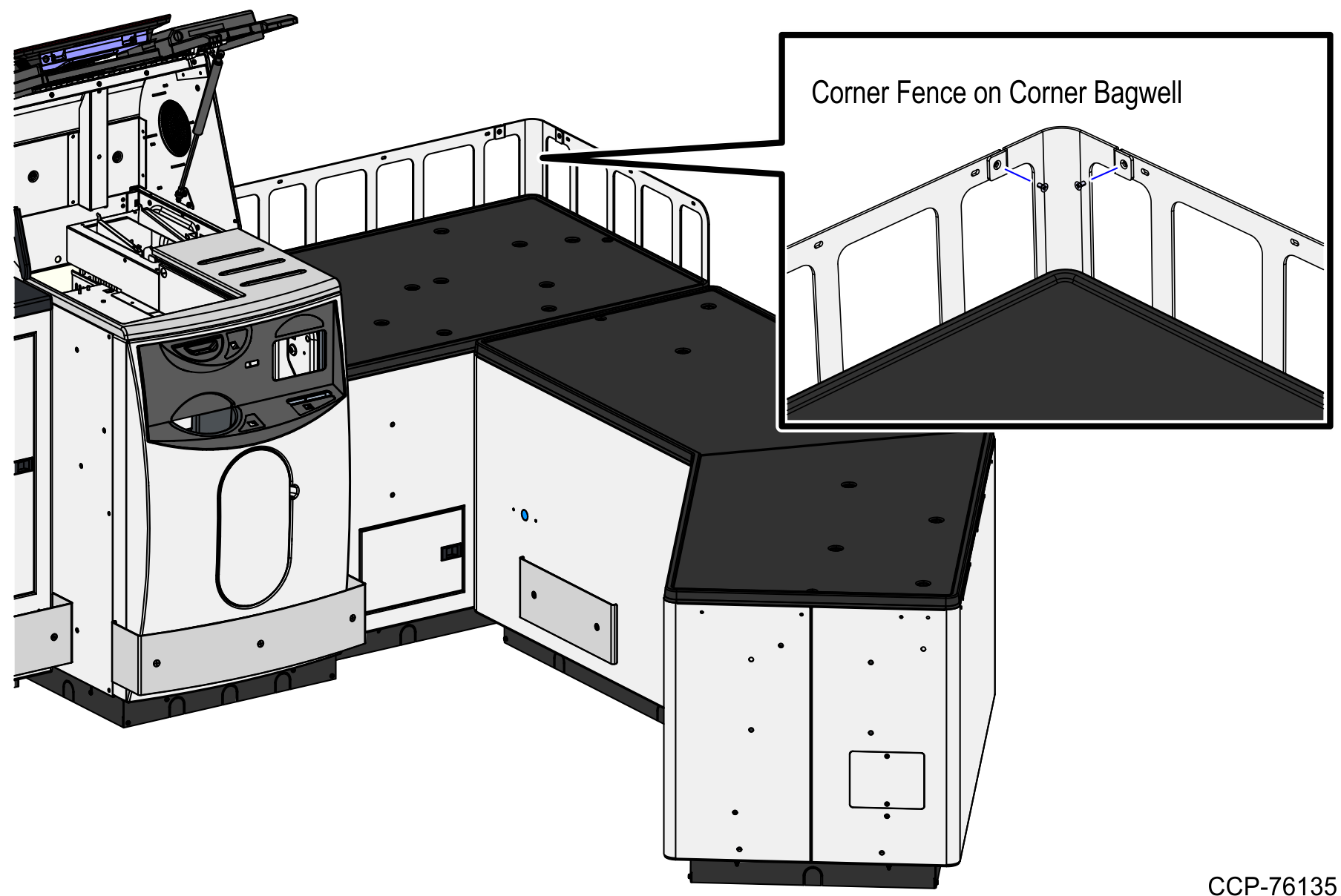

c.Remove the two (2) screws securing the corner fence on the V-Bagwell, as shown in the image below.

2.Remove the fences from the Corner Bagwell by doing the following:

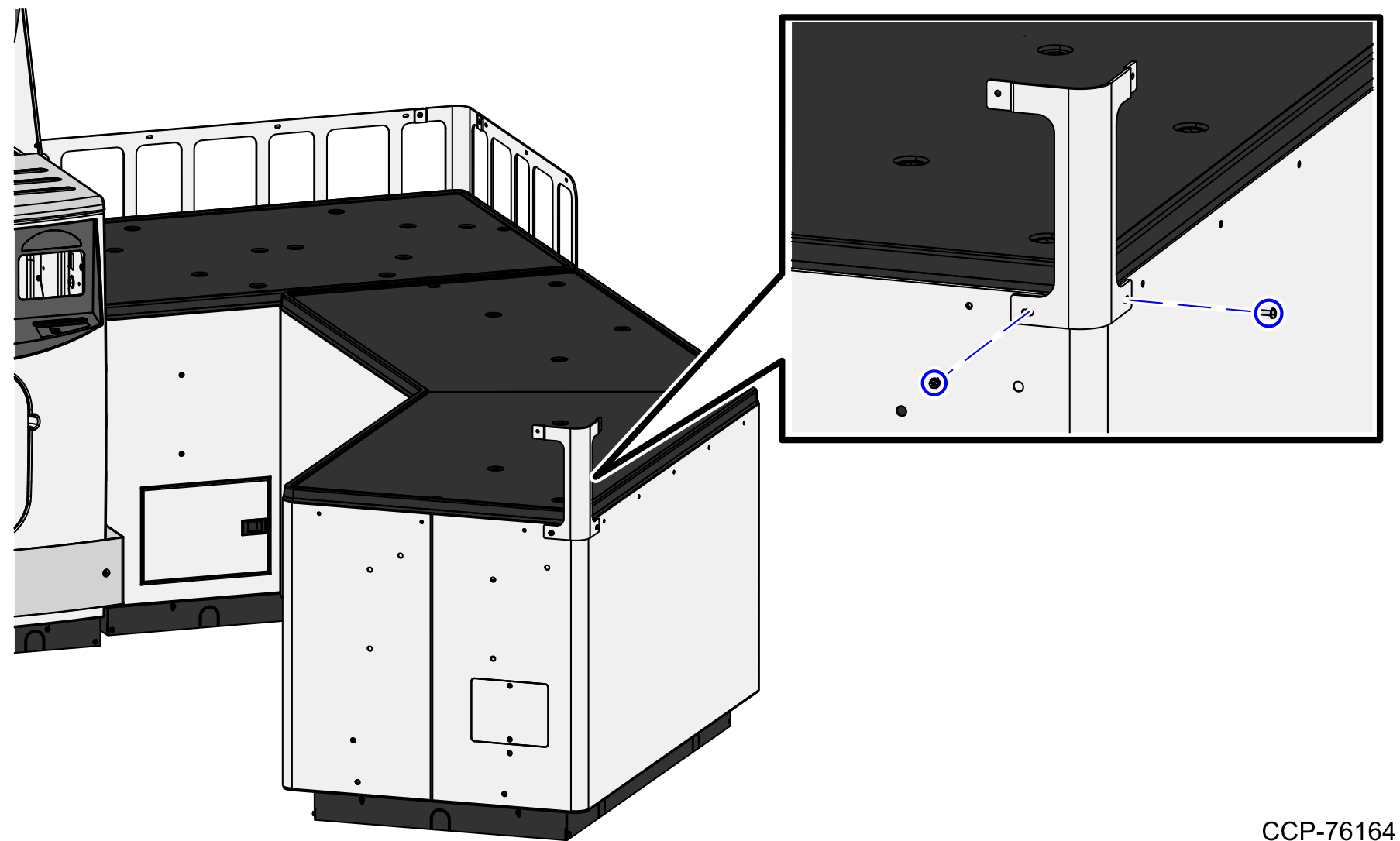

a.Remove the two (2) screws securing each side fence to the corner fence, as shown in the image below.

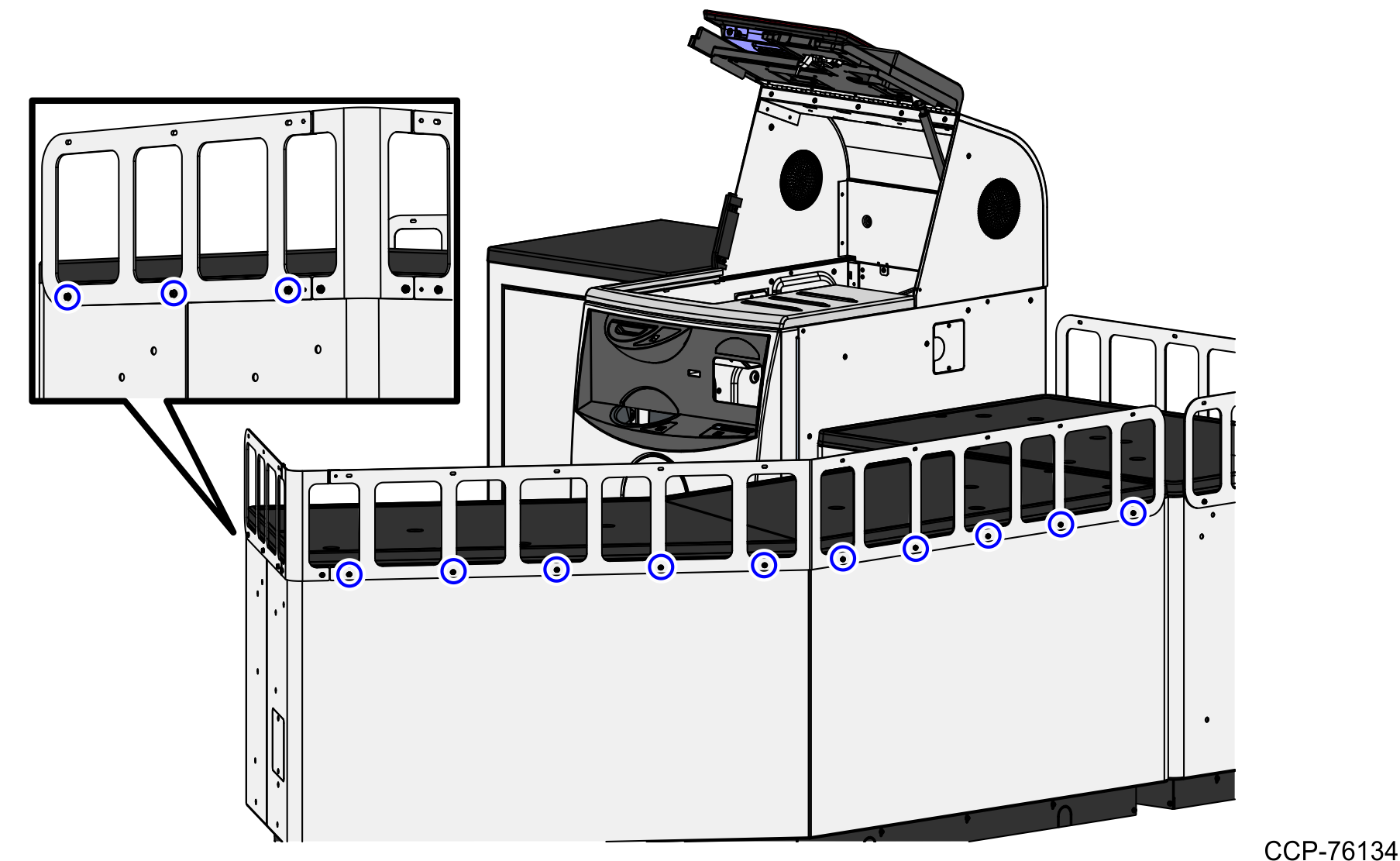

b.Remove the seven (7) screws securing the side fences on the Corner Bagwell, as shown in the image below.

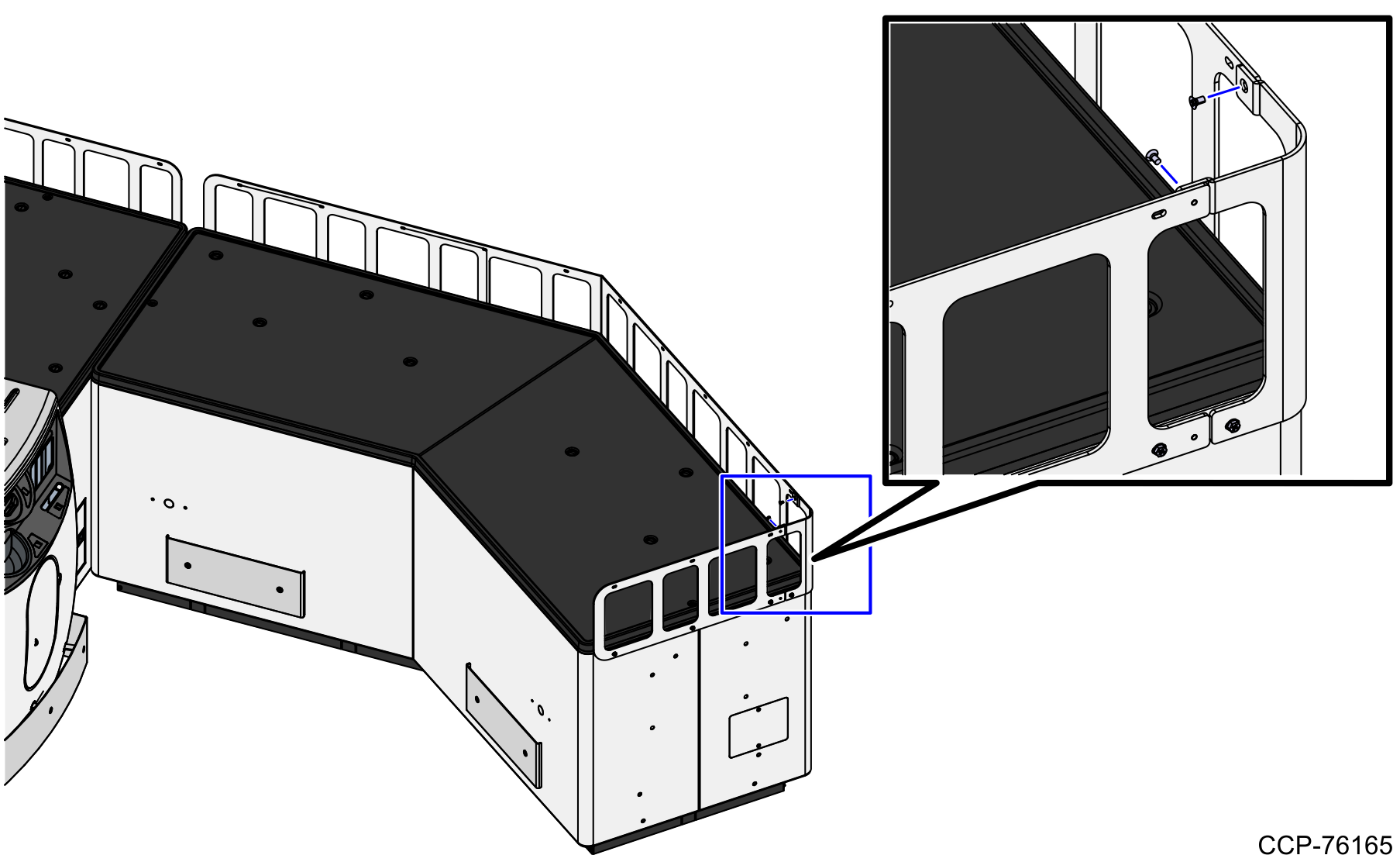

c.Remove the two (2) screws securing the corner fence on the Bagwell using , as shown in the image below.
