Installing Power Pole Cover Assembly

To install the Power Pole Cover Assembly, follow these steps:

Note

For the purpose of illustration only, this procedure shows images using Left-hand (LH) orientation.

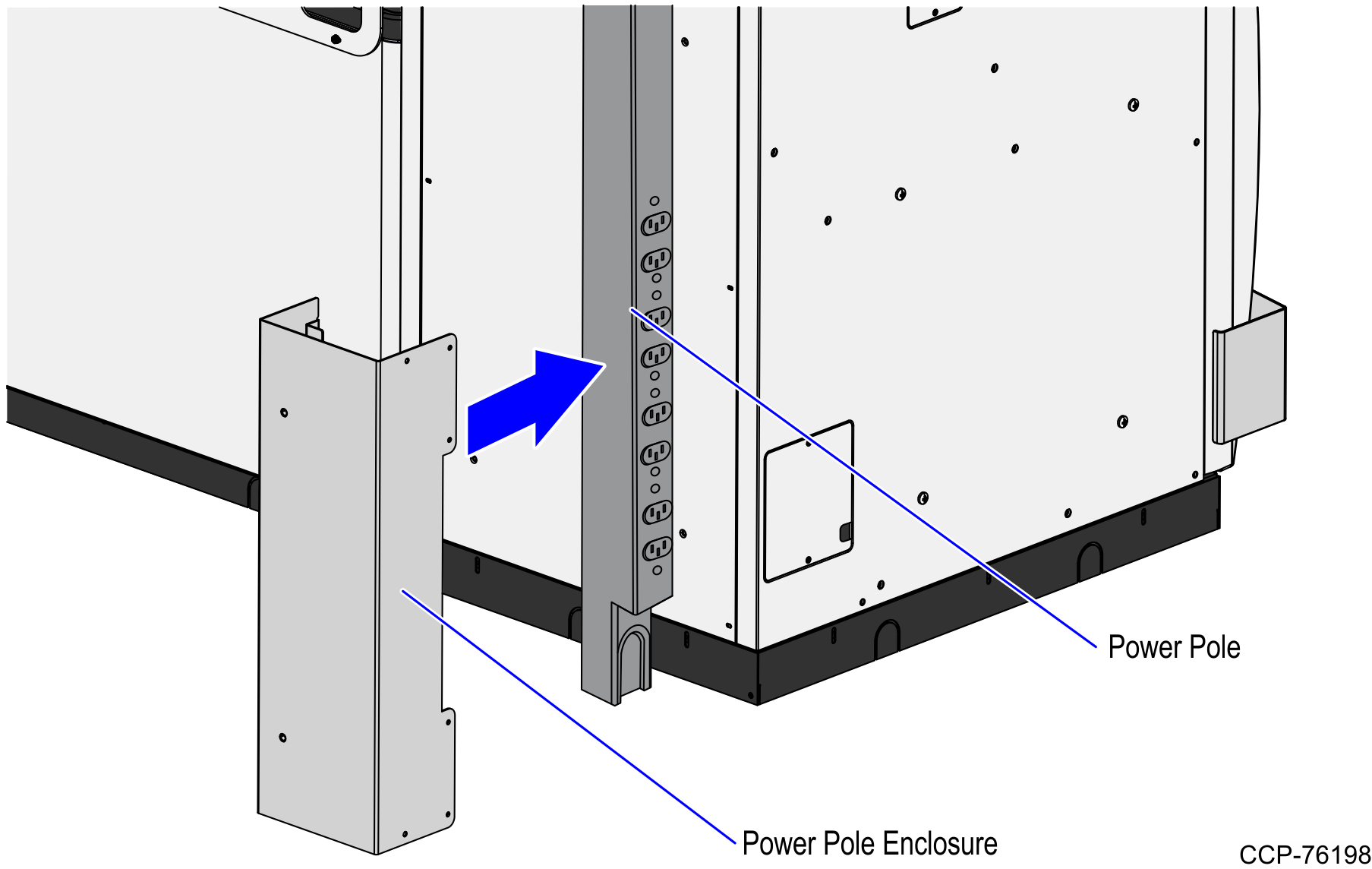

  1. Position the Power Pole Enclosure at the back of the SelfServ Checkout unit, as shown in the image below.

  2. Do the following:

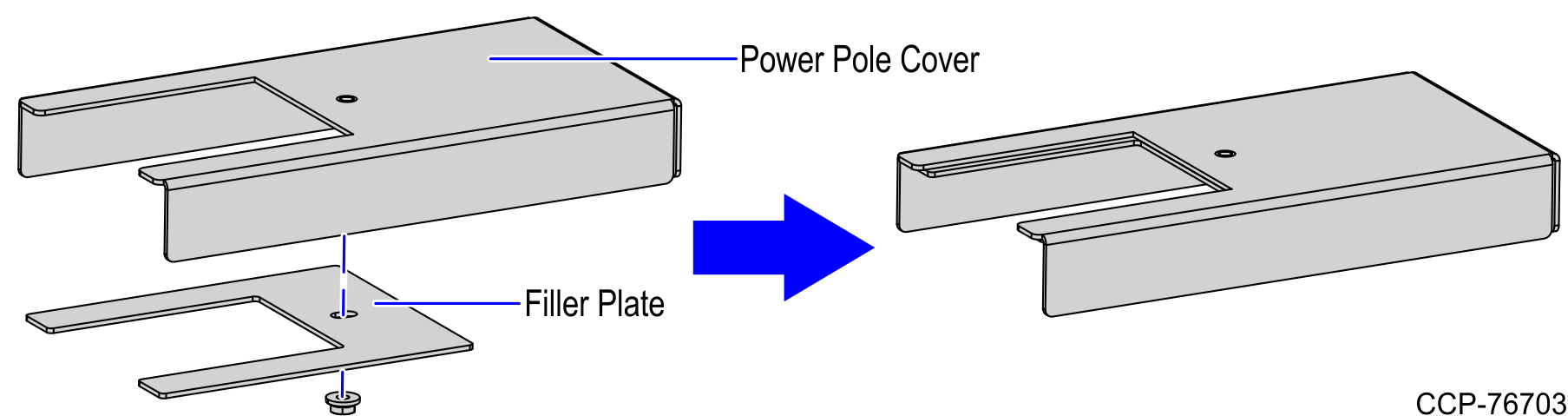

    1. Secure the filler plate to the Power Pole Cover using a nut.

    1. Mount the Power Pole Cover on the Power Pole enclosure and then secure using a screw.

  3. Do the following:
    1. Secure the Power Pole Enclosure on the SelfServ Checkout unit using three (3) self drilling screws.

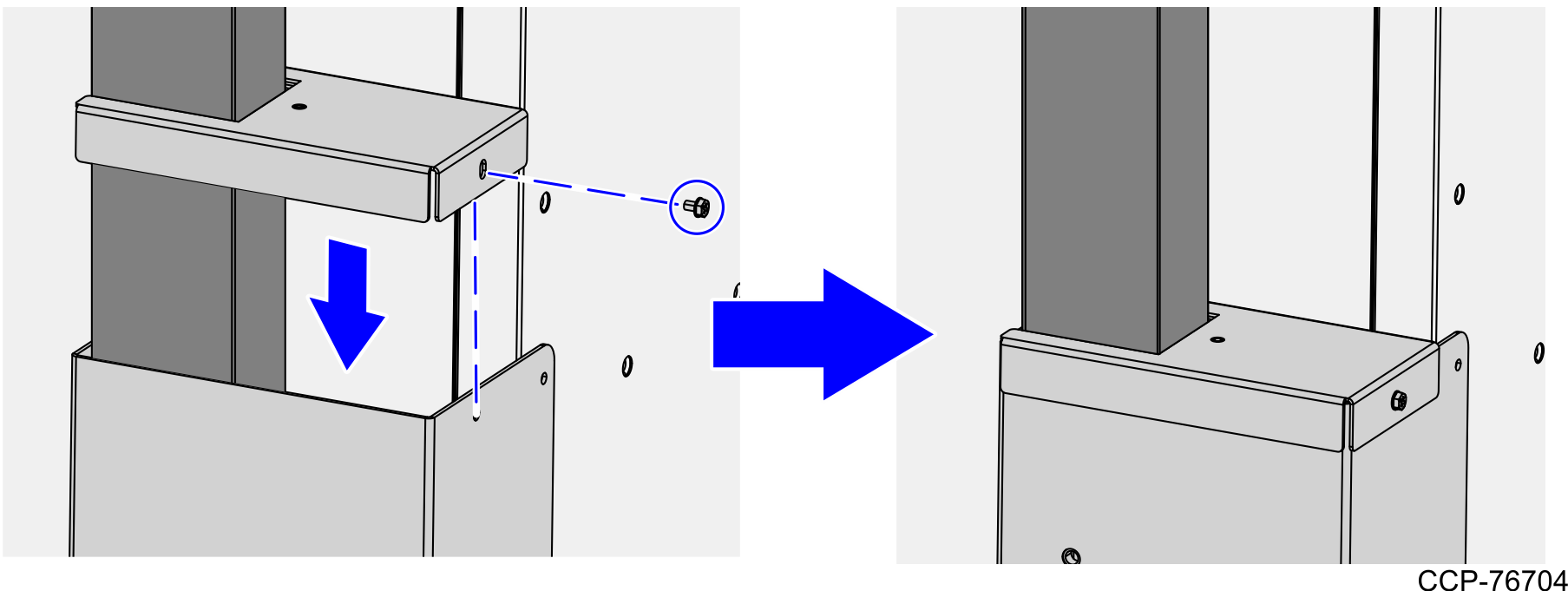

    2. Secure the Power Pole Enclosure to the Power Pole using a screw to hold the pole in place, as shown in the image below.
