Installing Input Counter Bumper

To install the Input Counter Bumper, follow these steps:

1. Open the Input Counter Door, if necessary.

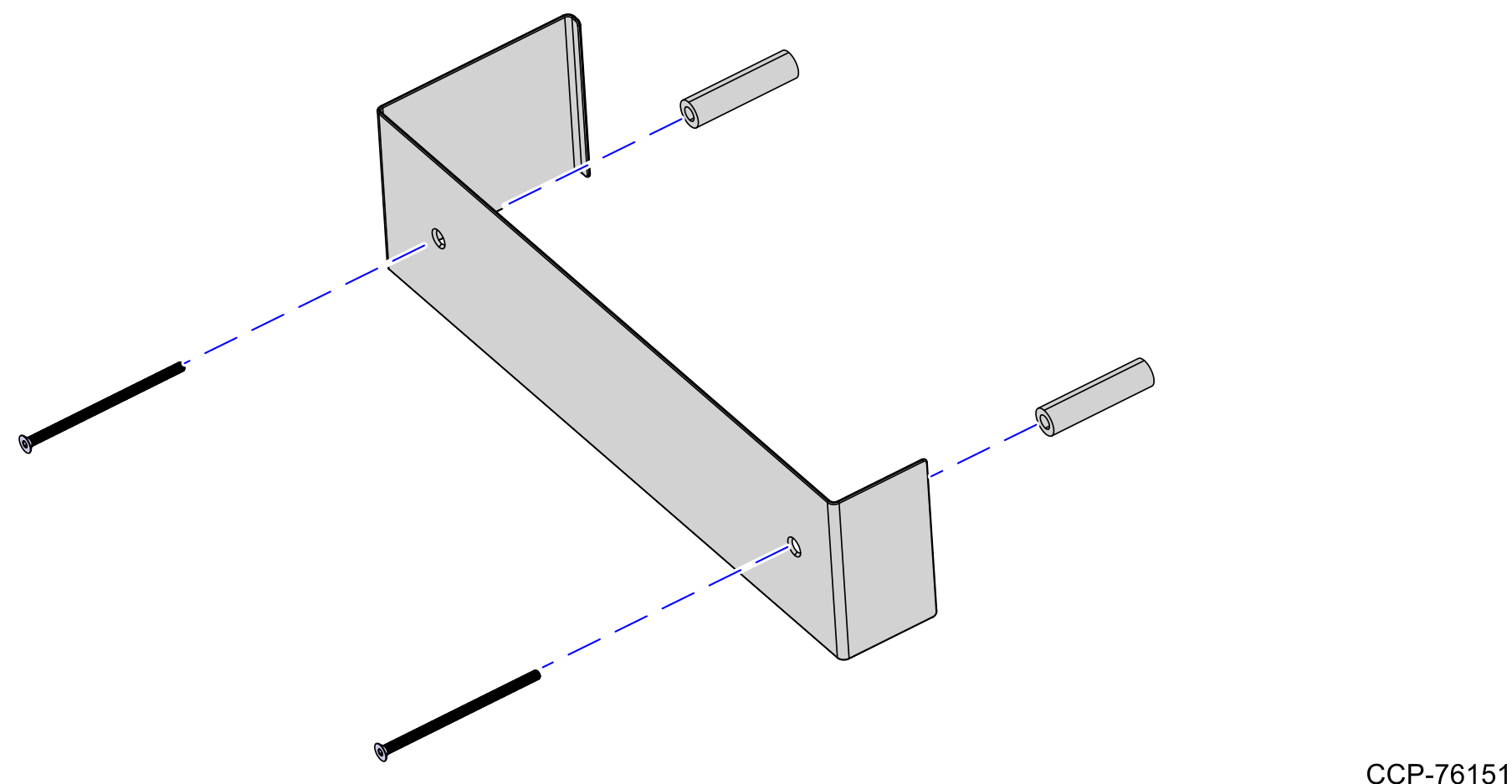

2. Fasten two (2) spacers on the Bumper using two (2) screws.

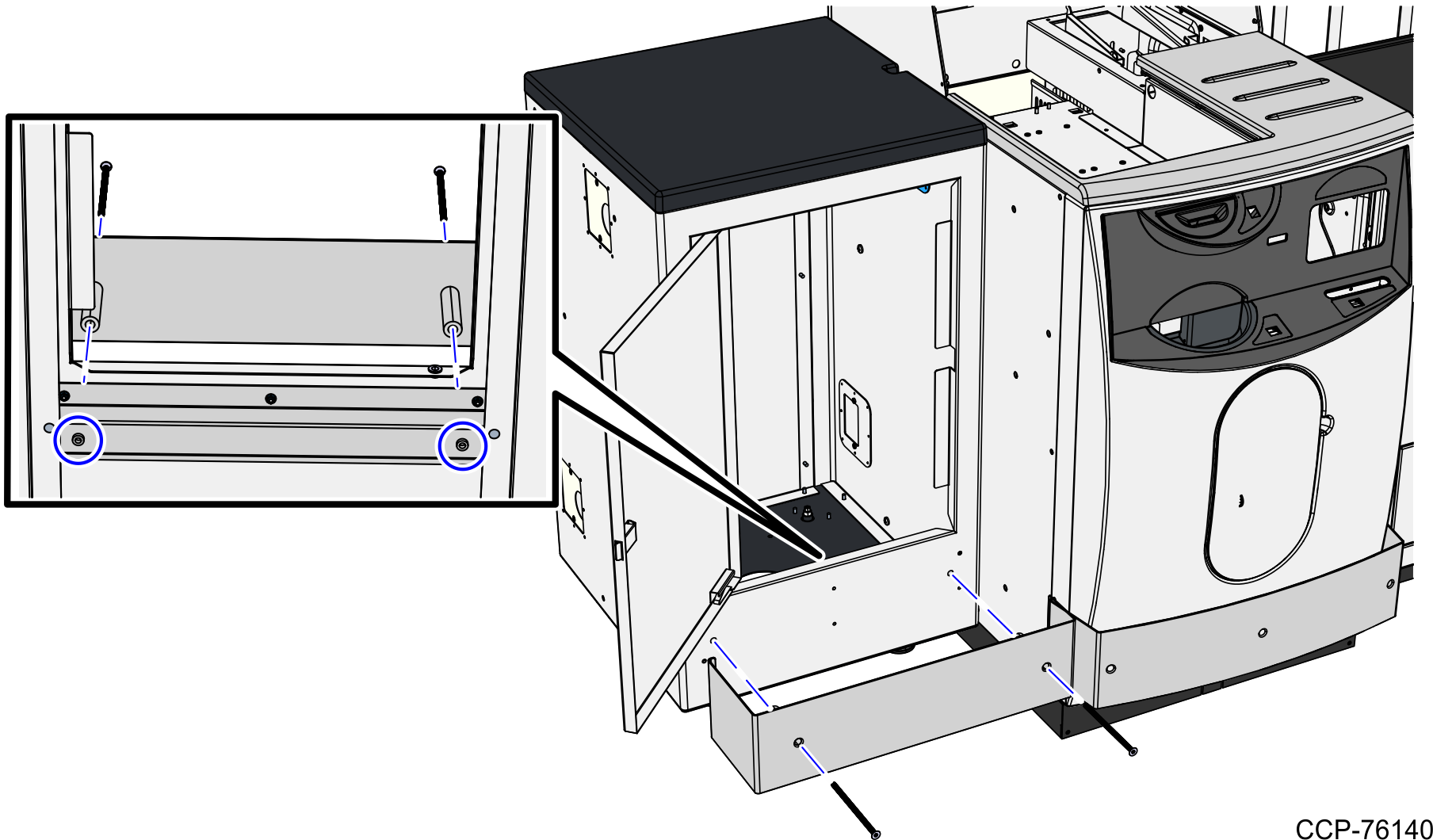

3. Position the Bumper by aligning the screws with the holes on the Input Counter and then secure the Bumper using two (2) nuts, as shown in the image below.



4. Close the Input Counter Door.
   Note

   Ensure that the door is locked by pushing the door until an automatic lock click is heard.
