7358-K582 Bottom-of-Basket Camera
The Bottom-of-Basket (BoB) Camera captures the lower cart shelf to monitor transactions that may involve theft or improper cash management. It can also help improve the management of the store's inventory. This publication provides procedures for installing the BoB Camera on a Large Basket Module.
The NCR FastLane SelfServ™ Checkout with a Bagging Area (Bagwell) Module or Large Basket (Large Basket) Module can be configured for either Left-hand (LH) orientation or Right-hand (RH) orientation, which refers to the direction customers scan and bag items.
• Left-hand (LH) orientation—Customers scan from left to right.
• Right-hand (RH) orientation—Customers scan from right to left.
Note: The orientation of the unit is determined by the position of the Lower Core (Cabinet) Module in relation to the Bagwell or Large Basket.
Example: The Left-hand (LH) unit has the Cabinet positioned on the left side of the Bagwell or Large Basket.

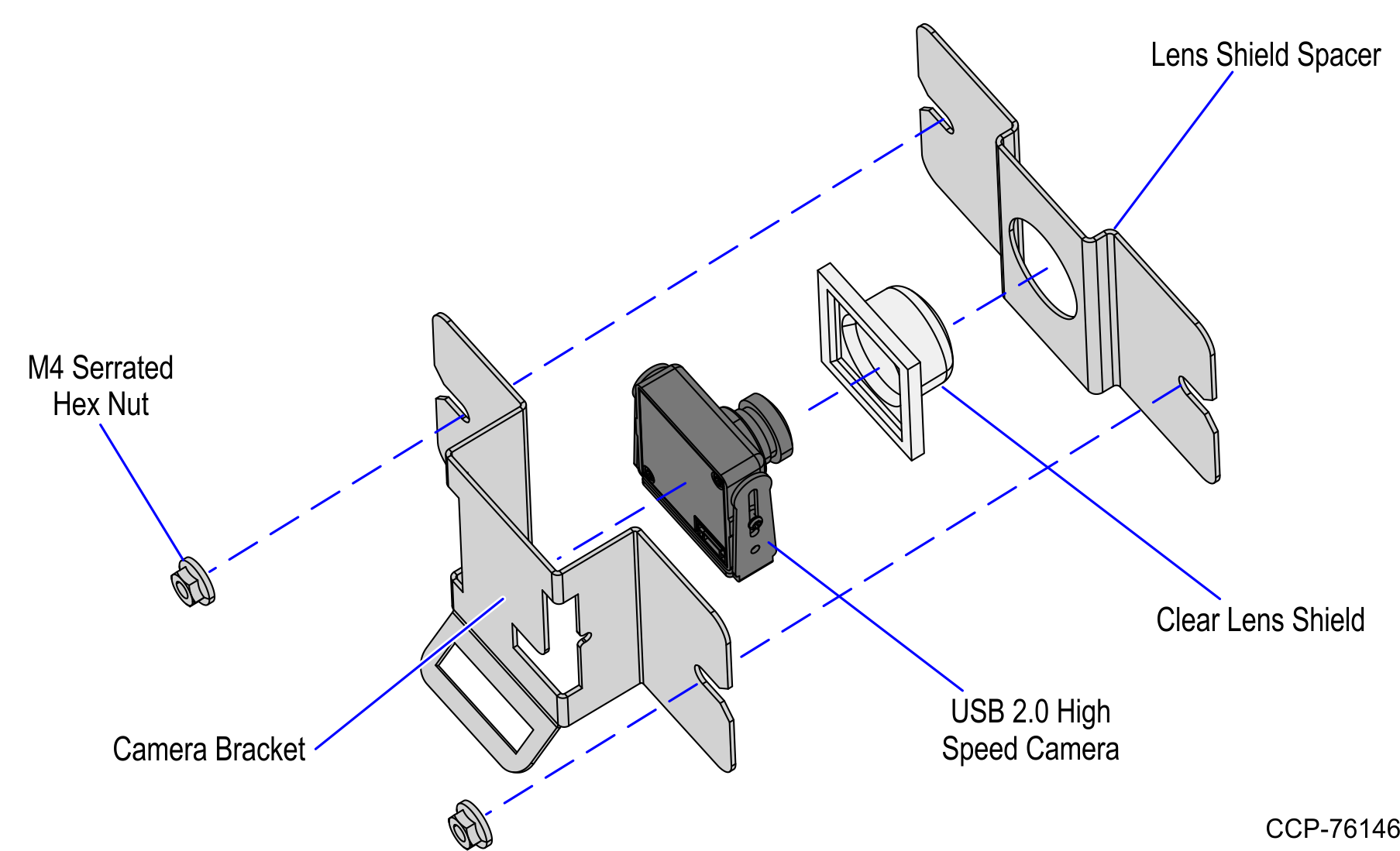

Kit Contents
|
Part Numbers |
Description |
|
|---|---|---|
|
497-0524617 |
7358-K582 KIT - BOTTOM OF BASKET CAMERA |
|
|
* |
497-0525400 |
Assembly - USB 2.0 High Speed Camera with 6m USB cable |
|
|
497-0523191 |
Clear Lens Shield |
|
|
497-0524539 |
Camera Bracket Assembly •Serrated Nut-Self Locking (Hex, M4, 4.2) (2 pcs) •Lens Shield Spacer •Camera Bracket |
|
* |
007-9714414 |
Tie Strap Plain 5.60 LG |
|
* |
497-0423108 |
Instructions-Kit (Reference Sheet) |
* Items marked with an asterisk are not called out on the image.
