Installing Bumpers

There are two bumpers to be installed on the V-Bagwell. To install the bumpers, follow these steps:

Note

For the purpose of illustration only, this procedure shows images using Left-hand (LH) orientation.

  1. Remove the top cover tray to access the mounting holes, if necessary.

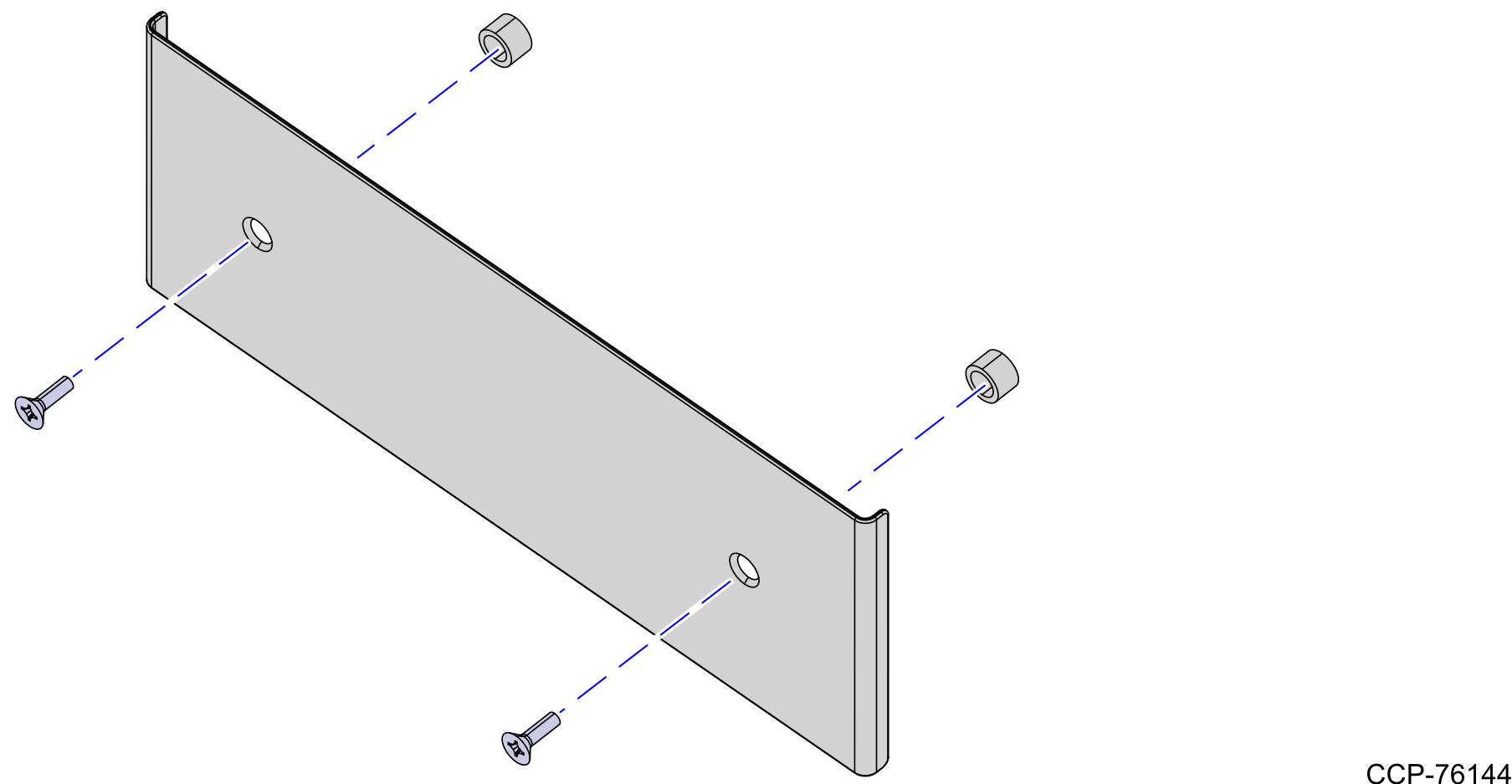

  2. Fasten two (2) spacers on the Bumper using two (2) screws.

  3. Do the following:

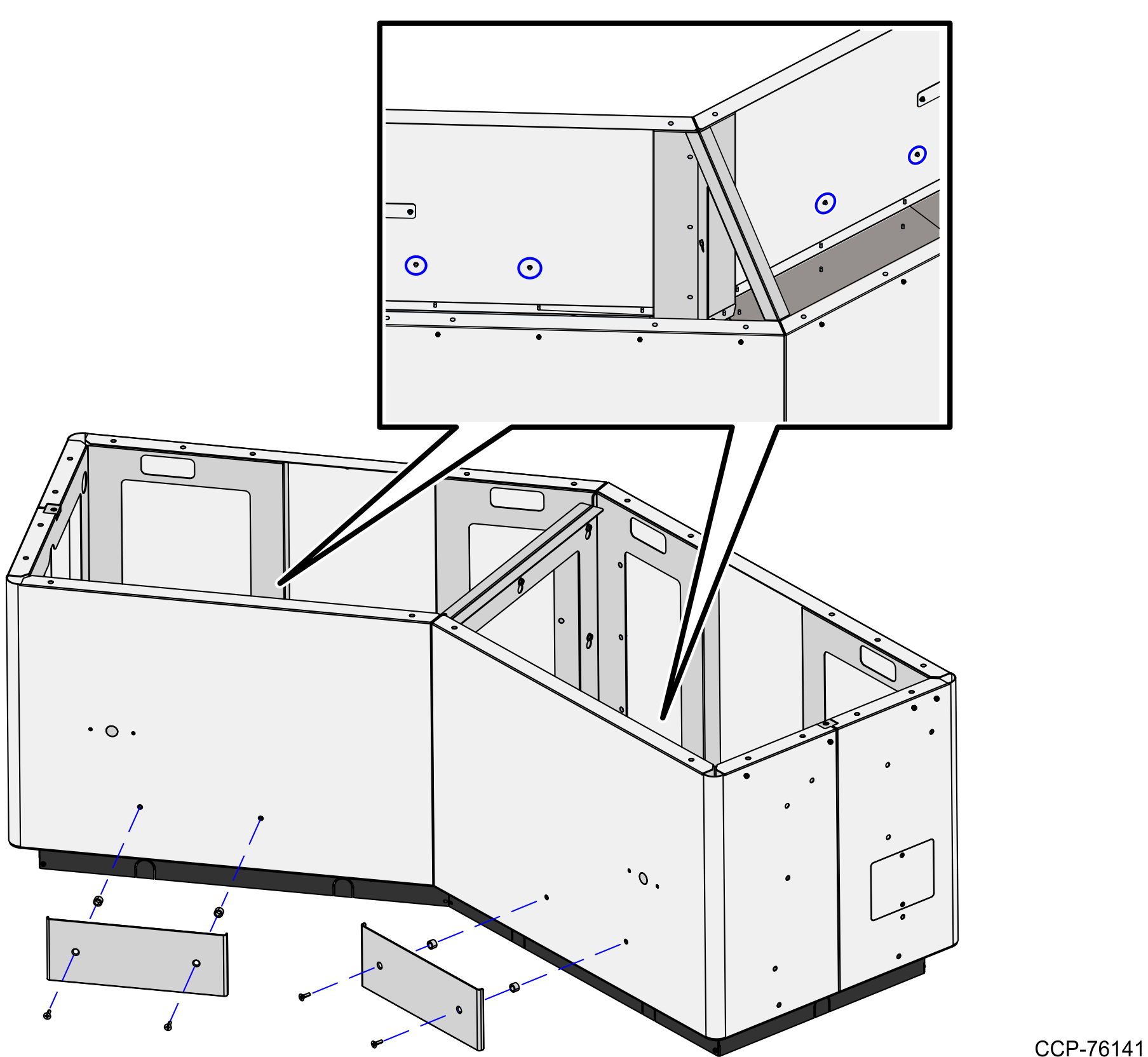

    1. Position the assembly so that the screws are aligned with the holes on the V-Bagwell.

    1. Secure each Bumper on the Bagwell using two (2) nuts.
  4. Install the top cover tray to close the V-Bagwell.

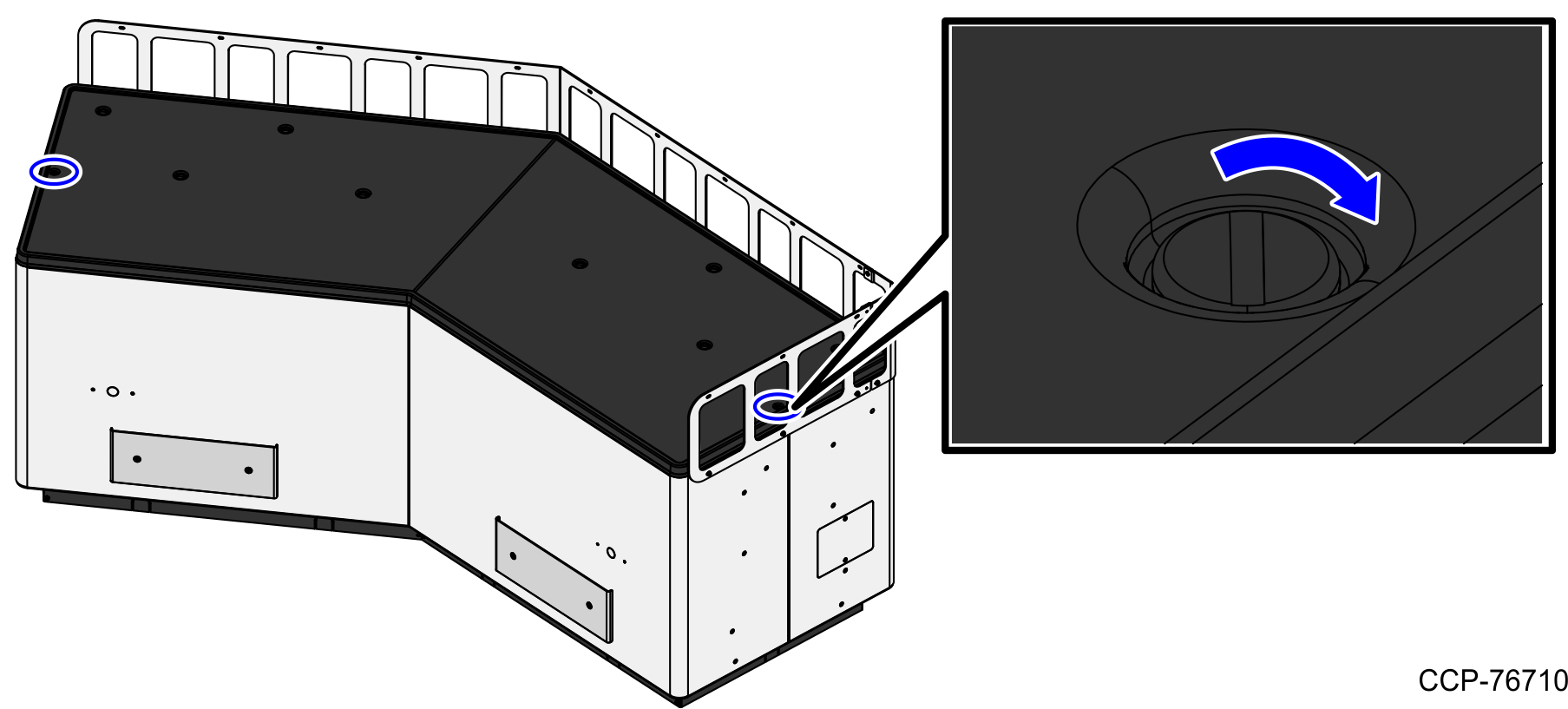

  5. Push and turn the Service screws clockwise to lock the top cover trays in place, as shown in the image below.
