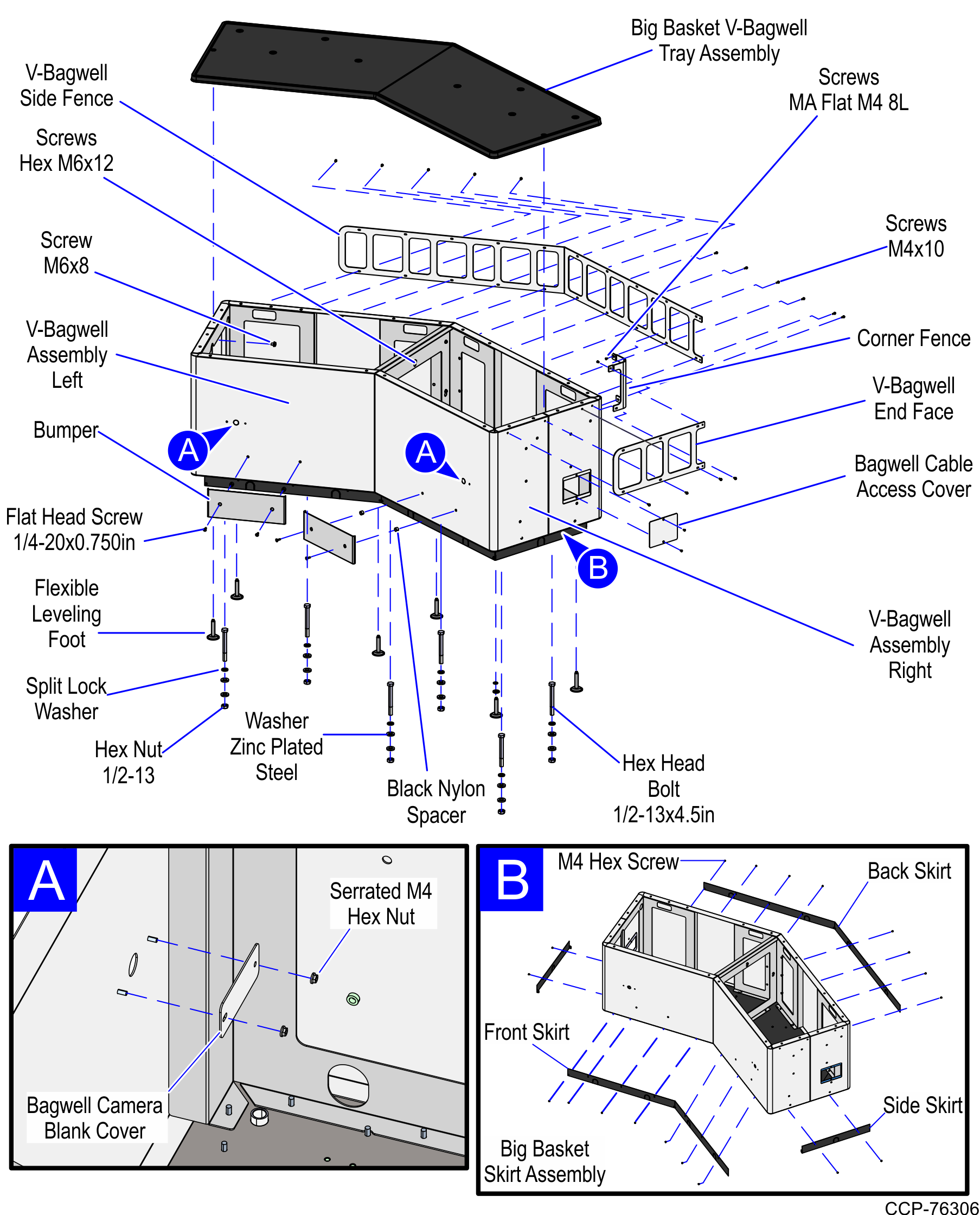

7358-K589 V-Bagwell Module (NCR Dark White)

Note: For the purpose of illustration only, this image shows a unit with Left-hand (LH) orientation.

Part Number		Description
497-0527599		Kit - Large Basket Angled Module (NCR Dark White)
	006-8627719	Split Lock Washer, Zinc-Plated Steel,½ in Screw Size (6 pcs)
	006-8612443	Flexible Leveling Foot - 2 in Dia. (5/16 in Hex x 3.25 in Length) (6 pcs)
	006-8627720	Washer, Zinc-Plated Steel, ½ in Screw Size (12 pcs)
	795-0274931	Walmart, V-Bagwell Assembly, Right (NCR Dark White)
	006-8625423	Bolt - Hex Head, ½-13 x 4.5 in, With Nylon Patch (6 pcs)
	795-0275531	V-Bagwell Side Fence (NCR Dark White)
	009-0006597	Screws M6 X 8 Rohs (4 pcs)
	795-0269931	Bagwell Cable Access Cover (NCR Dark White)
	497-0524425	Big Basket Skirt Assy
	795-0284931	Walmart V-Bagwell Module (NCR Dark White)
	497-0524426	Side Skirt (2 pcs)
	497-0524427	Front Skirt (2 pcs)
	497-0524428	Back Skirt (2 pcs)
	795-0275231	Corner Fence (NCR Dark White)
	795-0269831	Bagwell Camera Blank Cover (NCR Dark White) (2 pcs)
	009-0007087	Serrated Nut-Self Locking (Hex,M4,4.2) (4 pcs)
	009-0006593	Screws M4 x 10 (20 pcs)
	009-0006593	Screws M4 x 10 (15 pcs)
	007-7022121	Screw MA Flat Poz M4 8L (4 pcs)
	009-0006599	Screw Hex M6 x 12 MC Comb (7 pcs)
	006-8612492	Screw - ¼–20 x 0.750 in, Phillips Flat Head, 82 Degree, Machine Thread, Zinc-Plated Steel (4 pcs)
	497-0518274	Bumper - 1 Bag Rear, 2/3 Bag Door (2 pcs)
	795-0274831	Walmart, V-Bagwell Assembly, Left (NCR Dark White)
	497-0457054	Black Nylon Spacer 15 mm OD x 10.4 mm ID x 10 mm L (4 pcs)
	795-0275631	V-Bagwell End Fence (NCR Dark White)
	006-8611539	Nut- Hex, ½–13, 0.427– 0.448 Thick (6 pcs)
	497-0527202	Big Basket V-Bagwell Tray Assy
*	497-0423108	Instructions-Kit (Reference Sheet)

* Items marked with an asterisk are not called out on the image.
