7358-K591 V-Bagwell Module (Walmart Medium Gray)

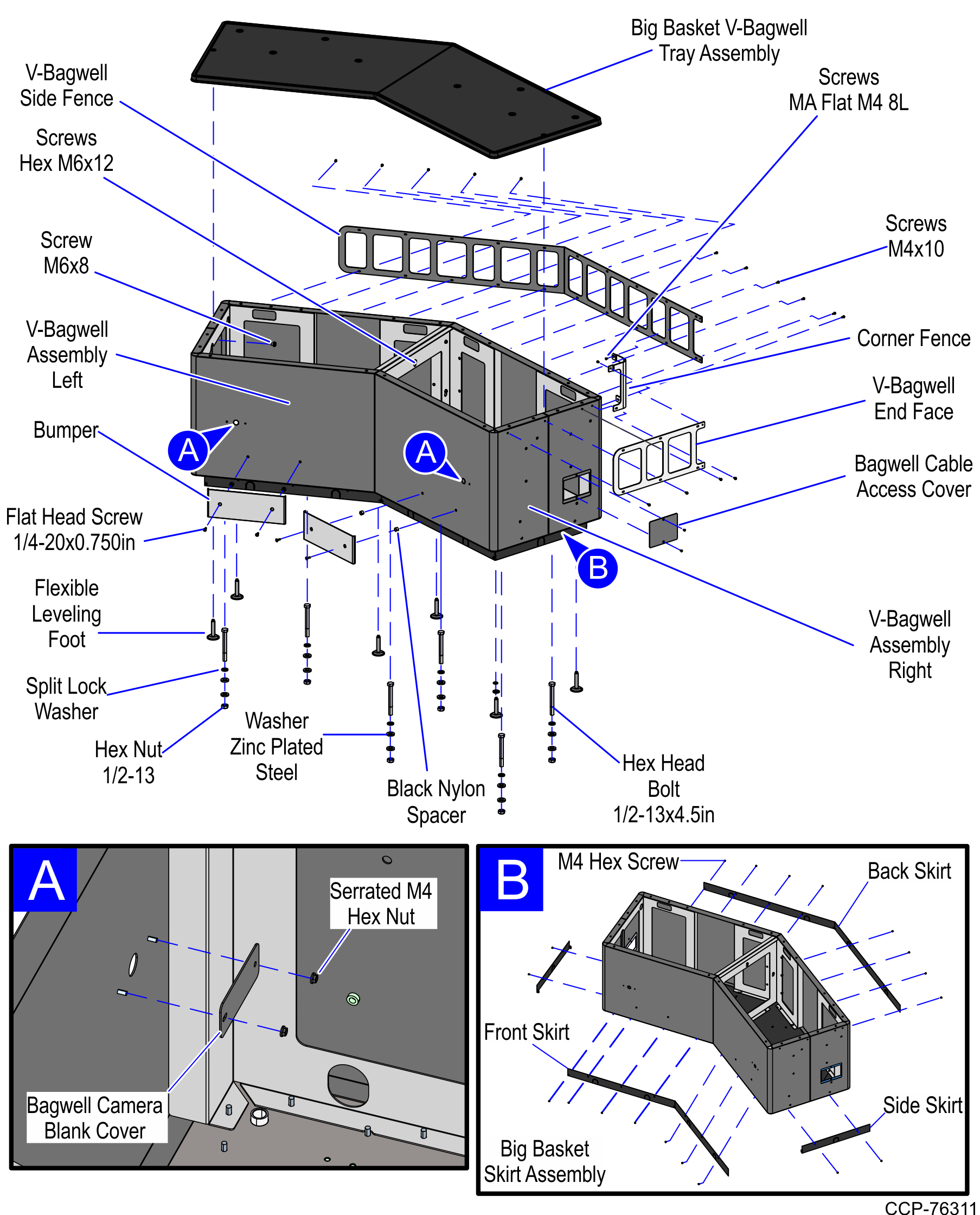

Note: For the purpose of illustration only, this image shows a unit with Left-hand (LH) orientation.
|
Part Number |
Description |
|
|---|---|---|
|
497-0527601 |
Kit - Large Basket Angled Module (Walmart Medium Gray) |
|
|
|
006-8627719 |
Split Lock Washer, Zinc-Plated Steel, ½ in Screw Size (6 pcs) |
|
|
006-8612443 |
Flexible Leveling Foot - 2 in Dia. (5/16 in Hex x 3.25 in Length) (6 pcs) |
|
|
006-8627720 |
Washer, Zinc-Plated Steel, ½ in Screw Size (12 pcs) |
|
|
795-0275628 |
V-Bagwell End Fence (Walmart Medium Gray) |
|
|
006-8625423 |
Bolt - Hex Head, 1/2-13 X 4.5", With Nylon Patch (6 pcs) |
|
|
497-0524425 |
Big Basket Skirt Assy |
|
|
009-0006597 |
Screws M6 X 8 Rohs (4 pcs) |
|
|
497-0524426 |
Side Skirt (2 pcs) |
|
|
497-0524427 |
Front Skirt (2 pcs) |
|
|
497-0524428 |
Back Skirt (2 pcs) |
|
|
795-0275228 |
Corner Fence (Walmart Medium Gray) |
|
|
795-0284928 |
Walmart V-Bagwell Module (Walmart Medium Gray) |
|
|
795-0275528 |
V Bagwell Side Fence (Walmart Medium Gray) |
|
|
795-0274828 |
Walmart, V-Bagwell Assembly, Left (Walmart Medium Gray) |
|
|
795-0274928 |
Walmart, V-Bagwell Assembly, Right (Walmart Medium Gray) |
|
|
009-0007087 |
Serrated Nut-Self Locking (Hex,M4,4.2) (4 pcs) |
|
|
009-0006593 |
Screws M4 X 10 (20 pcs) |
|
|
009-0006593 |
Screws M4 X 10 (15 pcs) |
|
|
007-7022121 |
Screw MA Flat Poz M4 8L (4 pcs) |
|
|
009-0006599 |
Screw Hex M6 x 12 MC Comb (7 pcs) |
|
|
006-8612492 |
Screw - ¼-20 x 0.750 in, Phillips Flat Head, 82 Degree, Machine Thread, Zinc-Plated Steel (4 pcs) |
|
|
795-0269928 |
Bagwell Cable Access Cover (Walmart Medium Gray) |
|
|
497-0518274 |
Bumper - 1 Bag Rear, 2/3 Bag Door (2 pcs) |
|
|
497-0457054 |
Black Nylon Spacer 15 mm OD x 10.4 mm ID x 10 mm L (4 pcs) |
|
|
795-0269828 |
Bagwell Camera Blank Cover (Walmart Medium Gray) (2 pcs) |
|
|
497-0527202 |
Big Basket V-Bagwell Tray Assy |
|
|
006-8611539 |
Nut- Hex, ½–13, 0.427–0.448 Thick (6 pcs) |
|
* |
497-0423108 |
Instructions-Kit (Reference Sheet) |
* Items marked with an asterisk are not called out on the image.
