Removing Tri–Light/Lane Light Assembly

To remove the Tri–Light/Lane Light assembly (with or without Camera), follow these steps:

1. Turn off the R6L Plus software and hardware systems. For more information, refer to NCR FastLane SelfServ™ Checkout (7358) Hardware Service Guide (BCC5–0000–5265).
2. Remove the screw securing the Tri–Light/Lane Light Assembly to the Tri–Light /Lane Light pole.

   Tri-Light/Lane Light Assembly



   Tri-Light/Lane Light with Camera Assembly

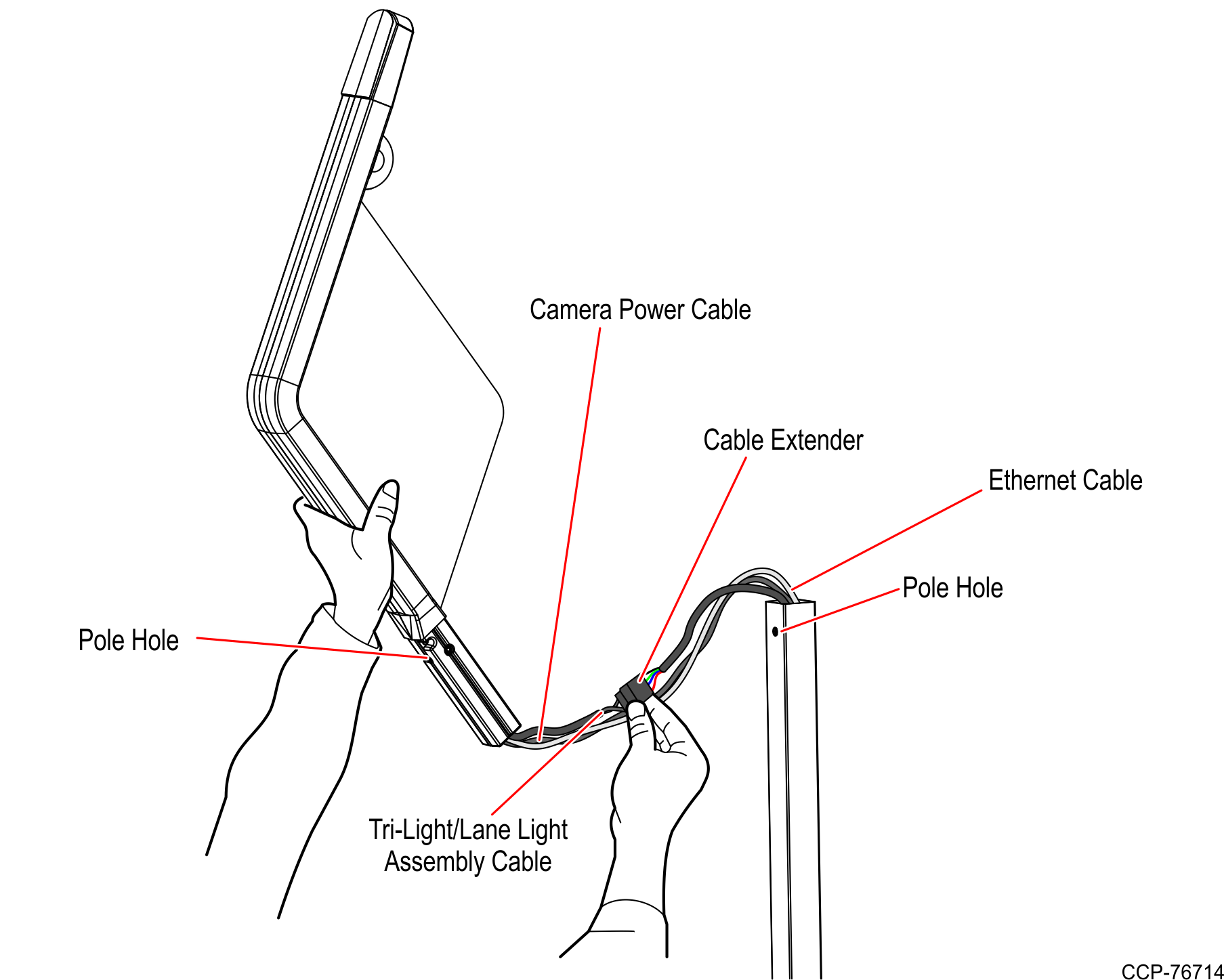

3. Lift the Tri–Light/Lane Light Assembly and then disconnect the cables.

   Tri-Light/Lane Light Assembly



   Tri-Light/Lane Light with Camera Assembly

   Note

   The assembly has cable ties that provide strain relief for the connectors. Cut these cable ties before disconnecting the connectors.
