Removing the 1-Bag Scale Tray Fence

To remove the 1-Bag Scale Tray Fence from the Bagwell, follow these steps:

Note

The procedure shows a unit with Left-hand (LH) orientation for illustration only.

  1. Remove four (4) flat-head screws to detach the fence from the Scale Tray.
    Note

    Mounting holes are the same for Left-hand (LH) orientation or Right-hand (RH) orientation.

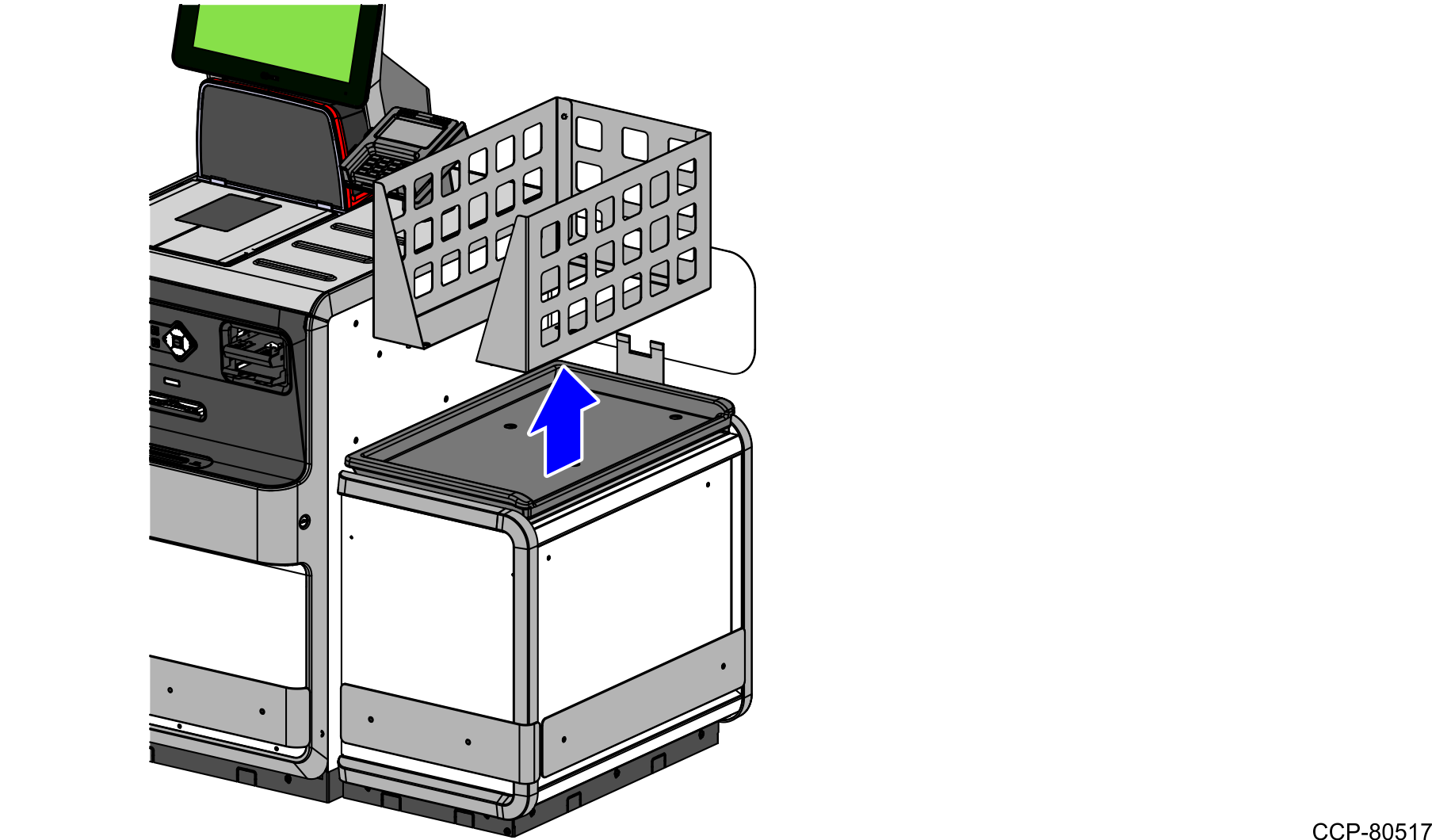

  2. Lift and remove the fence from the Scale Tray.
