7360-K066 Tri-Light/Lane Light with Camera Assembly

This publication provides procedures for installing a Tri-Light/Lane Light with Camera Assembly to an NCR SelfServ™ Checkout (7360) unit.

Kit Contents

Part NumberDescription
497-05252957360-K066 Tri-Light/Lane Light with Camera
  497-0524107Tri-Light/Lane Light with Camera Assembly
* 006-8614045Cable Tie - Nylon, 11 ⅜ in Long
  497-052545812V Power IP Cam with Input Belt DC Power Cable, 2.794 m
* 497-0506953Cable, Ethernet, 10/100/1000MBaseT, 8-wire, putty color 5000 mm
* 497-0525183Assy, Pack for SCO R6 Tri-Light with Camera
  497-0511101Lane Light Graphics Label – NCR Fastlane
* 497-0423108Instructions – Kit (Reference Sheet)

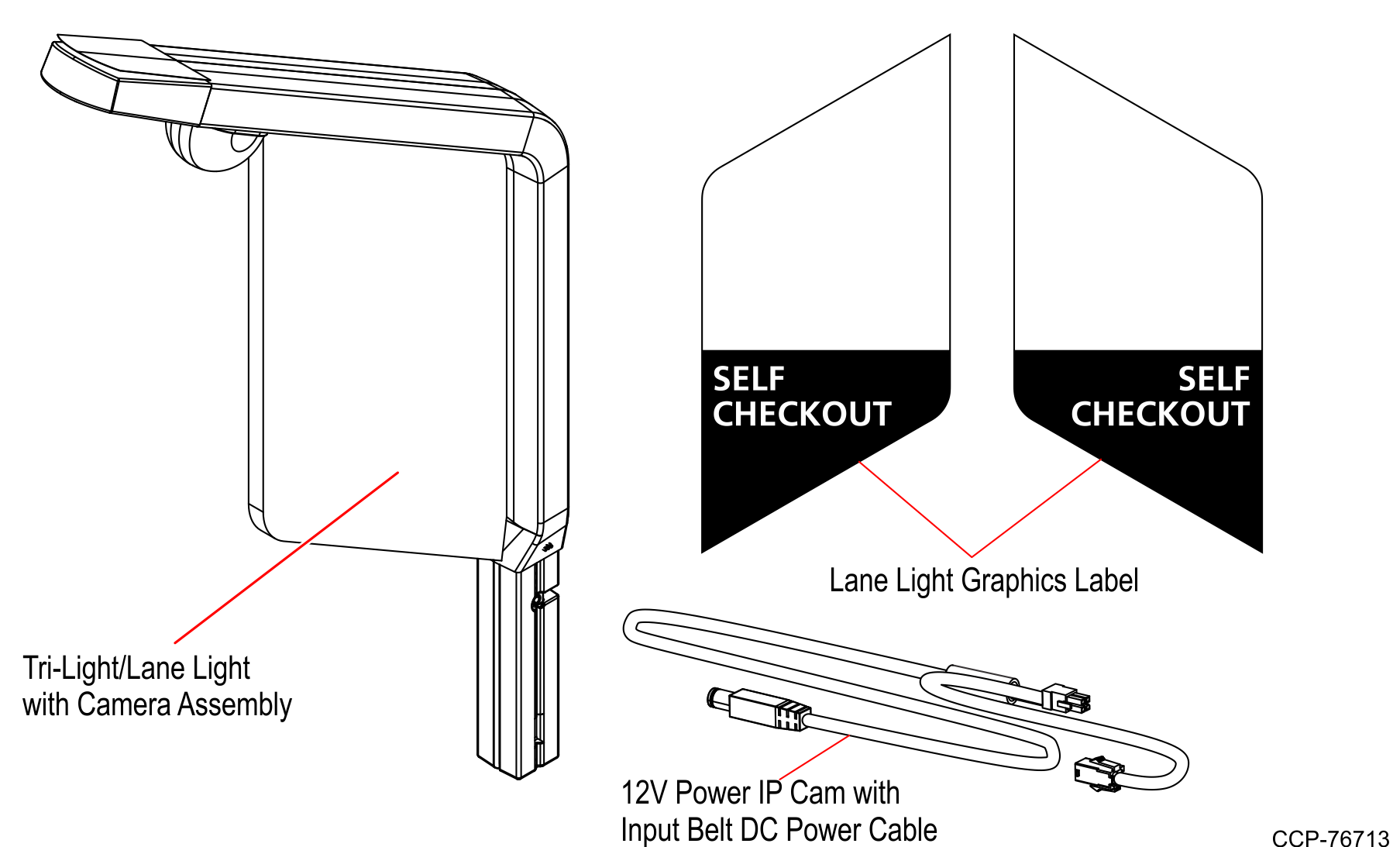

* Items marked with an asterisk are not called out on the image.
