7360-K071 Standard Tri-Light/Lane Light Assembly with Lane Light Label (Self Checkout)
This publication provides procedures for installing a Standard Tri-Light/Lane Light Assembly and Lane Light Label (Self Checkout) to an NCR FastLane SelfServ™ Checkout (7360).

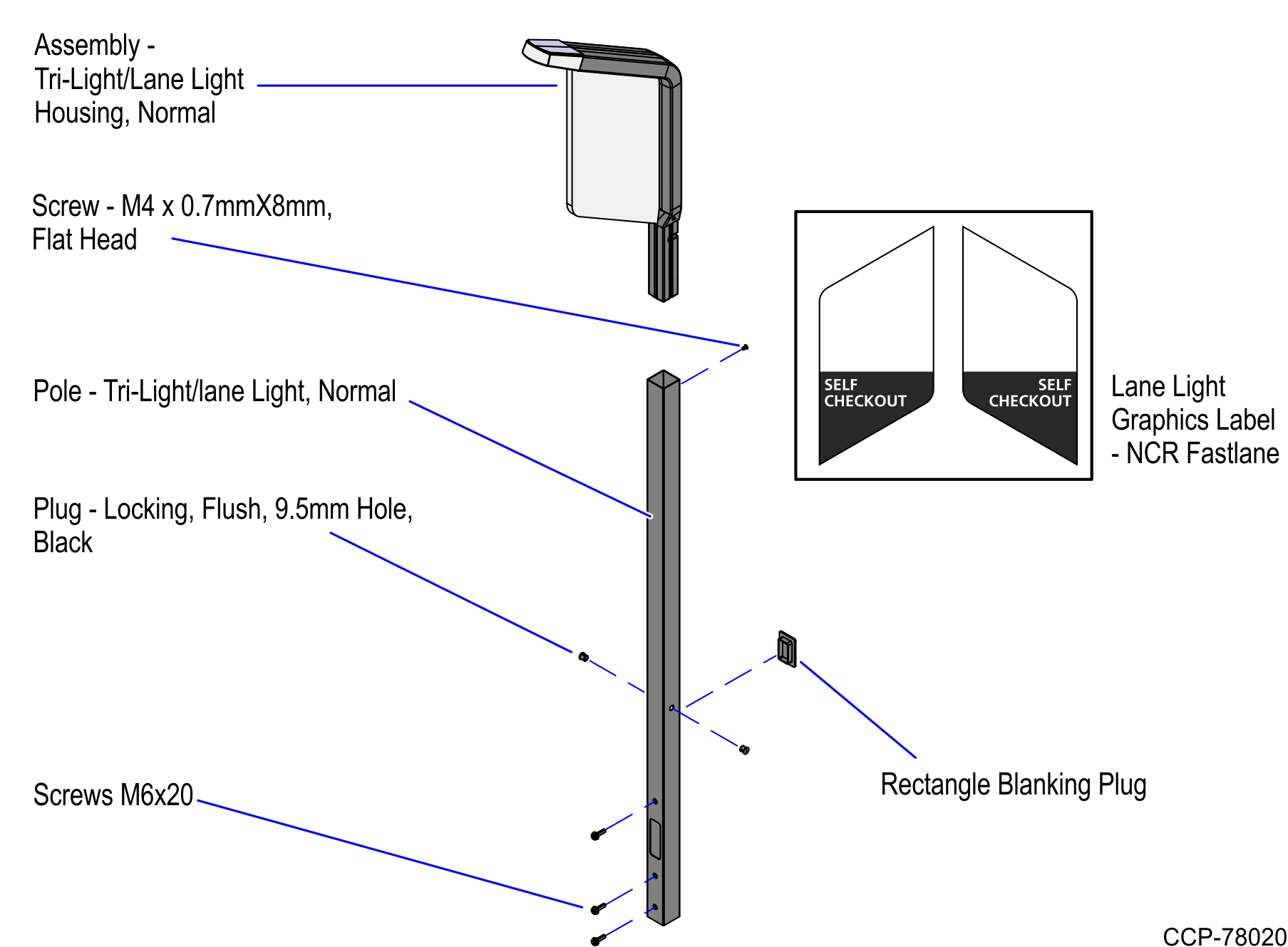

Kit Contents
| Part Number | Description | |
|---|---|---|
| 497-0527614 | 7360-K071 R6 Tri-Light, Standard Pole And Label "Self Checkout" Kit | |
| 497-0511101 | Lane Light Graphics Label – NCR Fastlane (3 pcs) | |
| 006-8624305 | Rectangle Blanking Plug (42X 23.8 mm) | |
| 497-0525777 | Assembly - Tri-Light/Lane Light Housing, Normal | |
| 006-8624498 | Screw - M4 x 0.7 x 8 mm, Flat Head, Stainless | |
| 006-8623599 | Plug – Locking, Flush, 9.5 mm Hole, Black (2 pcs) | |
| 497-0523835 | Cable - Trilight And Lane Light Extender | |
| 009-0006598 | Screws M6 x 20 (3 pcs) | |
| 497-0511356 | Pole - Tri-Light/Lane Light, Normal | |
| * 497-0423108 | Instructions - Kit (Reference Sheet) | |
* Items marked with an asterisk are not called out on the image.
